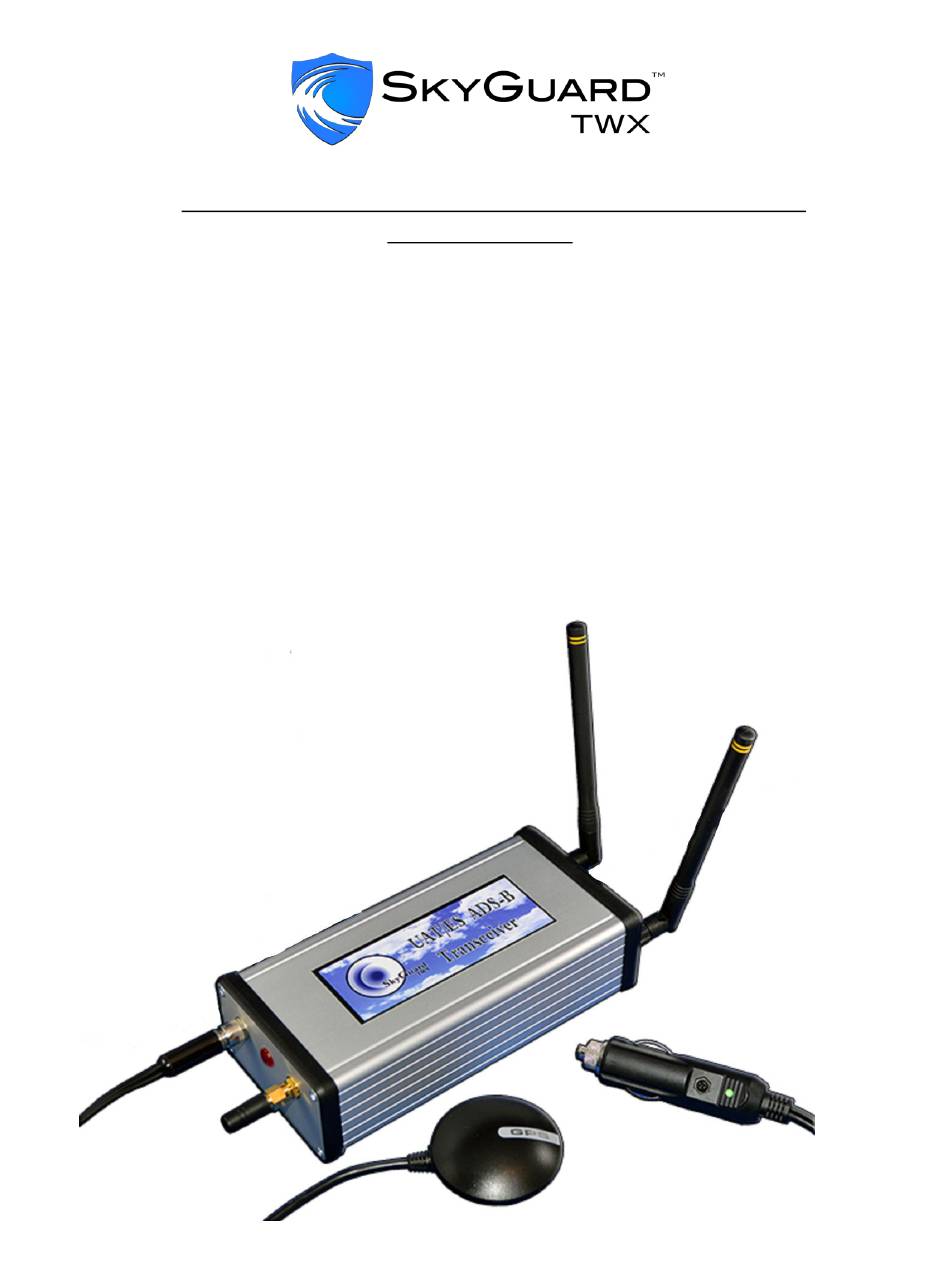

SkyGuardTWX Vision-Pro "978 UAT/1090 ES" ADS-B

Receiver Setup

This Receiver is a fully integrated 978mhz UAT and 1090mhz ES radio receiver along
with a WAAS GPS and WiFi transmitter. The unit is powered on by plugging the
provided DC power adapter into any aircraft power socket that provides either 12v or 24v
DC @ 1 amp. There are 3 antennas (2 long and 1 short) and a GPS receiver that must be
receiver. The GPS receiver "puck" is plugged into
installed
prior to powering up the
the ADS-B receiver with the "arrow" on the GPS plug pointing up. The 2 longer black
ADS-B receiver antennas is attached to the outside coax connectors adjacent to and at
same end as the GPS plug. As looking at the coax end plate, the left connector is the
978mhz receiver and the right connector is the 1090mhz receiver. The shorter WiFi
antenna and the DC power adapter plug are connected to the opposite side of the receiver.

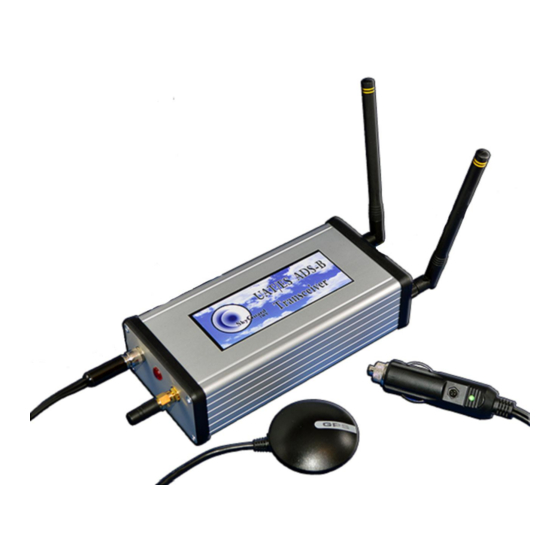

See photo just below:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWX Vision-Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SkyGuard TWX Vision-Pro

  • Page 1 SkyGuardTWX Vision-Pro “978 UAT/1090 ES” ADS-B Receiver Setup This Receiver is a fully integrated 978mhz UAT and 1090mhz ES radio receiver along with a WAAS GPS and WiFi transmitter. The unit is powered on by plugging the provided DC power adapter into any aircraft power socket that provides either 12v or 24v DC @ 1 amp.
  • Page 2 After all antennas, GPS, and power adapter are connected, power up the Receiver. If using an iPad or iPhone for your display device, on your Apple device, go into “Settings” and turn ON Airplane mode. While in “Settings”, turn on WiFi and after a brief search, a WiFi hot spot will appear showing “SkyGuardTWXxx”...
  • Page 3 public/uncontrolled environment. WARNING: This receiver is to be used to improve pilot situational awareness only and as a navigational aid. It is not intended for primary navigation use in IFR or IMC flight conditions. SkyGuardTWX LLC is not responsible for the receiver’s end use and will not be held liable for any events occurring from the use of the receiver.
