Summary of Contents for Jade 32J

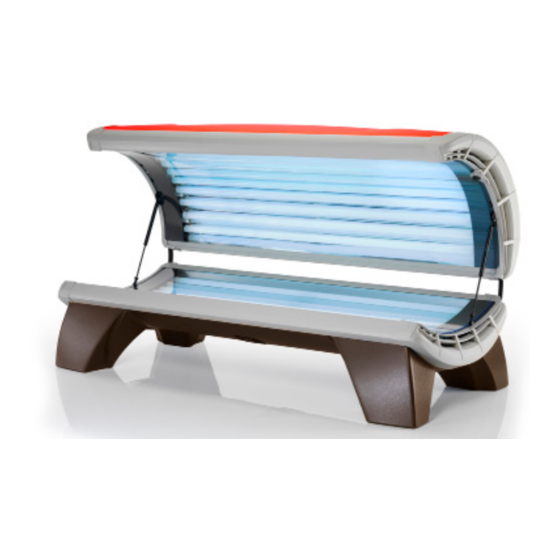

- Page 1 User Manual Model 32J ProSun Jade 32 120V Jade 32 2 0 M I N U T E S MARK76J0002 Rev 3...
- Page 2 Contact Information ® C O N G R A T U L A T I O N S on your ProSun purchase! Please make sure you read this manual carefully before using this equipment and specifically the maintenance schedule. If you have any questions please contact ProSun directly. ProSun International LLC 2442 23rd Street North Saint Petersburg FL 33713...
-
Page 3: Table Of Contents
Table of Contents Important Customer Information ................5 Who Should Use, Read, & Understand this Manual ........5 Indications For Use …………..…............5 Intended Use ..…........….......... 5 Warning Signs & Symbols …................. 5 Preparing the Product For Use ................8 Export …....................... - Page 4 How to Operate the Equipment ................. 35 Choosing the Correct Exposure Time …………………………………………… 35 Normal Equipment Operation & Software …………………………………………… 36 Operating Modes ………………………………………………………………..36 Standby Mode ………………………………………………………...... 36 Tanning Mode ………………………………………………………...... 36 Cool Down Mode ………………………………………………………………..36 Service Mode ………………………………………………………………………… 36 Starting the Tanning Session ……………………………………………………..
-
Page 5: Important Customer Information
Important Customer Information Who should use, read and understand this manual: • Owners - Owners are people that have this equipment in their business and have read and fully understood this whole user manual. The owner is responsible for ensuring that any other person who uses this equipment has also read and understood this user manual and labeling on the equipment. - Page 6 High Voltage exists and is dangerous for human contact. UV Radiation hazard for Human Health Caution Symbol means to proceed with caution and follow instructions careful ESD-Sensitive devices, do not touch without using necessary proper precautions. Type B Applied Parts Symbols found on equipment and packaging: Follow and read instructions thoroughly prior to using equipment.
- Page 7 Protective earth connections. Recyclable Material Polystyrene Cardboard Mixed Paper Wood Waste of electrical and electronic equipment must not be disposed as unsorted municipal waste. It must be collected separately, and must be disposed as per local regulations. Alternating Current. Single Phase MARK76J0002 Rev 3...
-
Page 8: Preparing The Product For Use
Preparing the Product for Use This equipment is in conformity with FDA standards 21 CFR 1040.20 for sunlamp products. Export: The device in this manual is intended for use in the United States and Canada. If this equipment is exported to other countries, other standards may apply and not all information in the operator manual may be applicable. -
Page 9: Delivery
Delivery: Once equipment is delivered make sure proper temperatures, humidty and atmospheric pressure are in place. The following items are included in the delivery: • Tanning equipment • Protective goggles • Tanning bed cleaner • All parts in assembly manual •... - Page 10 Installation can present a Danger with electrical shock or burns, only authorized personnel should install the equipment. Initial installation should be done by a ProSun certified technician. As the equipment owner it is your responsibility to ensure that correct electrical DANGER! requirements are met and followed.
-
Page 11: Comissioning Of The Tanning Equipment
Commissioning of the tanning equipment The equipment is initially commissioned by a certified ProSun technician. The device will be properly assembled and handed over ready for us. In order to properly commission the tanning equipment, the business owner must ensure that the location is ready prior to the equipment being installed. -
Page 12: General Safety Information
General Safety Information General Safety Notes: Any adult with any of the below issues should not use this tanning equipment. If you are unsure consult your doctor prior to use. Contraindication: This sunlamp product is contraindicated for use on persons under the age of 18 years. - Page 13 Allow at least 48 hours to pass between each tanning session. Tan based on the exposure sticker on the unit or in this manual. Skin Type I should not tan. As an owner you must properly instruct all users on using the exposure table located on the front of the bed and only tanning for the minutes based on their skin type.
- Page 14 This tanning bed is an over the counter tanning device that emits ultra violet light in the UVB and UVA region of the spectrum intended for the cosmetic tanning of the human skin in adults. Only one user should tan in the unit at a time. Wear protective eyewear during the duration of the sesion to protect the eyes against UV radiation.
-
Page 15: The Tanning Process
The Tanning process: The tanning unit you have purchased is designed to concentrate optimal levels of UVA, in conjunction with very low percentages of UVB, on the outermost layers of the skin, so as to stimulate the production of Melanic pigment, which is slightly pink in its dormant state, these causes it to turn brown after excretion. -
Page 16: Tanning Sensitivity
Tanning Sensitivity Before using a tanning device always check with your doctor first. *The following may increase skin sensitivity: • Perfumes and colognes containing furocoumarins. • Compounds from natural products such as plants and fruits (their natural oils can sensitize the skin to sunlight. -
Page 17: Equipment Components & Description
Device Description 1. Ballasts - your unit may have different ballasts than shown in image 2. Canopy cover plate 3. Canopy Acrylic 4. Not available for Jade models 5. Shocks 6. Bench Acrylic 7. Bench 8. Side Legs 9. Front Skirt (optional) -
Page 18: Options For Device
Options for Device The below items are options for this device and may not be included in your unit. These options do not affect the normal functioning of your device. 1. Body cooling Fan (optional) 2. Smart Design for easy air flow 3. -
Page 19: Lamp Configuration
Part Number Protech II Intensive 75" inches 110W LAMP7670067 R-UVA 110w HO 1.9m ProTech II Intensive 71" inches 100W LAMP7670063 R-UVA 100W ProSun Jade - Spare parts Acrylic Canopy ACRY6012165 Acrylic Bench ACRY6012180 Shocks GASP6014349 Goggles ACCE2501629 MARK76J0002 Rev 3... -
Page 20: Dimensions
Dimensions 47" 14" L = 83" 35" Side view Recommended Room Size The below room size is a recommendation for optimal tanning output. MARK76J0002 Rev 3... -
Page 21: Signs And Labels On Equipment
Signs and Labels on the Equipment The signs and labels below give important information on components on the equipment. Be sure to always have these labels on your equipment, if they become ilegible or are missing contact ProSun for replacement. Labels on units are differently sized than in descriptions below. - Page 22 2. Jade Label The Jade label is attached to the front of the unit on the bottom skirt/cover plate on the outside of the unit. 3. 18 and Older Label Age warning label stating no one under the age of 18 should use this product. This label is located on the front of the unit visible to the user.
- Page 23 6. Danger Label 5. Warning Label This label is located on the front of the This label is located on the front of the unit unit on the door panel, visible to the on the door panel, visible to the user. user.
- Page 24 8. Serial Label The serial label is located on the back of the unit and is the identifier for the unit. This includes the serial number and conformity marking. 9. Read information Carefully This label is located on the back of the unit to ensure people read the manually and information carefully.
-
Page 25: Technical Data
Technical Data Electrical Specifications ProSun Jade 32 Jade 32 Power consumption rating: 17 Amp Rated Voltage: 120V ~ 17A 60Hz Rated Fuses: 20 amp 2-pole Continuous Operation: Continuous operation for a maximum of 20 minutes. Classification: Type B Applied Parts... -
Page 26: Electrical Requirements
Volt 3 Hertz Operating Operating Amps 1 Amps 3 ProSun Jade 32J 20 Amp 120V ~ 60 Hz 17 Amp Connecting a 120v unit to a 220V power source constitutes an automatic NULLIFICATION of the manufacturers factory warranty, because it could cause damage to the unit’s system. -
Page 27: Electrical Connections
Electrical Connections Live Components Risk of fatal injury due to electrical shock when touching live parts. DANGER! Risk of electrical Shock To avoid the risk of electrical shock, this equipment must only be connected to a supply mains with protective earth. WARNING! Both the power supply and the related connection work must comply with national standards. -
Page 28: Tanning Bed Standards
Guidance and Manufacturer’s Declaration - Electromagnetic Emissions The ProSun Jade Model 32J is intended for use in the electromagnetic environment specified below. The customer or the user of the ProSun Jade Model 32J should assure that it is used in such an environment... - Page 29 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The ProSun Jade Model 32J is intended for use in the electromagnetic environment specified below. The customer or the user of the ProSun Jade Model 32J should assure that it is used in such an environment.
- Page 30 Non life supporting ME Equipment The ProSun Jade Model 32J are intended for use in the electromagnetic environment specified below. The customer or the user of the ProSun Jade Model 32J should assure that it is used in such an environment.
- Page 31 The ProSun Jade Model 32J are intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the ProSun Jade Model 32J can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the ProSun Jade Model 32J as recommended below, according to the maximum output power of the communications equipment.
-
Page 32: Before Your Tanning Session
Before your tanning session Check for any conditions mentioned in the manual that may prevent you from using the tanning equipment. Make-up and cosmetics Do not wear make-up when tanning. Clean skin absorbs the UV Light properly. Remove all make-up prior to tanning. Make-up clogs the pores in your face. The UV light from a tanning device re-opens these clogged pores. -
Page 33: After The Tanning Session
After the tanning session Cleaning and Disinfection All parts of the equipmnent that come in contact with the user must be cleaned and disinfected after each session. Infections can be transferred through skin contact. The following items should be cleaned after each session: •... -
Page 34: Operation Of The Equipment
Operation of Equipment Obligations of the business operator • As the business operator you are responsible for informing the user of the risks of tanning. • All danger and safety labels should be attached to the equipment and clearly visible to the user. -
Page 35: How To Operate The Equipment
How to operate the equipment Prior to operating the equipment check that the unit has been cleaned/disinfected and check for any damage to the acrylics. No other people should be in the vicinity of the equipment when in use, especially no children under the age of 18. -
Page 36: Normal Equipment Operation & Software
Equipment Operation and software Before turning on the equipment make sure you have proper warning signs at your location. We recommend permanently placing a Warning sign on the wall close to the tanning bed such as the one below: WARNING •... -
Page 37: Starting The Tanning Session
Tanning Mode The following description is for a unit that has all possible features, some of these features may not be available for your unit or market. DANGER! Excessive dose of UV radiation Excessively prolonged tanning sessions may cause severe damage to skin and eyes. -
Page 38: Stopping The Tanning Session
Stopping the Tanning Session If the time in the session runs out naturally then the unit will go into a 3 minute cool-down. However if you need to stop the tanning session prior to end of the sesion you can do so by hitting the START/STOP Button. - Page 39 To Program your Onyx display Service Mode When the unit is in standby mode, you can enter into the service or maintenance parameters. Not all parameters may be applicable for your equipment. NOTE: Start with a blank display. 1 To enter program mode: Push B and D simultaneously for 10 seconds. Display starts blinking 01 20 2 To put in remote: Push button C and bring time down to 00 push button A to enter.
-
Page 40: Customer Concerns
Customer Concerns Failure to use protective eyewear may result in severe burns or other eye injury. If discomfort develops, stop using the tanning equipment immediately and seek medical advice from your physician. • Do not continue to use the tanning device if unexpected effects, such as itching, occur within 48 hours after the first tanning session. -
Page 41: Storing The Device
Storing the Device Decommissioning your tanning unit The equipment must be disconnected from the power in order to temporarily or permanently decommision it. You must follow legal disposal requirements when you are going to permanently dispose of your unit. Storage Store the equipment in a dry, frost free location with a stable temperature. -
Page 42: Control Functions
Control Functions Function Description Additional Information Start Use this button to start the tanning session. Stop Use this button to stop or pause the tanning session. Minus Decrease tanning time Decrease cooling fan speed Plus Increase tanning time Increase body cooling fan speed Face Tanner Use this button to turn off the facial lamp... -
Page 43: General Operation
Operation Note: Typically Stand-alone mode is for residential use and Remote mode is for commercial use All units come standard in remote-mode Start Stand-alone mode: By depressing start once the “+ and –“ buttons can be used to set the tanning time. Pressing for a second time will start the unit. - Page 44 Stand-alone mode: a. Reduce tanning time b. Reduce body cooler speed Coin mode: a. Reduce body cooler speed Stand-alone mode: a. Increase tanning time b. Increase body cooler speed Coin mode: a. Increase body cooler speed Face Switch the face tanner on and off Switch the body cooler on and off MARK76J0002 Rev 3...
-
Page 45: Error Messages
Error messages Display messages: Overrule error (Switch print and/or display print defective) Filter glass defect (Filter glass of the face tanner is broken or glass protection is defective) or unit is overheated Communication error (No communication between switch print and display print) Note: When you receive one of the above error messages on your LCD display, you should stop using the unit and unplug it. -
Page 46: Care & Maintenance
Care and Maintenance The Care and Maintenance in this section provides information on how to properly care for your equipment after each use and during the lifespan of the unit. It will help provide you with basic troubleshooting and maitenance questions. If your tanning bed fails to operate properly, please review the following steps before calling for service. -
Page 47: Basic Care Maintenance
Basic Care Maintenance Basic Care Maintenace and service of your equipment play a major role in maintaining the units performance and appearance over the period of its useful life. Compliance at the intervals specified for your unit are absolutely necessary to ensure the proper operation of the equipment. -
Page 48: Cleaning & Disinfecting Acrylics
NOTE: For thorough cleaning and disinfection, the product you are using has to remain in contact with the surface that is being cleaned and disinfected for a specific amount of time, as mentioned on the instructions of the product. The specifc amount of time will depened on the type of cleaner/disinfectant that you are using. -
Page 49: Cleaning Plastic Surfaces
The below basic maintenance can be done by an unskilled person. Cleaning Plastic Surfaces: For cleaning plastic surfaces we recommend using regular soap and warm water. Never use an aggresive cleaning agent that contains alcohol or essential oils. Using inappropriate cleaners may cause permanent damage not covered by warranty. -
Page 50: Troubleshooting Guide
Troubleshooting guide PROBLEM PROBABLE CAUSE POSSIBLE SOLUTION Unit is Activated but nothing • No Power to the unit. • Check to see if unit is connected to happens • Timer clears after priming the power source. • Remote timers do not work. •... -
Page 51: Replacement Components
Replacement of Components WARNING: Before doing any repair or replacement work on this machine, ALWAYS disconnect the power at the main circuit breaker(or, if the main power cable has a wall plug, pull it out). WARNING! IMPORTANT: Only use manufacturer-authorized replacement components. Failure to do so many void warranty. -
Page 52: Removing Acrylics
Replacing the Acrylics Bend back the plastic grey strip Acrylic tool At the end of the bench or canopy you will find an acrylic tool. Remove it from the unit and use this to slide under the acrylic and lift it up gently. Pull back the acrylic sheet by hand first, then use the acrylic tool to remove the rest of the sheet. -
Page 53: Replacing The Lamps
Replacing the Lamps Once you have removed the acrlic you will want to unscrew and remove the metal lamp cov- covers/ strips. Then with gloves on to protect the lamps from oils, twist the lamp and remove. When replacing the lamp twist the lamp back into position. Listen for 2 clicks to ensure the lamp is securely fastened. -
Page 54: Assembly Introduction
Assembly Introduction Required for assembly (not included): • 1 wrench to tighten bolts *Make sure to write the Serial Number (located on the back of the canopy) down on the previous page and store the manual somewhere you can easily access. The Serial Number is MANDATORY to order parts for your unit, as well as, any customer service calls. -
Page 55: Included Parts
Included Parts Make sure all parts are included before you begin. 2 Combi Arms FAMS6012171 1 Plastic Front Skirt (optional) 6 Combi Arm Screws bronze - CVPL 6012336 FASN1508828 red - CVPL 6513606 white - CVPL 6525156 2 Security Plates FAMS6012236 1 Gas Shock 4 Security Plate Screws... -
Page 56: Assembly
Assembly Carefully remove the bench from box and keep it face down. *Optional Front Skirt (if you do not have a plastic front skirt go to step 3) Retrieve 1 Plastic front skirt (located in canopy box) Remove the screw from the leg. bench Insert plastic front skirt and screw in place. - Page 57 Flip bench over. Retrieve 2 Combi Arms 6 Combi Arm Screws Remove the end cap filler. bench end cap filler combi arm Insert combi arm into bench and secure with screws. Repeat these steps on other side. MARK76J0002 Rev 3...
- Page 58 Remove the canopy from the box. Remove the end cap filler as done previously with the bench. While holding the canopy on each end attach it to the bench by sliding it onto the combi arms end cap filler canopy combi arm bench MARK76J0002 Rev 3...
- Page 59 Retrieve 2 security plates 4 security plate screws Once the canopy is attached to the bench, secure the security plate into place with security plate screws. Repeat these steps on other side. MARK76J0002 Rev 3...
- Page 60 Retrieve 2 Gas shocks 4 Gas shock pivots 4 security clips While the canopy is in an open position, insert gas shock into the bench and into third hole on the canopy. Then insert gas shock pivots and secure with a security clip. If the canopy rises spontaneously move gas shock to hole 2...
- Page 61 The four end cap fillers that were removed need to be inserted back into the bench and canopy. End cap filler End cap filler MARK76J0002 Rev 3...
- Page 62 *Optional Deco Shield Retrieve 1 Deco shield 2 deco shield screws 2 deco shield washers 2 deco shield nuts Insert the deco shield in between the canopy and bench. screw washer nut Secure by attaching the decor shield to combi arm. MARK76J0002 Rev 3...
- Page 63 On the back of the canopy you will see three chords: Plug "A" into your wall outlet (or into optional buck booster) Plug "B" in the bench Plug "C" is not Applicable for this unit. 120 volt 30 Amp plug for Jade MARK76J0002 Rev 3...
-
Page 64: Warranty
Warranty LIMITED WARRANTY EFFECTIVE June 2015 1. Warranty Period: PROSUN warrants light equipment manufactured or imported by it, provided it is still owned and operated by the original purchaser, to be free from defects in material and workmanship under normal use and service, for a prorated period of twelve (12) months from the date of delivery to the original Purchaser. - Page 65 6. Exclusivity of Warranty: This warranty is the only warranty made by PROSUN and may only be modified or amended by a written instrument signed by a duly authorized officer of PROSUN. PROSUN’s sole and exclusive liability and Purchaser’s sole and exclusive remedy under this warranty shall be, at PROSUN’s option, to repair or replace, to the extent available on a prorated basis, any such defective Products.
- Page 66 ProSun International, LLC 2442 23rd Street North St Petersburg, FL 33713 www.ProSun.com 800-874-2776 Contraindication: This Product Is Contraindicated For Use On Persons Under The Age Of 18 Years. “Contraindication: This Product Must Not Be Used If Skin Lesions Or Open Wounds Are Present.” “Warning: This Product Should Not Be Used On Individuals Who Have Had Skin Cancer Or Have A Family History Of Skin Cancer.”...
