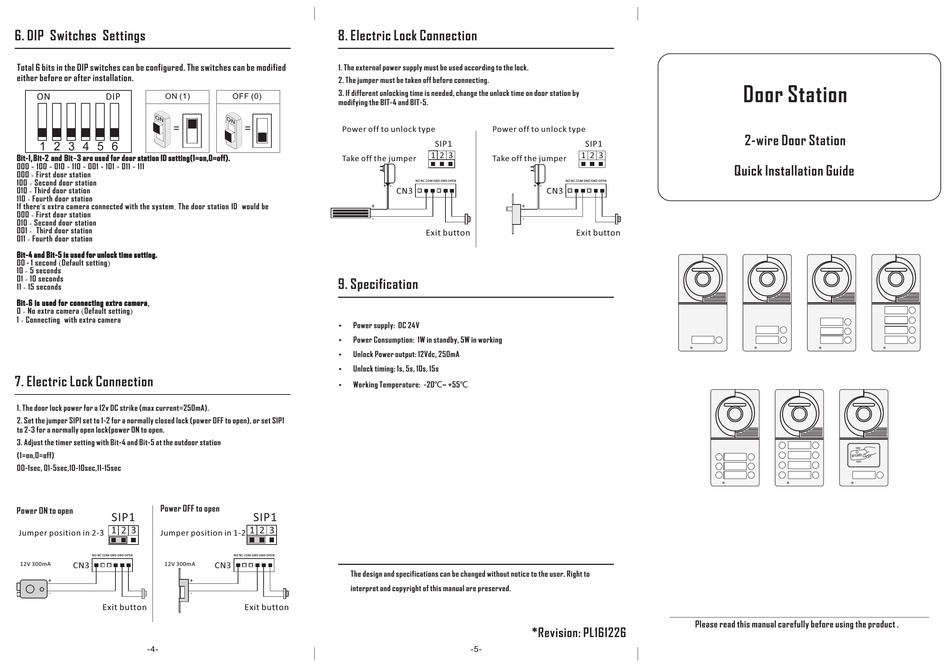

FP-TECH FP-619 Quick Installation Manual

6. DIP Switches Settings
Total 6 bits in the DIP switches can be configured. The switches can be modified
either before or after installation.
ON DIP
ON (1)
O N
=
1 2 3 4 5 6
Bit-1,Bit-2 and Bit-3 are used for door station ID setting(1=on,0=off). Bit-1,Bit-2 and Bit-3 are used for door station ID setting(1=on,0=off).
000 - 100 - 010 - 110 - 001 - 101 - 011 - 111
000 - First door station
100 - Second door station
010 - Third door station
110 - Fourth door station
If there's extra camera connected with the system. The door station ID would be
000 - First door station
010 - Second door station
001 - Third door station
011 - Fourth door station
Bit-4 and Bit-5 is used for unlock time setting.
00 - 1 second (Default setting)
10 - 5 seconds
01 - 10 seconds
11 - 15 seconds
Bit-6 is used for connecting extra camera.
0 - No extra camera (Default setting)
1 - Connecting with extra camera
7. Electric Lock Connection
1. The door lock power for a 12v DC strike (max current=250mA).
2. Set the jumper SIP1 set to 1-2 for a normally closed lock (power OFF to open), or set SIP1
to 2-3 for a normally open lock(power ON to open.
3. Adjust the timer setting with Bit-4 and Bit-5 at the outdoor station
(1=on,0=off)
00-1sec, 01-5sec,10-10sec,11-15sec
Power OFF to open
Power ON to open
SIP1
1 2 3
Jumper position in 2-3 Jumper position in 1-2
NO NC COM GND GND OPEN
CN3
12V 300mA 12V 300mA
+ +
- -
Exit button
-4-
8. Electric Lock Connection
1. The external power supply must be used according to the lock.
2. The jumper must be taken off before connecting.
3. If different unlocking time is needed, change the unlock time on door station by
OFF (0)
modifying the BIT-4 and BIT-5.
O N
=
Power off to unlock type
Take off the jumper
-
+
+
-
9. Specification
Power supply: DC 24V
Ÿ
Power Consumption: 1W in standby, 5W in working
Ÿ
Unlock Power output: 12Vdc, 250mA
Ÿ
Unlock timing: 1s, 5s, 10s, 15s
Ÿ
Working Temperature: -20℃~ +55℃
Ÿ
SIP1
1 2 3
NO NC COM GND GND OPEN
CN3
The design and specifications can be changed without notice to the user. Right to
interpret and copyright of this manual are preserved.
Exit button
Power off to unlock type
SIP1
1 2 3
Take off the jumper
NO NC COM GND GND OPEN NO NC COM GND GND OPEN
-
+
CN3 CN3
+
-
Exit button Exit button
*Revision: PL161226
-5-
Door Station
2-wire Door Station
SIP1
1 2 3
Quick Installation Guide
Please read this manual carefully before using the product .
