- Page 1 medemagroup 1533-2007-Q ver. 1.0.1 - October 2019...
- Page 2 Medema Production A/S 2 of 16 Quick guide 1533-2007-Q Version 1.0.1/2019...
-
Page 3: Table Of Contents
Designations functions ................7 General care and maintenance ..............8 Charging .....................9 Troubleshooting ..................10 Serial number................... 11 Driving the Mini Crosser X-Joy ............. 11 Getting on and off ................. 11 Joystick lock / unlock ................12 General safety advice................13 When driving in traffic ................14 Brakes.......................15... -
Page 4: Introduction

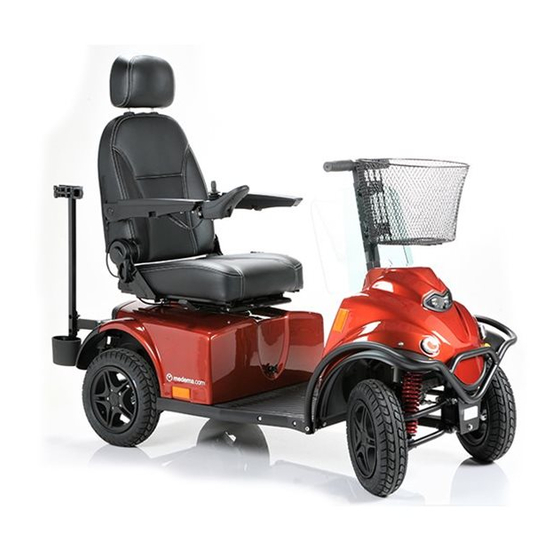

Medema Production A/S Introduction Congratulations on your new Mini Crosser X-Joy electric mobility scooter. You have now taken possession of an electric mobility scooter developed for outdoor driving by active users. It is what is called a Class C vehicle in accordance with the European classification of electric scooters. -
Page 5: Designations
Medema Production A/S Designations The following designations refers to the explanation later in the instruction book. Headrest Control panel Release handle Support handle forw. / backw. Joystick Charging Basket socket Indicator Handbrake lights Seat rotation Eye for restraints Electric disengagement Thermal fuse Indicator lights... -
Page 6: Designations Joystick
Medema Production A/S Designations Joystick P&G R-net Start/stop-button Battery indicator Driving profile Warning blinkers Mode LED Light Mode button (electric functions) Blinkers left/right Mode LED Joystick Speed increase / decrease Horn 6 of 16 Quick guide 1533-2007-Q Version 1.0.1/2019... -
Page 7: Designations Functions
Medema Production A/S Designations functions P&G R-net Press the button 1 to start the Mini Crosser. Wait until the battery indicator is stable (3-5 sec). Battery indicator Show a more precis indication after approximately one minute of driving. When all the LED is lit, the batteries are fully loaded. -
Page 8: General Care And Maintenance
Medema Production A/S General care and maintenance A Mini Crosser X-Joy does not require much maintenance. It should be kept in a generally good condition, however. The following should be checked regularly: • Tyre pressure (if pneumatic tyres are fitted) •... -
Page 9: Charging
Medema Production A/S Charging Charging Plug the cable into the control box on the scooter Plug the charger into the outlet or switch it on Use the indicator lights on the charger to check that charging has started. When charging has finished, switch off or unplug the charger, and then remove the charger cable from the control box. -
Page 10: Troubleshooting
Medema Production A/S Troubleshooting When experiencing an electronic fault a number of LED in the battery indi- cator will light up. Below you can see the possible cause, and suggested action that you can try before calling the authorised service agent. Possible cause 1 LED The batteries needs charging. -
Page 11: Serial Number
It is important to learn a safe technique for getting on and off the Mini Crosser. In general the following method should be followed: • Make sure that the Mini Crosser X-Joy is turned off. • Make sure that the brake is on. (Lever for disengaging motor in top position.) •... -
Page 12: Joystick Lock / Unlock
Medema Production A/S Joystick lock / unlock X-Joy can be locked, so unauthorized persons cant use it. • Turn on the Joystick • Push and hold the on/off button. After 1 sec, you will hear a short audio signal. • Let go of the on/off button. -
Page 13: General Safety Advice
Medema Production A/S General safety advice • Make sure that the backrest is upright and the seat is as low as possible. • Positioning belts are recommended if the user is unable to maintain a good driving posture independently. • Adjust your driving to road conditions. -
Page 14: When Driving In Traffic
Medema Production A/S When driving in traffic Be particularly aware of the following when driving in traffic: • The Mini Crosser is a low vehicle and not always easy for other road users to see. Make quite sure that other road users have seen you before driving onto the highway. -
Page 15: Brakes
Medema Production A/S Brakes There are three braking systems on the Mini Crosser: • Motor brake - adjusts vehicle speed also when going downhill. • Magnetic brake - the magnetic brake is automatic and engages when the Mini Crosser stops. In an emergency, the Mini Crosser can be stopped instantaneously by turning of the joystick. - Page 16 medemagroup...
