Summary of Contents for Intewa RAINMASTER Eco-FS

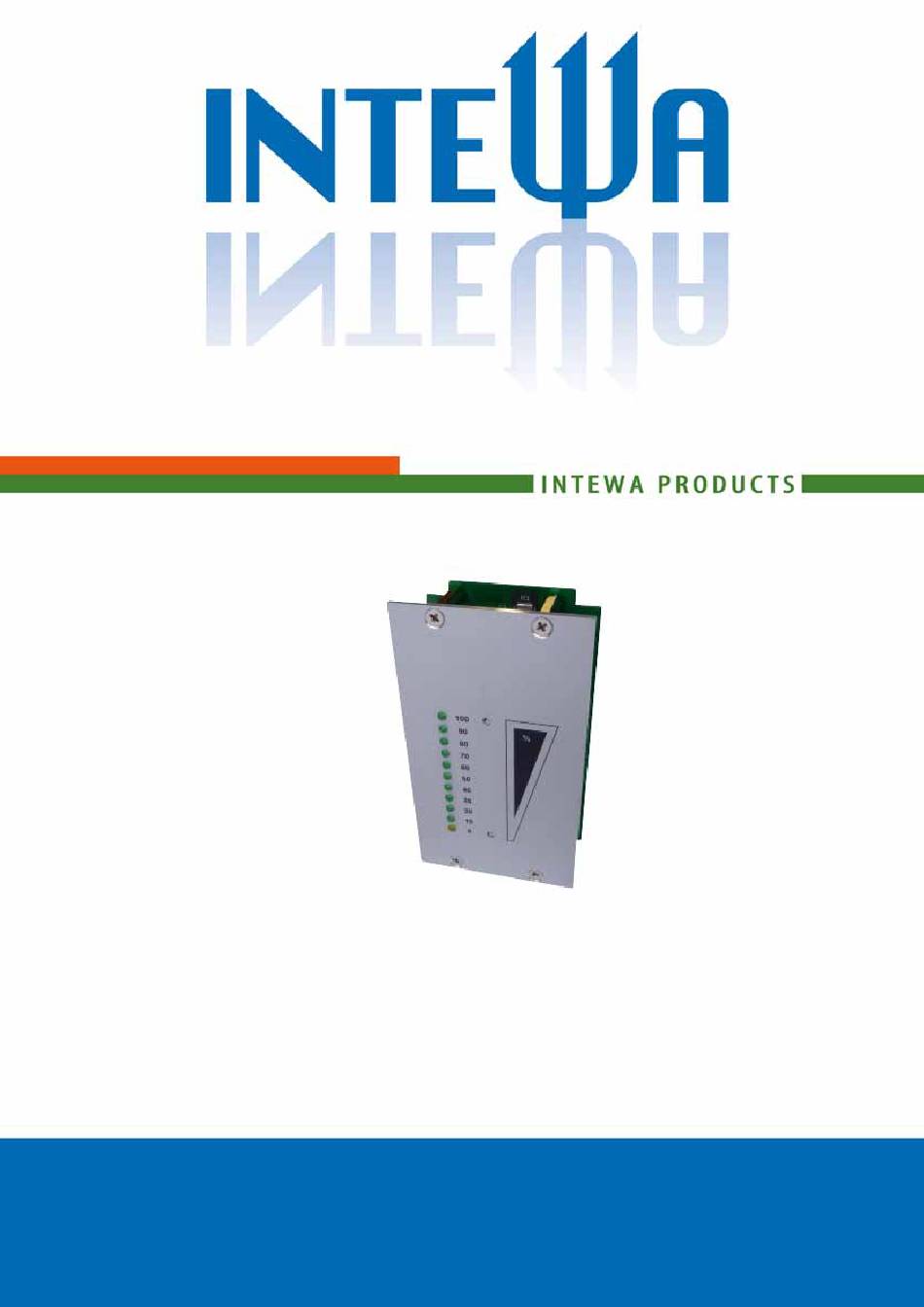

- Page 1 RAINMASTER Eco-FS Installation and user manual WATER, WE ´RE IN OUR ELEMENT www.intewa.com...
-
Page 2: Table Of Contents
Table of contents 1. Introduction and scope of application ........................2 1.1 Functionality ................................2 2. Safety tips ..................................... 3 3. Scope of delivery ................................3 4. Technical Data ..................................4 5. Electrical connections and installation ........................4 5.1 Installation of display in Rainmaster Eco ........................4 5.2 ... -
Page 3: Introduction And Scope Of Application

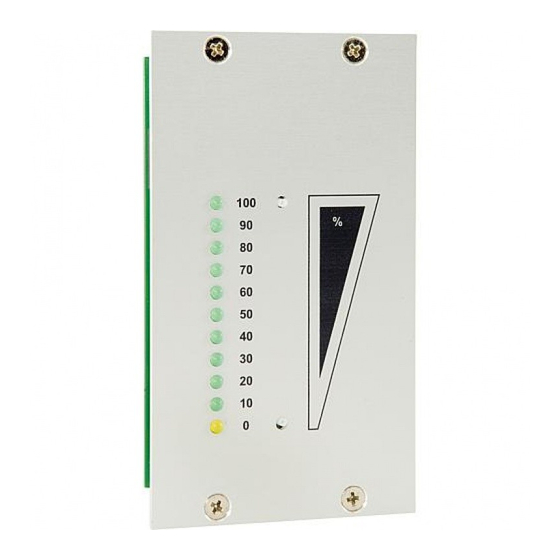

12. Empty cable duct for suction, float-actuated switch cable, control cable, etc. 13. Rainwater intake pipe System overview: RAINMASTER Eco with RAINMASTER Eco-FS rainwater-level indicator 1.1 Functionality The rainwater-level indicator shows the water level in the tank by means of light-emitting diodes (LEDs) as a percentage of the maximum water level. -
Page 4: Safety Tips
2. Safety tips Before installing the device, please read the assembly and user instructions enclosed carefully. The information in these instructions must be followed precisely; otherwise, all warranty claims will be invalidated. The operator is responsible for observing the safety and installation requirements. Installations on the drinking water supply network must only be performed by an approved installation company. -
Page 5: Technical Data
4. Technical Data Display: Dimensions of front plate with board (HBD): 110 x 62 x 30 mm Operating voltage: 24 V DC (Connection via flat cable to RM Eco) 20 m, 6 mm, 3 x 0.5 mm², up to 80 m extendable Control cable: Sensor unit: Dimensions of sensorsocket (... -
Page 6: Electrical Connections In The Rainmaster Eco
5.2 Electrical connections in the RAINMASTER Eco Flat cable plug connection Connection for control board RM ECO with fill level indicator RM Eco-FS via a flat cable plug Connection to the control board RM Eco Sensor 3: Control cable : brown (+ 15 V DC) Sensor 2:... -
Page 7: Electrical Connections To The Sensors
5.3 Electrical connections to the sensors Sensor cable: blue: Sensor cable, blue black: Sensor cable ,black (GND) Control cable: Control cable, brown ( +15 V DC) Control cable, black (+ signal) Control cable, grey (GND) The laying of the control cable from RAINMASTER Eco to rainwater storage is done in a shielded hose. -
Page 8: Installation Of The Sensors In Rainwater Storage Tank
5.4 Installation of sensor in rain water storage tank Bottom distance of the weight (approx. 5-10 cm) Distance of the 0%-level from the sensor cable end Display range 0-100% Min. 20 cm safety distance from the max. water level D Safety distance from the inlet to the 0% level of min. -
Page 9: Calibration
6. Calibration The sensor calibration is performed initially with the aid of a water bucket. The fine calibration can be performed later, when the sensor system is hanging in the rainwater tank and the minimum and maximum water levels actually exist. Important: Calibrate the 0% point first, before calibrating the 100% rainwater-level indicator. -
Page 10: Modes Of Operation
7. Modes of operation Rainwater-level indicator As the level of rainwater increases, all light emitting diodes light up till the current level. Note: If the max. water level exceeds by approx. 10 %, then this is indicated by a flashing 100 % LED. -
Page 11: Maintenance
11. Contact For customers in Germany: For any queries, ordering of spare parts, as well as in case of service, kindly contact INTEWA GmbH directly, quoting your product‘s model and identification numbers and the purchase invoice details, at: INTEWA GmbH Jülicher Straße 336... - Page 12 © INTEWA GmbH Version: 1.5b Subject to technical changes.
