Summary of Contents for Tvone CM-AVIP-IN-1USB-1ETH
- Page 1 CM-AVIP-IN-1USB-1ETH Dual stream input module Quick Start Guide V1.40 Firmware version M406 and above QSG-CM-AVIP-IN-V1.40 Mar 2019...
-
Page 2: Table Of Contents
In this guide About your Dual stream input module Quick start guide Checking and updating the CORIOmaster firmware Checking your firmware version and downloading new firmware Updating the firmware Regulatory compliance Contact us Get more help There are more Quick Start Guides available on the USB drive that came with your CORIOmaster. - Page 3 CORIOmaster™, CORIOmaster mini™, or CORIOmaster micro™. If you need help installing your Dual stream input module, contact your supplier, consult an experienced AV installer, or contact tvONE support. Contact details are at the back of this guide. QSG-CM-AVIP-IN-V1.40...
-

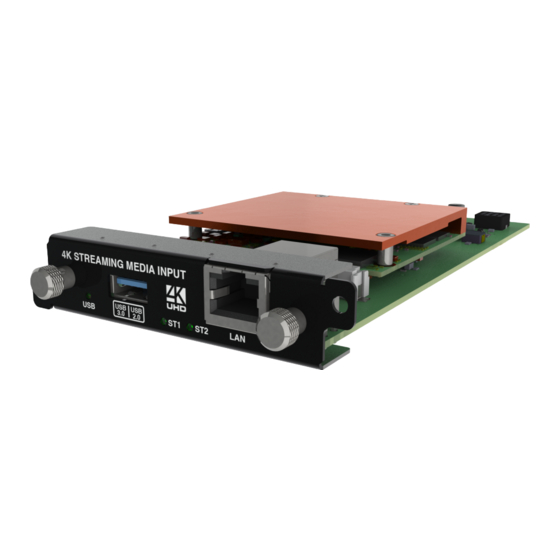

Page 4: About Your Dual Stream Input Module
Connect an Ethernet cable to play media over IP. If any status indicator stays red, restart your CORIOmaster. If that doesn't work, contact tvONE support. Contact details are at the back of this guide. Supported formats... -
Page 5: Quick Start Guide
Quick start guide It's easy to get started with the Dual stream input module, but if you want more help with any of these steps, or with setting up and using streaming media, select in CORIOgrapher™ and search, or ask a question. - Page 6 Make sure your CORIOmaster is connected to your display devices and to an AC power outlet. 2. Download the latest firmware for your CORIOmaster from tvone.com/firmware-updates. 3. Use CORIOdiscover to update your firmware. Read more about updating firmware on page 11.
- Page 7 Connecting to CORIOgrapher™ and choosing network settings 1. Open CORIOgrapher , connect to your CORIOmaster, and read the configuration from your device. Make sure you have a video wall set up that includes at least one window that uses a source from the Dual stream input module, and select Take.
- Page 8 If you choose a static IP address, make sure you enter a unique value for your IP address. Using the same IP address for multiple devices can cause your devices to disconnect. If you need help with network settings, contact your network administrator. tvONE...
- Page 9 Playing media and streams 1. Double-click the window you wish to play streaming media, and select (Media Player) Manage. 2. Select your media source. Your media items appear as icons. Still image Saved stream Video clip Found encoder Found encoder, Playlist streaming QSG-CM-AVIP-IN-V1.40...
- Page 10 If the encoder is not encoding, you might need to start or configure it. Read about starting and configuring the Encoder-100 in CORIOgrapher Help If you want to stream from the internet, or from an encoder that does not appear in Discovered encoders, add the tvONE...
- Page 11 stream. Select IP Streams > Add IP Stream and enter a useful name and the URL of the media stream. 4. Choose a resolution for your media stream. Tips and recommendations for choosing the best resolution are available in CORIOgrapher Help. 5.
- Page 12 Check that your USB drive contains only supported items before you start. See a list of supported items on page 2. Select (USB Drive) > Replace all items on the internal drive. For more information about managing your internal drive, see CORIOgrapher Help. tvONE...
-
Page 13: Checking And Updating The Coriomaster Firmware
Before you start To install the latest CORIOmaster firmware, you need CORIOdiscover V1.6 or above. V1.6 of CORIOdiscover is available from the CORIOmaster C3-540 page at tvone.com/firmware- updates. Checking your firmware version and downloading new firmware CORIOdiscover warns you if you try to install firmware that is older or the same as your existing firmware. - Page 14 1. In CORIOgrapher > Home, find your current firmware version next to the name of your CORIOmaster. 2. Check for newer firmware at tvone.com/firmware-updates. Select your device from the list and compare the firmware version to your own. If you have a CORIOmaster, select CORIOmaster C3-540.
-
Page 15: Updating The Firmware
Updating the firmware 1. In CORIOdiscover, select 2. Select your CORIOmaster from the list and select Update. 3. To save your CORIOmaster settings, select Save Device Settings. When you save your settings, your CORIOmaster keeps all your saved configurations and video walls. 4. -
Page 16: Contact Us
Copyright © 2019 tvONE™. All rights reserved. Registered in the U.S. Patent and Trademark Office. tvONE...
