Lincoln Electric Modular Fume Hood Operator's Manual

For use with machines ad1234-80 thru ad1234-134

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Operator's Manual

Modular Fume Hood

www.lincolnelectric.com/register

Authorized Service and Distributor Locator:

www.lincolnelectric.com/locator

Save for future reference

Date Purchased

Code: (ex: 10859)

Serial: (ex: U1060512345)

IM10014-A

| Issue D ate Dec-17

™

For use with machines having Code Numbers:

AD1234-80 thru AD1234-134

Table of Contents

Summary of Contents for Lincoln Electric Modular Fume Hood

Page 1 Operator’s Manual ™ Modular Fume Hood For use with machines having Code Numbers: AD1234-80 thru AD1234-134 Register your machine: www.lincolnelectric.com/register Authorized Service and Distributor Locator: www.lincolnelectric.com/locator Save for future reference Date Purchased Code: (ex: 10859) Serial: (ex: U1060512345) IM10014-A | Issue D ate Dec-17...
Page 2 THANK YOU FOR SELECTING A QUALITY PRODUCT BY KEEP YOUR HEAD OUT OF THE FUMES. DON’T get too close to the arc. LINCOLN ELEC TRIC. Use corrective lenses if necessary to stay a reasonable distance away from the arc. READ and obey the Safety Data PLEASE EXAMINE CARTON AND EQUIPMENT FOR Sheet (SDS) and the warning label DAMAGE IMMEDIATELY...
Page 3: Section A: Warnings
W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 2.d. All welders should use the following procedures in order to 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.
Page 4: Electric Shock Can Kill
SAFETY ELECTRIC SHOCK ARC RAYS CAN BURN. CAN KILL. 3.a. The electrode and work (or ground) circuits are 4.a. Use a shield with the proper filter and cover plates to protect your electrically “hot” when the welder is on. Do eyes from sparks and the rays of the arc when welding or not touch these “hot”...
Page 5 SAFETY WELDING AND CUTTING CYLINDER MAY EXPLODE IF SPARKS CAN CAUSE DAMAGED. FIRE OR EXPLOSION. 7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used 6.a. Remove fire hazards from the welding area. If and properly operating regulators designed for this is not possible, cover them to prevent the welding sparks the gas and pressure used.
Page 6 SAFETY As a rule of thumb, for many mild steel electrode, if the air is visibly Ventilation clear and you are comfortable, then the ventilation is generally There are many methods which can be selected by the user to adequate for your work. The most accurate way to determine if the provide adequate ventilation for the specific application.
Page 7 TLV and PEL values are as of October 2013. Always check Safety and 313 of the Emergency Planning and Community Right- Data Sheet (SDS) with product or on the Lincoln Electric website at to-Know Act of 1986 and of 40CFR 370 and 372.
Page 8 MODULAR FUME HOOD™ TABLE OF CONTENTS...
Page 9: Technical Specifications
MODULAR FUME HOOD™ INSTALLATION TECHNICAL SPECIFICATIONS MODULAR FUME HOOD HOOD SIZE MINIMUM HOOD SIZE 3.5 X 5 FT (1 X 1.5 M) MAXIMUM HOOD SIZE 18 X 18 FT (5.5 X 5.5 M) Check the available Product Data Sheets for extensive product specifications.
Page 10: General Description

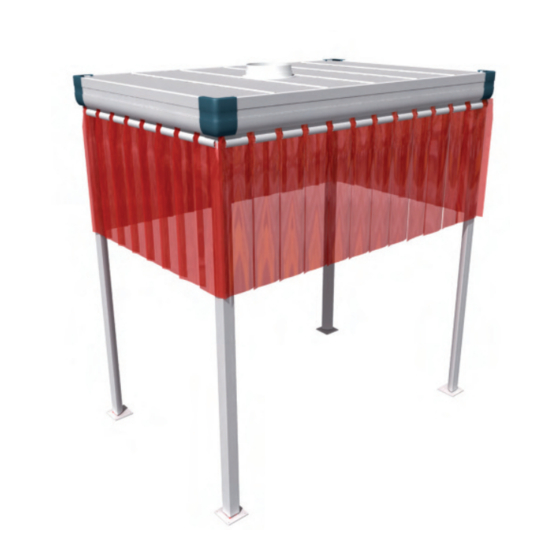

INSTALLATION FIGURE – GENERAL DESCRIPTION The Modular Fume Hood is a reliable and practical solution to contain and extract welding, cutting, arc gouging and grinding fume from the work environment. It is designed to connect to an external extraction/filtration system. The hood can be hung from the ceiling or mounted on legs.
Page 11: Mounting Possibilities
MODULAR FUME HOOD™ INSTALLATION NOTE: The best way to assemble a Modular Fume Hood XL is to place a stack of pallets under each corner of the hood and MOUNTING POSSIbILITIES one or two additional stacks under the loose ends of the cross-profiles.
Page 12 MODULAR FUME HOOD™ INSTALLATION...
Page 13 MODULAR FUME HOOD™ INSTALLATION...
Page 14 MODULAR FUME HOOD™ INSTALLATION...
Page 15 INSTALLATION ATTENTION Carefully read and follow the instructions before proceeding to make any cut-outs on the panels. To mount the Modular Fume Hood proceed as fol- lows: Refer to “A-TOP”, “B-BOTTOM” and “C-BOTTOM SINGLE COMPARTMENT END” markings on the panels for easy identi- fication and assembly.
Page 16 MODULAR FUME HOOD™ INSTALLATION In case of leg mounting: FIGURE – A.8 5. Make cut-aways in two “C-BOTTOM END” roof panels ATTENTION (W = 18.8 in. / 477mm) for mounting of legs. See Figure A.6. For double and triple compartment hoods, do not make cut-outs on both corners of the “C-...
Page 17 MODULAR FUME HOOD™ INSTALLATION 14. Determine position and number of connection flanges 18. Mount the remaining inner and outer corner pieces (1) and FIGURE – A.12 according to S31225-77 Table. Refer the assembly main frame profile (2). See Figure A.12.
Page 18 T-brackets. a) Follow steps 1 to 3 as per single compartment In case of Modular Fume Hood XL/standing: Mount connection plates (2 plates on each on all four corners) of corner reinforcement set on the main profiles using self-tapping FIGURE –...
Page 19 Corner cutting is not required for the panel assembled adjacent to the T-brackets. a) Follow steps 1 to 3 as per single compartment In case of Modular Fume Hood XL/standing: T-BRACKET FIGURE – A.17 Mount connection plates (2 plates on each on all four corners) of corner reinforcement set on the main profiles using self-tapping screws.
Page 20 4. Let down the hood easily, until it rests on all four legs. See FIGURE – A.19 Figure A.19. Modular Fume Hood XL/standing: 10 mm 1. Mount the corner reinforcements to the connection plates using bolts and locknuts (1). See Figure A.22.
Page 21: Installation
MODULAR FUME HOOD™ INSTALLATION FIGURE – A.24 Standing: 7 mm 1. Place the hood on its final position. See Figure A.23. FIGURE – A.23 2. Fasten the floor mounting plates to the floor. See Figure A.23. FIGURE – A.25 3. It is strongly recommended to place column guards around the legs.
Page 22: Operation
MODULAR FUME HOOD™ OPERATION OPERATION The Modular Fume Hood is placed over the working area and has to be connected to an external extraction/filtration system. The bottom roof panels work as a deflector plate, directing the airflow to the slots of the hood. The extracted air leaves the hood in the middle through one or two connection flanges mounted on top.
Page 23: Options And Accessories
MODULAR FUME HOOD™ ACCESSORIES OPTIONS AND ACCESSORIES The following products can be obtained as an option and/or accessory: Legs Aluminum legs for floor mounting. They are available in various heights. B Corner Reinforcement Set To be mounted diagonally between the main frame profiles and the legs to improve the strength of the hood construction.
Page 24: Periodic Maintenance
MODULAR FUME HOOD™ MAINTENANCE ATTENTION SERVICE, MAINTENANCE AND REPAIRS Always wear a respirator and gloves during service and maintenance Observe the maintenance intervals given in this manual. Overdue work. Industrial vacuum cleaner maintenance can lead to high costs for repair and revisions and used during service and maintenance can render the guarantee null and void.
Page 25 MODULAR FUME HOOD™ MAINTENANCE TABLE D.1 – MAINTENANCE SCHEDULE Frequency Every 3-6 month Every 12 months Light use Every 9 months Normal use Every 3 months Every 1-2 months Every 6 months Heavy use Component Action Main frame profiles, roof...
