Summary of Contents for Wren Phantom Whirlpool 1700

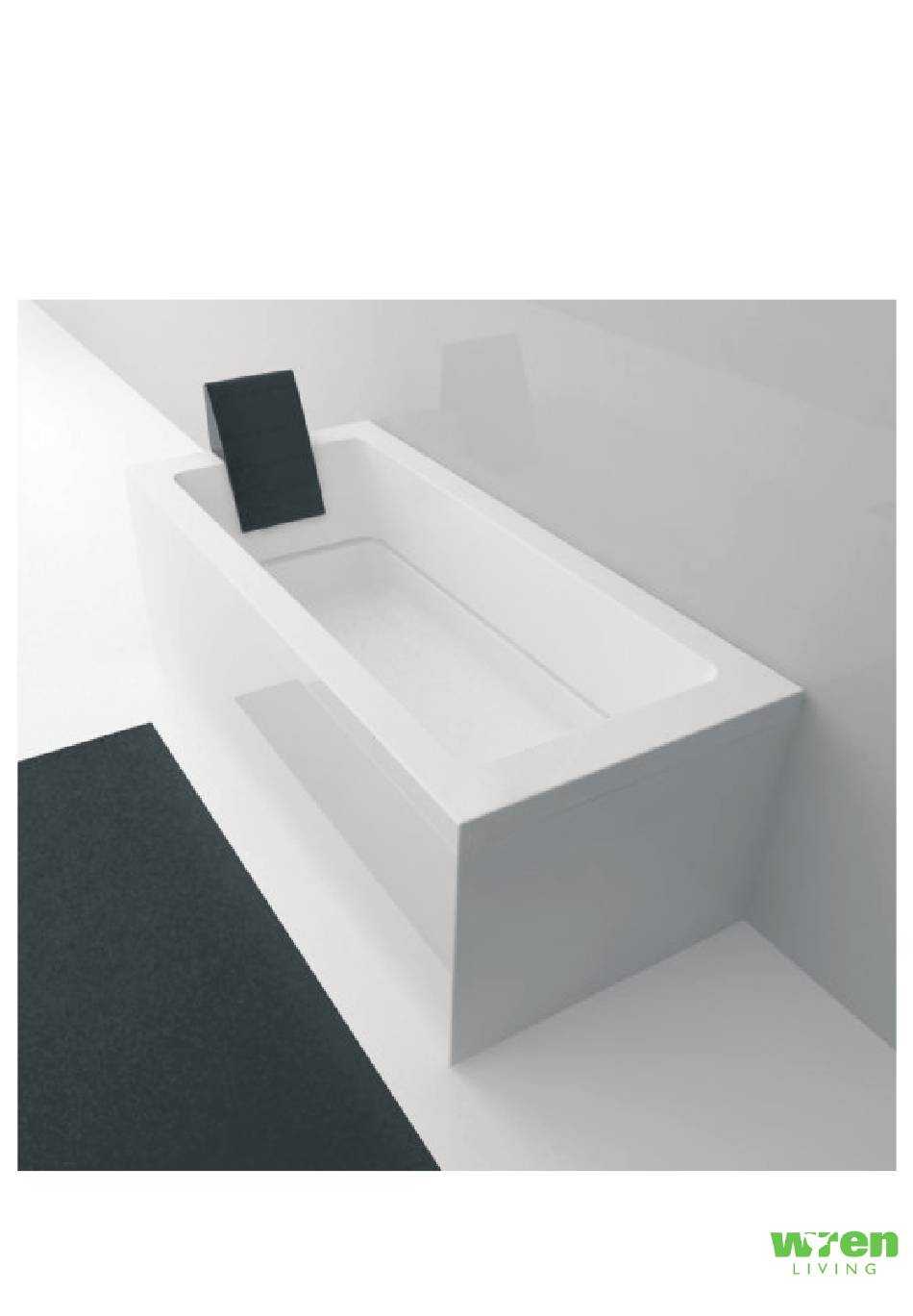

- Page 1 Phantom Whirlpool 1700 Phantom Whirlpool 1800 INSTALLATION, USE AND MAINTENANCE MANUAL 01_2015...
- Page 2 Thank you for choosing a WREN Living Ltd. product. Welcome to our world of total wellbeing. We would like to remind you our products are built using excellent quality materials that are accurately tested according to safety standards in force.
-
Page 3: Table Of Contents
INSTRUCTIONS FOR INSTALLATION MOUNTING ALL PARTS INSTALLATION OF THE BATHTUB INSTRUCTIONS FOR USE GENERAL FUNCTIONS DESCRIPTION OF PARTS - USING PHANTOM WHIRLPOOL 1700 COMMAND PANEL - USING COLOUR THERAPY COMMAND PANEL USING PHANTOM WHIRLPOOL 1800 COMMAND PANEL MAINTENANCE SURFACE CLEANING... -
Page 4: Introduction
INTRODUCTION THE USE AND MAINTENANCE MANUAL This manual is a guide for safe use of our products, therefore you need to pay utmost attention when reading it before using the product. This manual is of fundamental importance, therefore it must be carefully kept, for any future consultation. We reserves the right to make changes to the product, which are considered necessary, without prior notification or replacement. -
Page 5: Instructions For Installation
INSTRUCTIONS FOR INSTALLATION Unpack the product Turn upside down 180° ATTENTION Please make sure the top surface of the bath is protected against any possible damage form abration from items on the floor area when turning the bath upside down to fit the leg assemblies. Adjust the legs to the right height as per picture. - Page 6 INSTRUCTIONS FOR INSTALLATION Mount the water trap (command panel side) Mount the three brackets on the threaded rods Page 6...
- Page 7 INSTRUCTIONS FOR INSTALLATION Push them back (drain side) Repeat the same operations Take the front panel Page 7...
- Page 8 INSTRUCTIONS FOR INSTALLATION Mount the two supports with the four screws. Repeat the same operation for the end panel. Front panel Mount, near the three threaded rods, the steel springs with two screws each one End panel Mount, on the two blocks under the edge of the bathtub, the steel springs with two screws each one Page 8...
- Page 9 INSTRUCTIONS FOR INSTALLATION Mount the front panel on the bathtub Set the angle at 90° between the panel and the bathtub. Adjust the position of the three brackets and tighten the nuts. Repeat the same operation with the end panel. Once you have adjusted all the panels, remove them and continue the bathtub installation...
- Page 10 INSTRUCTIONS FOR INSTALLATION Using a level, put the bathtub perfectly horizontal. If you need, turn the adjustable feet Connect the hydromassage control box to the electricity supply. ATTENTION All Electrical work to be carried out only by a quaiified Electrician and to be Certified for compliance to all required Regulations and current UK Standards Connect the water trap of...
- Page 11 INSTRUCTIONS FOR INSTALLATION Insert the end panel under the edge of the bathtub. Put the temporary supports under the panel. Repeat the same operation for the front panel. Keep the panels in place, unscrewing the two panel adjustable supports Page 11...
-
Page 12: Instructions For Use
INSTRUCTIONS FOR USE GENERAL FUNCTIONS PHANTOM WHIRLPOOL 1700 COLOR THERAPY COMMAND PANEL PHANTOM WHIRLPOOL 1700 COMMAND PANEL CLICK CLACK DRAIN PHANTOM WHIRLPOOL 1800 PHANTOM WHIRLPOOL 1800 COMMAND PANEL CLICK CLACK DRAIN Page 12... -
Page 13: Description Of Parts
DESCRIPTION OF PARTS HYDROMASSAGE The Phantom Whirlpool bath includes a patented hydromassage system. This device allows you to take advantage of the hydromassage without the physical presence of the device generating the hydromassage, clearly improving the product ergonomics. For system functioning, see the control panel specifications (see page 15 and 17). - Page 14 DESCRIPTION OF PARTS CLICK CLACK DRAIN To close the drain press the plug (Fig. 1) To open again, bring the plug to the original position (Fig. 2) It can be internally accessed for cleaning by unscrewing the plug. Fig.1 Fig.2 Fig.3 Page 14...
-
Page 15: Using Phantom Whirlpool 1700 Command Panel
USING PHANTOM WHIRLPOOL 1700 COMMAND PANEL KEY1: Whirlpool On/Off KEY1: Disinfection On/Off KEY2: Venturi On/Off KEY1 KEY2 WHIRLPOOL KEY To turn on the hydromassage function, fill the bath up to 5 cm., over the hydromassage slit (if the level goes below this slit, the function deactivates in 3 seconds). -
Page 16: Using Colour Therapy Command Panel
USING THE COLOUR THERAPY COMMAND PANEL KEY1: Colour Therapy On/Off KEY2: Manual colour change On/Off KEY3: Automatic colour change On/Off KEY2 KEY3 KEY1 COLOUR THERAPY ON/OFF KEY Press KEY 1 to activate the function and the white light switches on. Premete il TASTO 1 per attivare la funzione e si accenderà... -
Page 17: Using Phantom Whirlpool 1800 Command Panel
USING PHANTOM WHIRLPOOL 1800 COMMAND PANEL On/Off Whirlpool Light Colour Disinfection therapy ON/OFF KEY On first switch-on, the key will be backlit in blue and all others will be Alla prima accensione il tasto sarà retroilluminato di blu e tutti gli altri off, to indicate all the functions have inhibited use. - Page 18 PHANTOM WHIRLPOOL 1800 COMMAND PANEL LIGHT COLOURS KEY With the light on, pressing the key changes the colour of the lights to Con luce accasa, la pressione del tasto fa cambiare il colore delle luce 8 basic colours. The "lights" key will remain lit in red, while the «light tra gli 8 tonalità...
-
Page 19: Maintenance
MAINTENANCE GENERAL SURFACE CLEANING Generic products, such as neutral liquid detergents can be used for normal surface cleaning. You are I prodotti generici, quali i liquidi detergenti neutri possono essere utilizzati per la normale pulizia delle advised to apply the product with a soft cloth, rinsing carefully with water. superfici. -
Page 20: Parts List
PARTS LIST cod. 62221 Phantom Whirlpool 1700 cod. 62222 Phantom Whirlpool 1800 cod. 62223 Phantom Whirlpool 1700 Front Panel cod. 62224 Phantom Whirlpool 1700 End Panel cod. 62225 Phantom Whirlpool 1800 Front Panel cod. 62226 Phantom Whirlpool 1800 End Panel...
