Fox-Lux REM10 User Manual

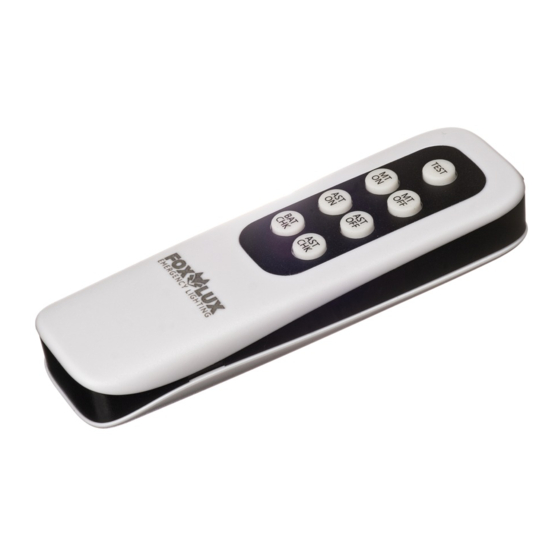

REM10 EMERGENCY LIGHTING REMOTE CONTROL

Thank you for purchasing our REM10 Remote Control. Our products have been designed according to
the relevant standards and if installed and maintained correctly will provide a long service life.
BS EN 60598-1 / BS EN 60598-2-22 / BS EN 50172 / BS EN 1838 / BS EN 62034 / ISO 7010 / ISO 3864
• This product should only be used by suitably qualified personnel.
• This product can be used to send commands to compatible Fox Lux self-test emergency luminaires
and conversion kits.*
• Please see below which functions are available for each version.
• It requires two AAA batteries.
*REM10 remote control adds new features to self-test emergency luminaires and it is an optional tool for those responsible for
emergency lighting installations. Note that self-test emergency luminaires work independently from the remote control.
REM10 can also be used to initiate a duration test on manual test luminaires - please contact Fox Lux for information.
Description
Part number
Remote Control
REM10
1: Batteries
strip
REM10 is requires two AAA batteries. Please remove the
battery insulating pull tab to start using.
t | +44(0)1543 396400 | e | hello@fox-lux.co.uk | w | www.fox-lux.co.uk
Operating
temperature
0 - 40°C
2: Infrared range
Position yourself as close as possible to the luminaire and
point the remote control towards the luminaire when
pressing the buttons.
Net weight
0.06 kg
15°
Ensure this product is disposed
responsibly according to WEEE
directive 2002/96/EC
