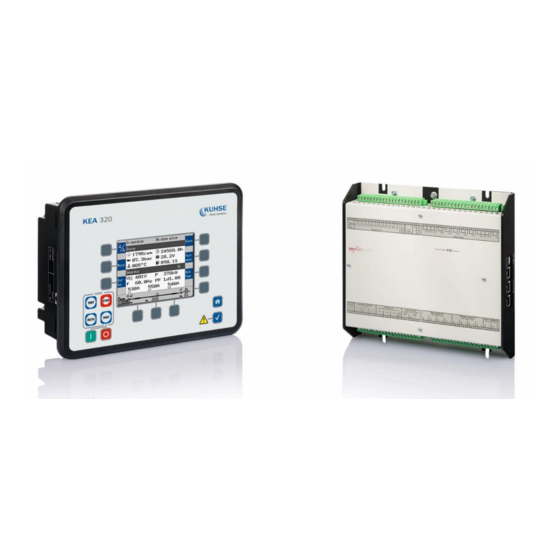

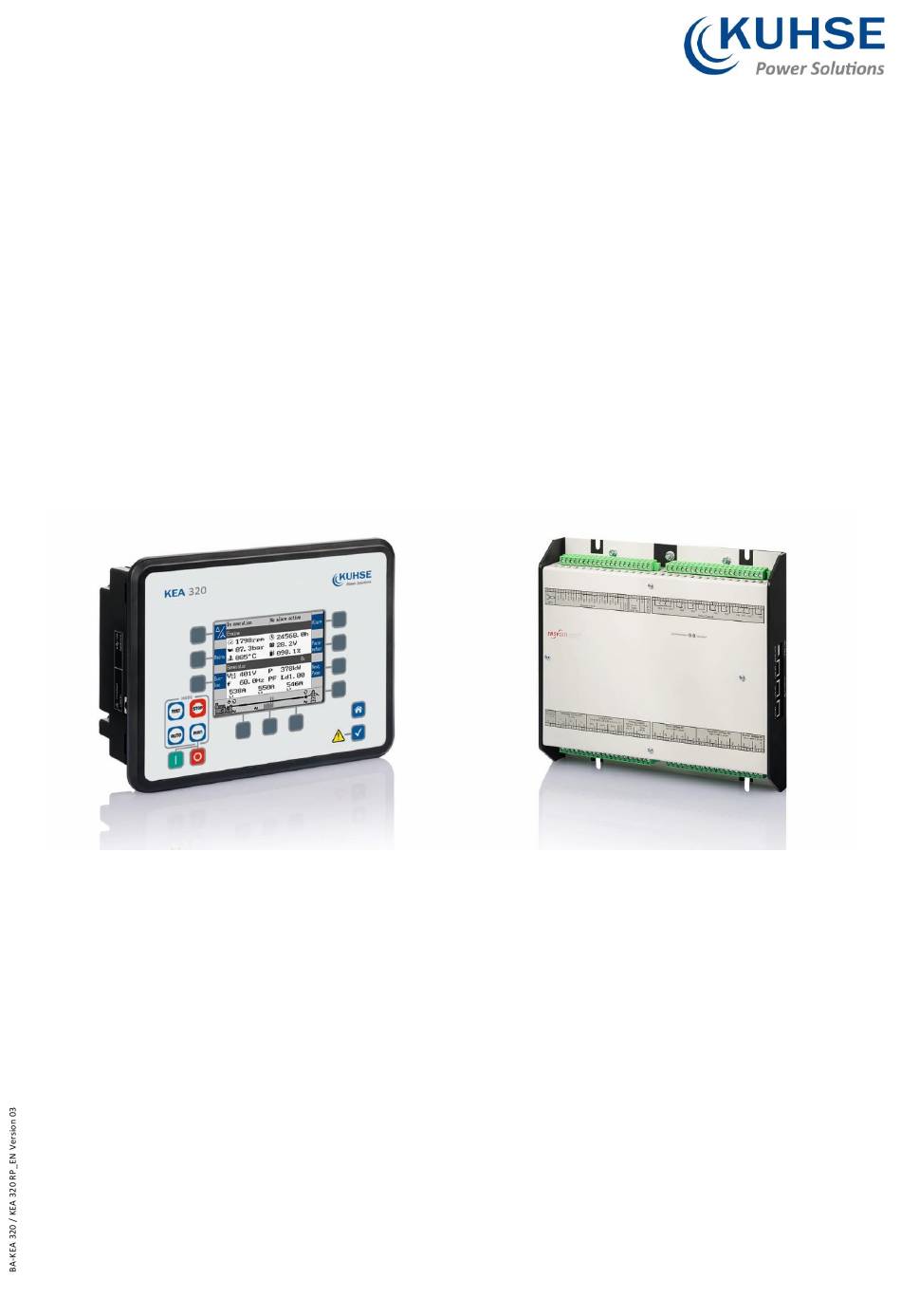

- Page 1 USER MANUAL KEA 320 / KEA 320 RP Kuhse Power Solutions GmbH An der Kleinbahn 39 21423 Winsen | Germany Fon +49. 4171.798.0 Fax +49. 4171.798.117 www.kuhse.de...
-
Page 2: Table Of Contents
Restore Language Setting via HMI, Buttons and Softkeys ............21 Amendments Created Amendments Name 2019-10-16 Creation Twesten 2020-05-19 Layout adjustment Twesten 2020-09-16 QR Code implementation Twesten BA-KEA 320 / KEA 320 RP_EN Version 03 Page 2 of 21 Date: 16.Sep.2020... -
Page 3: Brief Overview
AMF, peak shaving, import/export or distributed generation. The KEA 3X0 series is also applicable for islanded, island parallel, mains parallel and multiple unit mains parallel operations. BA-KEA 320 / KEA 320 RP_EN Version 03 Page 3 of 21 Date: 16.Sep.2020... - Page 4 Opening USB connection to the KEA 3X0 offers read access to the files listed below but with status "delivery" - please be aware that this files are not updated. Please contact Kuhse for the latest versions.
-
Page 5: Terminal Allocation
User Manual KEA 320 / KEA 320 RP Terminal Allocation Fig. 4: Terminals KEA 3X0-P1(-LT) plastic housing Fig. 5: Terminals KEA 3X0-P1 sheet metal housing BA-KEA 320 / KEA 320 RP_EN Version 03 Page 5 of 21 Date: 16.Sep.2020... -
Page 6: Wiring Diagram
4:RS485_SHIELD 3:CAN_SHIELD 3:CAN_SHIELD 5:RS485_Y CAN#1 CAN#2 4:CAN_H 4:CAN_H 6:RS485_Z *1 configurable via LogicsManager *2 V =12/24V SELV Fig. 6: Wiring diagram KEA 320 RP/KEA 320 (-LT) BA-KEA 320 / KEA 320 RP_EN Version 03 Page 6 of 21 Date: 16.Sep.2020... -
Page 7: Front Panel Access
The main screen can be divided into the following basic sections: Fig. 7: Main screen 1 Values 2 Status Messages 3 Alarm Messages 4 Single Line Diagram 5 Current Softkey Functions BA-KEA 320 / KEA 320 RP_EN Version 03 Page 7 of 21 Date: 16.Sep.2020... - Page 8 Display Mode other. Customer configurable screen Change to "customer specific screen 1 (or 2)" 1 (and 2) Notes The name of this softbuttons is configurable, too. BA-KEA 320 / KEA 320 RP_EN Version 03 Page 8 of 21 Date: 16.Sep.2020...
- Page 9 Move cursor position Return Return to previous menu. Next Page Go to following page/screen of the current menu. Parameter Screen Show parameter screen. Alarm Screen Show alarm screen. BA-KEA 320 / KEA 320 RP_EN Version 03 Page 9 of 21 Date: 16.Sep.2020...
- Page 10 Variable is TRUE (LogicsManager). The bit TRUE/enabled is enabled (CAN Interface). Relay activated (Discrete Outputs) Variable is FALSE (LogicsManager). The bit FALSE/disabled is disabled (CAN Interface). Relay deactivated (Discrete Outputs) BA-KEA 320 / KEA 320 RP_EN Version 03 Page 10 of 21 Date: 16.Sep.2020...
-
Page 11: The Home Screen
148/ p. 945. Result is available as logical command variable 11924 p. 926/ p. 936 (and can be used with 86.30). Find menu (ToolKit only!): “Parameter Configure HMI Configure display” BA-KEA 320 / KEA 320 RP_EN Version 03 Page 11 of 21 Date: 16.Sep.2020... - Page 12 Oil pressure (bar or psi) Water temperature (°C or °F) Operating hours (h) Battery voltage (V) Fuel level (%) Fig. 9: AnalogManagers for "Engine" values at Home Screen BA-KEA 320 / KEA 320 RP_EN Version 03 Page 12 of 21 Date: 16.Sep.2020...
-
Page 13: Operation
KEA finished starting. With power cycle of the KEA 3X0 the USB connection is lost: Please unplug/plug and/or start USB connection again after the KEA finished starting. BA-KEA 320 / KEA 320 RP_EN Version 03 Page 13 of 21 Date: 16.Sep.2020... - Page 14 (afterwards the standard process of Power ON is executed:) LEDs are twinkling LEDs are illuminated according to the state of the genset control BA-KEA 320 / KEA 320 RP_EN Version 03 Page 14 of 21 Date: 16.Sep.2020...
-
Page 15: Change Operating Modes
F class alarm. If the operating mode STOP is selected while the engine was already stopped the following applies: The GCB will not be closed. BA-KEA 320 / KEA 320 RP_EN Version 03 Page 15 of 21 Date: 16.Sep.2020... - Page 16 If the conditions of the LogicsManager function "Enable MCB" (parameter 12923 p. 236/ p. 945) are TRUE, the MCB will be closed again if it is open in STOP operating mode. BA-KEA 320 / KEA 320 RP_EN Version 03 Page 16 of 21 Date: 16.Sep.2020...
-
Page 17: Operating Mode Manual
Success: The engine stops and the circular arrow and the eye symbol disappear. Failure: No change in the display until the "stop failure" message appears. BA-KEA 320 / KEA 320 RP_EN Version 03 Page 17 of 21 Date: 16.Sep.2020... - Page 18 Indicates that the engine delayed monitoring has expired and the monitoring functions are enabled. Power is imported (at mains interchange). Power is exported (at mains interchange). Table 1: Status symbols BA-KEA 320 / KEA 320 RP_EN Version 03 Page 18 of 21 Date: 16.Sep.2020...
-
Page 19: Operating Mode Automatic
Prerequisites: The AUTOMATIC operating mode is enabled. The parameter "Emergency power" is configured to "On". The configured mains failure limits are reached. BA-KEA 320 / KEA 320 RP_EN Version 03 Page 19 of 21 Date: 16.Sep.2020... -
Page 20: Operating Mode Test
For a more detailed description of the start/stop sequence of the engine and the associated parameters refer to Chapter 4.4.5.1.3 “Operation Mode TEST” on page 309. The main functions are briefly described in the following sections. BA-KEA 320 / KEA 320 RP_EN Version 03 Page 20 of 21 Date: 16.Sep.2020... -
Page 21: Restore Language Setting Via Hmi, Buttons And Softkeys
Press softkeys [11] or [12] to select the desired language. Press softkey [7] once to commit the language setting. The desired display language is restored. BA-KEA 320 / KEA 320 RP_EN Version 03 Page 21 of 21 Date: 16.Sep.2020...
