Summary of Contents for ALLO USBRIDGE Aluminum

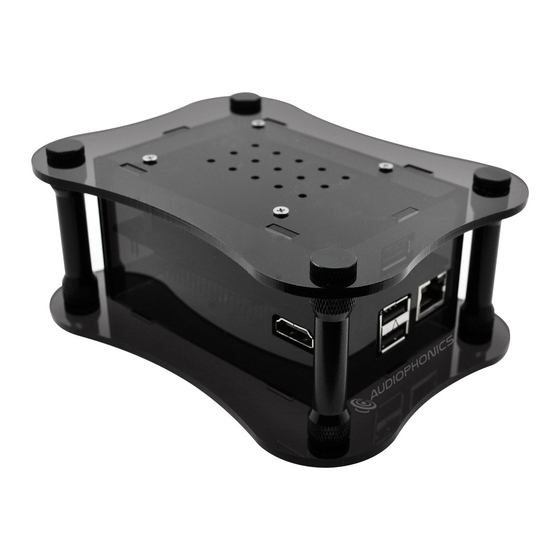

- Page 2 Your Player Includes: Sparky Mother Board + USBridge + Acrylic Case + 16GB eMMC + Adapter Board eMMC to microUSB + 5V Power Supply 1. Sparky SBC Board (on top) • Dual USB 2.0 Ports >> Keyboard / Mouse / USB Storage / WIFI Dongle •...
- Page 3 Before powering on the unit please connect all cables Boot-Up Checklist 1. LEDs are on, means power is fed to both boards. If not, check power source. 2. Sparky LED intermittent, mean OS booted properly. If static, try to power on again. 3.
- Page 4 3. Not recommended: microUSB of the Sparky. Only 1.8 Amps can be fed through that connector and both boards need more at boot up... you will run into problems. For more information, please visit ALLO.com / Transport / USBridge Support & Downloads at the bottom of the page...
