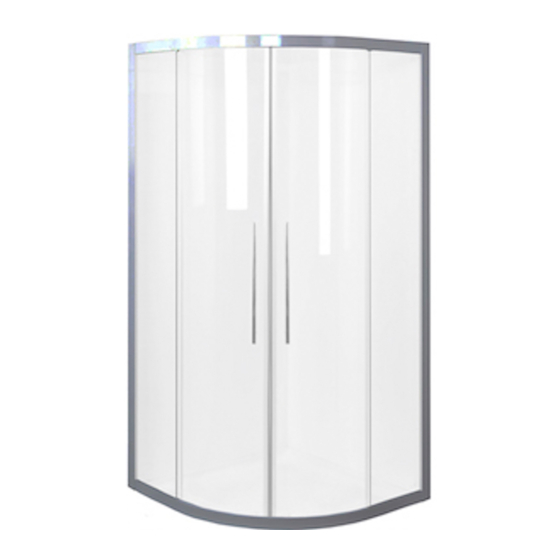

Summary of Contents for JohnsonSuisse daintree curved shower screen
- Page 1 JohnsonSuisse daintree curved shower screen INSTALLATION GUIDE...
- Page 2 JohnsonSuisse daintree curved shower screen IMPORTANT INFORMATION Please inspect the product immediately upon receipt for transit damage, missing packs/parts or manufacturing faults. Damage reported later cannot be accepted. Please handle the product with care avoiding knocks and shock loading to all sides and edges of glass.
- Page 3 JohnsonSuisse daintree curved shower screen ASSEMBLY GUIDE 2 x Wall jambs 4 x Sealing strips 13. 4 x Top roller assemblies 2 x Fixed panel extrusions 2 x Fixed panel seal - long 14. 4 x Bottom roller assemblies 2 x Fixed panels...
- Page 4 JohnsonSuisse daintree curved shower screen INSTALLATION GUIDE Note:Pre-assembly of screen is required. Make sure this is done in a clean and litter free space so screen does not get damaged Insert fixed panel end block(12)first then short fixed panel Push fixed panels(3) into seal that is located in the seal(9)into slot on both bottom and top rails(5)(6).
- Page 5 JohnsonSuisse daintree curved shower screen IMPORTANT INFORMATION 1 Measure your shower base/shower area. measurement to the outside edge of the of the wall jambs(1) should be somewhere within the min and max size of the screen. Screen Size 855mm 880mm 914×914mm...
- Page 6 JohnsonSuisse daintree curved shower screen INSTALLATION GUIDE Clip the bottom of the door into the bottom rail(6). The Gently knock the sealing strips(7) onto the fixed panels rollers(14) are pressed down to allow the rollers clip to be and doors Attach the door handles(11) to the sliding into the rail.
- Page 7 JohnsonSuisse daintree curved shower screen INSTALLATION GUIDE 4×10 4×10 Drill 4 equally spaced holes on the inside of the screen.Fix Apply silicone sealer around all external joints of shower off wall jambs(1) to the fixed panel extrusion(2) using the screen and allow 24 hours for silicone to set.
- Page 8 JohnsonSuisse daintree curved shower screen FOR FURTHER INFORMATION PLEASE CONTACT YOUR NEAREST GEMINI OFFICE: ADELAIDE Rep: Terry Hayes HEAD OFFICE (SYDNEY) T 0499 221 201 F 1800 225 315 2/97 Banksia St, Botany, NSW 2019 T 1300 717 717 F 1300 746 480...
