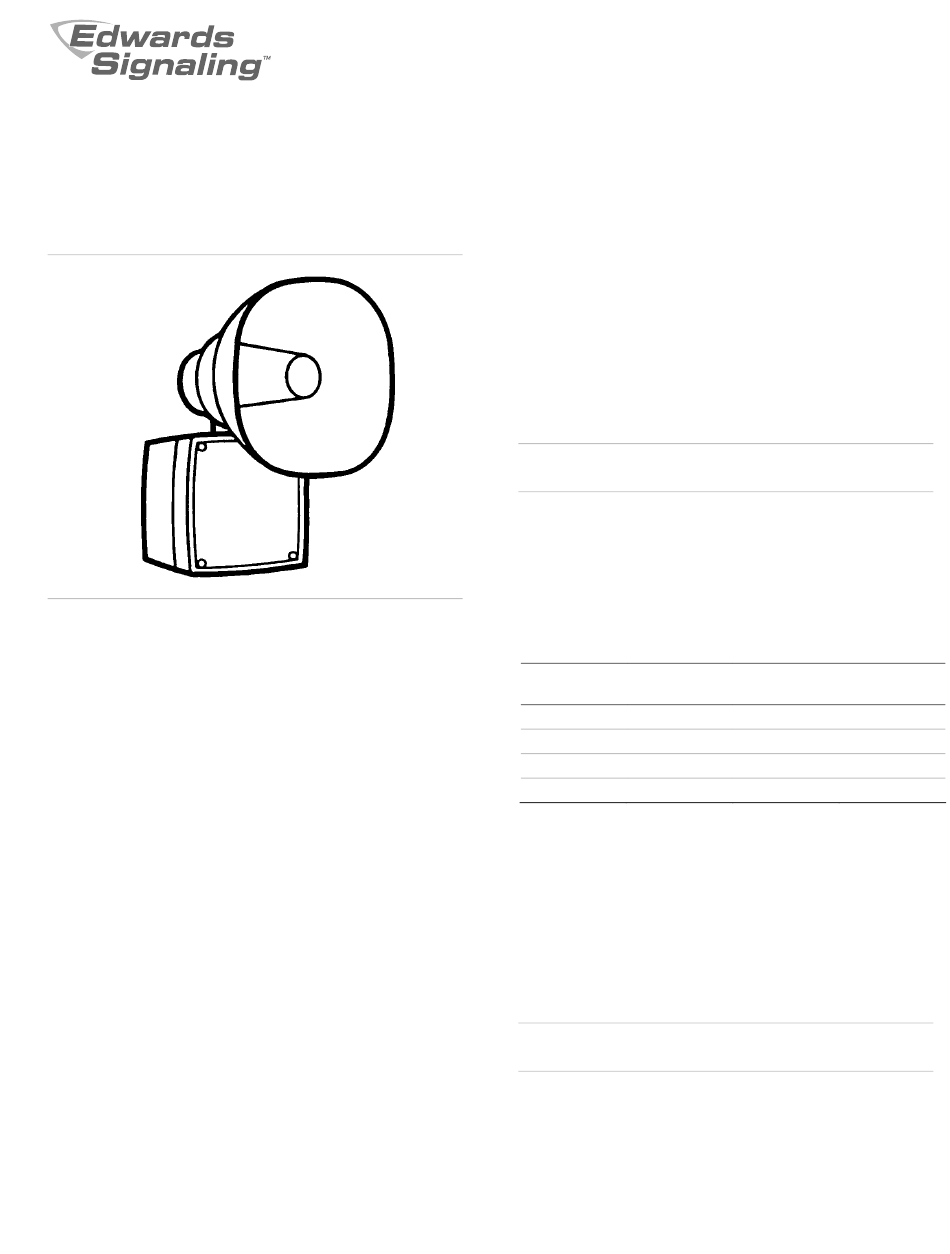

Edwards Signaling 5540M Installation Sheet

5540M Tone Generator and 5532M
Speaker/Amplifier Installation Sheet
Description
Edwards Tone Generator and Speaker/Amplifiers are
intended for industrial applications where high audible output
and microcomputer reliability are required. The Adaptatone
Millennium Series are UL and cUL Listed as Audible Signal
Appliances for use in the hazardous locations listed in
Table 1.
The 5532B Speaker/Amplifiers are UL Listed and CSA
Certified as Audible Signaling Appliances.
The 5532M-Y6 is additionally UL Listed in a Speaker and
Amplifier category, when powered with 120V/240 VAC 50/60
Hz, for use in conjunction with the 5541M-Y6 Millennium
System Master either for emergency/evacuation, non-fire, or
for supplementary fire alarm control panel accessory
applications (see Instructions for 5541M-Y6, part 3100471).
The Tone Generator operates from local power. It
accommodates up to four normally-open contacts on its
inputs. The tone that sounds in response to an active input
is determined by setting miniature programming switches
inside the unit. Table 6 has switch settings for setting tones.
Four tones may be programmed into the Tone Generator at
any time. These tones operate on a pyramid-type priority
system. The tone programmed on SW1 overrides the tones
programmed on SW2, SW3, and SW4. The tone on SW2
overrides the tones programmed on SW3 and SW4.
Likewise, the tone on SW3 overrides the tone programmed
on SW4. The tone programmed on SW4 has the lowest
priority and cannot override any other programmed tone.
© 2010 UTC Fire & Security. All rights reserved.
Speaker/Amplifiers are heavy-duty, stand-alone signaling
devices that operate from local power and sound a tone
programmed at the Tone Generator. Speaker direction and
the output level are easily adjustable. Up to 2500 of these
Speaker/Amplifiers can be connected in parallel to the tone
output of a single tone generator.
Recording a Voice Message (5540MV
Series)
WARNING: High voltage is present when product is
energized.
Four five-second messages (or one twenty-second
message) can be recorded on the voice module unit. Refer
to Figure 16.
1. Put switches A and B on the programming dipswitch in
the proper position for the message to be recorded
(Figure 16). For programming a message longer than
five seconds, use Message Location 1.
Message Start
Location
1 0 Sec
2 5 Sec
3 10 Sec
4 15 Sec
2. Put switch PGM on the programming dipswitch in the
"CLOSED" position for programming mode (Figure 16).
3. Press and hold the record button while speaking clearly
into the microphone to record your message. Release
the button when recording is complete.
4. To test the message, press and hold PLAY while in
programming mode.
NOTE: This will play only the current location.
WARNING: High volume may cause harm to personnel in
close proximity.
5. Adjust the volume as necessary. Set the main volume
using the potentiometer on the main board (Figure 14 -
Figure 16) and then set the voice volume using the
potentiometer on the voice module board (Figure 16).
1 / 10
Switch A Switch B
Settings Settings
CLOSED CLOSED
OPEN CLOSED
CLOSED OPEN
OPEN OPEN
P/N 3100010 • REV 7 • ISS 04AUG10
