Ormazabal velatia ekor.ccp General Instructions Manual

Ormazabal velatia ekor.ccp General Instructions Manual

Programmable cubicle controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

ekor.ccp
Programmable cubicle controller
General instructions
IG-156-EN, version 04, 25/01/19
LIB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the velatia ekor.ccp and is the answer not in the manual?

Questions and answers

Summary of Contents for Ormazabal velatia ekor.ccp

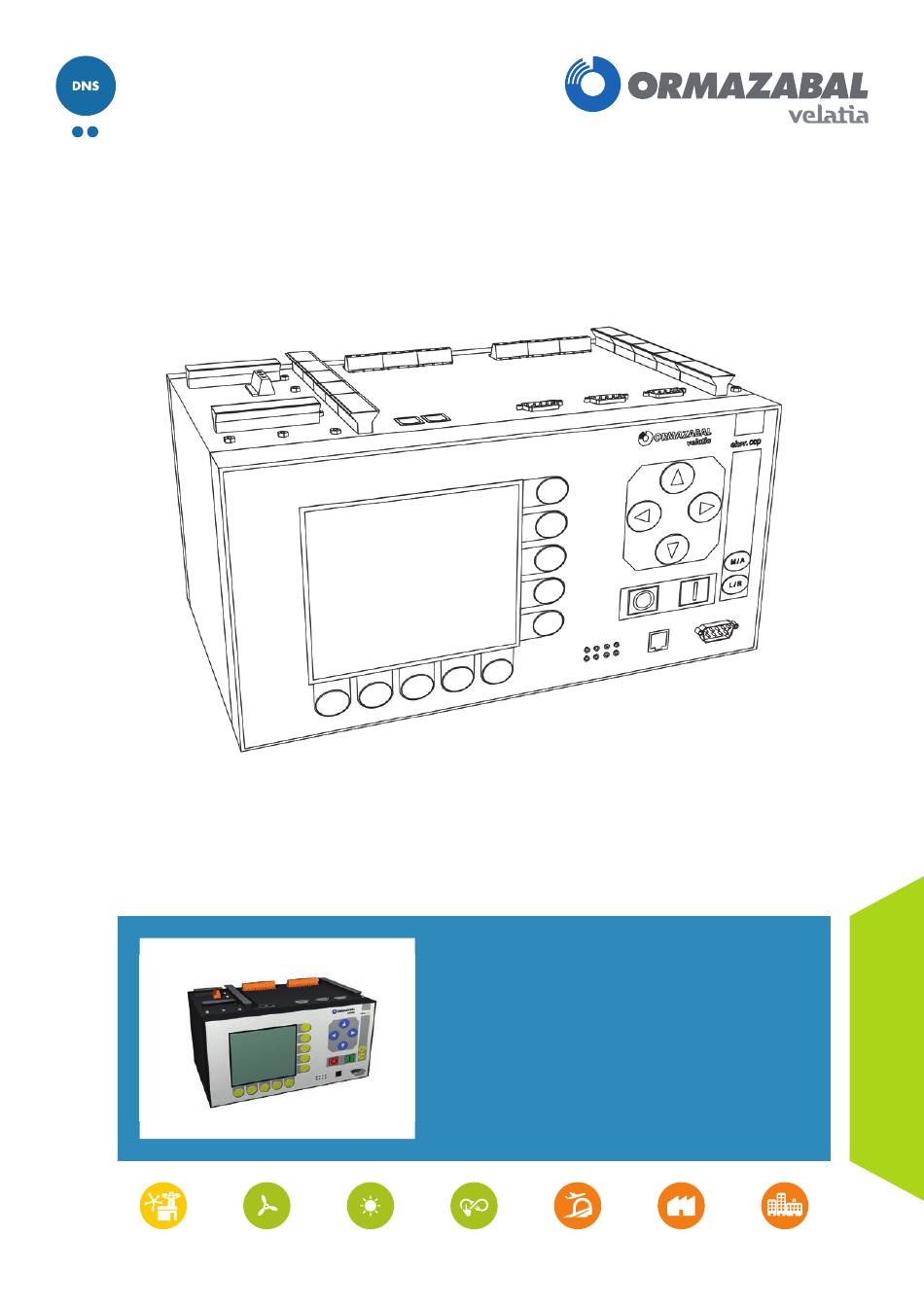

  • Page 1 ekor.ccp Programmable cubicle controller General instructions IG-156-EN, version 04, 25/01/19...
  • Page 2 Therefore, the use of this equipment poses electrical, mechanical and thermal risks. In order to ensure an acceptable level of protection for people and property, and in compliance with applicable environmental recommendations, Ormazabal designs and manufactures its products according to the principle of integrated safety, based on the following criteria: •...

  • Page 3: Table Of Contents

    General instructions Contents ekor.ccp Contents 1. Description and main characteristics .......4 5. Web services .............31 1.1. General operating features ....4 5.1. Characteristics of the control centre .

  • Page 4: Description And Main Characteristics

    Description and main characteristics General instructions ekor.ccp Description and main characteristics The ekor.ccp programmable cubicle controller unit has been designed to resolve applications such as automation, remote control, line transfer, electrical interlocks between cubicles, alarm centralisation, etc. in medium voltage installations.

  • Page 5: Equipment Components

    General instructions Description and main characteristics ekor.ccp 1.2. Equipment components The ekor.ccp unit has a modular-type architecture so that its Hardware can be adapted to the speci c requirements of each installation. All modules are easily interchangeable and are secured by bolts at the top of the unit. Digital input/output module and/or protection units Expansion modules CPU module...

  • Page 6: Power Supply Module

    Description and main characteristics General instructions ekor.ccp 1.2.2. Power Supply Module 48 V (24 - 110 V range) power supply module. Includes protection against polarity reversal, short-circuits and overvoltage. Figure 1.4. Power supply module 1.2.3. Digital I/O module Module with 12 digital inputs and 6 digital outputs, being able to use a maximum of 4 modules simultaneously (each unit reaching a maximum of 48 inputs and 24 outputs).

  • Page 7: Protection Unit

    General instructions Description and main characteristics ekor.ccp 1.2.4. Protection unit Module with protection relay function. It has 8 digital inputs And analogue channels for the intensity, voltage, active and 4 digital outputs. power and reactive power measurements. 1.2.5. Front panel The ekor.ccp unit has a 320 x 240 resolution graphic display for viewing status, alarms, performing operations, etc.

  • Page 8: General Application

    General application General instructions ekor.ccp General application 2.1. Line transfer The automatic transfer of lines minimises power outages in loads fed by Transformer or Switching Substations with more than one incoming line, thereby improving the continuity of service. Figure 2.1. ekor.stp Under normal conditions with voltage present on two this line to open and the reserve switch to close afterwards.

  • Page 9: Remote Control Of Transformer Substations And Switching Substations Via Integrated

    General instructions General application ekor.ccp 2.2. Remote control of transformer substations and switching substations via integrated control The ekor.ccp unit makes it possible to handle remote control ekor.rci and/or ekor.rp.ci , integrated control units, which applications of Transformer and Switching Substations. implement the control and monitoring of each switch.

  • Page 10: Automation Distributed Among Several

    General application General instructions ekor.ccp Integrated control allows for a drastic reduction in wiring inside transformer substations. The ekor.rci and ekor.rp.ci units receive input signals from the cubicles (statuses of switches and disconnectors, tripping of fuses) and execute the output signals (open, close). All of these signals, together with those of the units themselves (tripping of protection functions, fault detection, presence or absence of voltage, current measurements, etc.), are sent...

  • Page 11: Line Load Shedding/Automatic Sectionaliser

    General instructions General application ekor.ccp 2.4. Line load shedding/automatic sectionaliser The automatic sectionaliser makes it possible to disconnect This opening can be done in any of the reclosings that the fault section of a line. Its operation is similar to that of the main circuit-breaker performs.

  • Page 12: Sending Text Messages

    General application General instructions ekor.ccp 2.5.1. Sending text messages There are two strategies for the way in which text messages are sent: Di erent text messages for di erent telephone numbers. It is possible to send di erent text messages to di erent telephone numbers using this transmission mode.

  • Page 13: Communications Protocols

    General instructions Communications protocols ekor.ccp Communications protocols Displays the diagram of protocols and services supported by ekor.ccp regarding communication with the control substation and communication with transformation substation systems: Figure 3.1. Communications protocols 3.1. Remote control protocols 3.1.1. Remote control protocols between ekor.ccp and SCADA IEC 60870-5-104 (di erent company pro les) IEC-60870-5-101 MODBUS TCP...

  • Page 14: Web Services Client/Server

    Communications protocols General instructions ekor.ccp 3.2. Web Services client/server The Web Services are used for the exchange of information This protocol and functionality are explained in greater and management services without real-time requirements. detail in the "5. Web services" section. The protocol used is SOAP over HTTP.

  • Page 15: Web Application: Web Server (Http And Https)

    General instructions Web Application: Web server (HTTP and HTTPS) ekor.ccp Web Application: Web server (HTTP and HTTPS) 4.1. Web Server Access Local access and remote access The ekor.ccp unit has a Web Application Server, which can The website can be accessed via any web browser (Internet be be accessed via HTTP and HTTPS.

  • Page 16: Ldap Authentication

    Web Application: Web server (HTTP and HTTPS) General instructions ekor.ccp 4.2. LDAP authentication The LDAP client used in the ekor.ccp is compatible with An attempt will be made to validate the username/password OpenLDAP 2.4.x. The steps for LDAP authentication are: with the LDAP server, and if no reply is received, "n"...

  • Page 17: Checking And Modifying Parameters

    General instructions Web Application: Web server (HTTP and HTTPS) ekor.ccp 4.3. Checking and modifying parameters using the Web Server The website is divided into four main tabs: Maintenance, Logs, Con gure and Exit. 4.3.1. Maintenance This tab is used to keep users informed on data in real time In turn, it is divided into 6 menus: Display, Alarms, and provide information on the status of the switchgear, Measurements, Speci cation, Communications and I/O...
  • Page 18 Web Application: Web server (HTTP and HTTPS) General instructions ekor.ccp Alarms: A list of all the alarms de ned in the substation and the real-time status of each one are displayed. When an alarm is triggered, its status changes from OFF to ON and the alarm box turns red.
  • Page 19 General instructions Web Application: Web server (HTTP and HTTPS) ekor.ccp Figure 4.6. Measurements tab by cubicle Description: This enables users to enter text giving information on the substation and on each cubicle in the installation. The serial number of the ekor.ccp unit and the protection units are displayed.
  • Page 20 Web Application: Web server (HTTP and HTTPS) General instructions ekor.ccp Communications: the following options are displayed: a. Values: Provides the real-time status of the DB signals sent to the dispatching centre (single signals, measurements, etc.). Figure 4.8. Communications tab: Values b.
  • Page 21 General instructions Web Application: Web server (HTTP and HTTPS) ekor.ccp c. Frames: Provides real-time information on the TX and RX frames exchanged between the control centre and the ekor.ccp unit. Start/Stop capture Save capture Figure 4.10. Communications tab: Frames IG-156-EN version 04; 25/01/19...
  • Page 22 Web Application: Web server (HTTP and HTTPS) General instructions ekor.ccp d. Tcp dump: Capture of communication frames of each performed to determine the traffic to capture and the communication interface on demand. The format of the interfaces via which to capture. captured file type is tcpdump.

  • Page 23: History Log

    General instructions Web Application: Web server (HTTP and HTTPS) ekor.ccp 4.3.2. History log Faults: displays information on the last and second-to-last This tab displays three types of logs: faults log, substation step fault detection registered for each protection unit. It alarms and events log and log of changes in Software is possible to download a le with the information on the versions of the di erent units.
  • Page 24 Web Application: Web server (HTTP and HTTPS) General instructions ekor.ccp Figure 4.14. Events log IG-156-EN version 04; 25/01/19...

  • Page 25: Configuration

    General instructions Web Application: Web server (HTTP and HTTPS) ekor.ccp Versions: an event is stored for each change of fw and Web fw, the Web or the fw of the protection unit that has been versions of the ekor.ccp unit as well as versions of protection modi ed and what version is loaded.
  • Page 26 Web Application: Web server (HTTP and HTTPS) General instructions ekor.ccp Relays: Viewing and modifying the protection unit adjustments by position. Selecting the protection unit. Protection adjustments. Receiving/sending protection adjustments Upload/download adjustments Figure 4.17. Viewing and modifying the protection unit adjustments IG-156-EN version 04;...
  • Page 27 General instructions Web Application: Web server (HTTP and HTTPS) ekor.ccp RTU IP: Viewing and modifying parameters related to the TCS, timers, etc. They can be uploaded and downloaded in communication protocol between the dispatching centre and an .xml le the remote IP parameters, NTP parameters, LDAP parameters, Figure 4.18.
  • Page 28 Web Application: Web server (HTTP and HTTPS) General instructions ekor.ccp Firmware: Viewing and modifying the Firmware and Web of a. RTU Firmware: Viewing and modifying the Firmware and the ekor.ccp unit and the protection unit. Web versions of the ekor.ccp unit Includes the option to remotely reset the unit and to know the time zone.
  • Page 29 General instructions Web Application: Web server (HTTP and HTTPS) ekor.ccp b. Relay Firmware: Viewing and modifying the Firmware versions of the protection units Information about the fw version Protection unit reset button Update fw button Figure 4.20. Viewing and modifying the fw versions of the protection units Password: It is possible to modify the administrator mode and viewing mode passwords (when not managed via LDAP).

  • Page 30: Web Server Characteristics

    Web Application: Web server (HTTP and HTTPS) General instructions ekor.ccp Menus: There an option to show the display menus of the ekor.ccp unit on the Web server. For more information about the unit menus, see section "6.2. Screens in menu mode". Figure 4.22.

  • Page 31: Web Services

    General instructions Web services ekor.ccp Web services The ekor.ccp unit has a system of Web Services (WS) for this, each service is a Web Service, with an input and output information exchange and management for services in one single operation (function). Each operation contains without real-time requirements.

  • Page 32: Checking And Modifying Parameters Using The Keypad

    Checking and modifying parameters using the keypad General instructions ekor.ccp Checking and modifying parameters using the keypad When on standby, the display on the ekor.ccp unit remains switched o To activate the display, press any of the buttons, accessing the general information screen. Figure 6.1.
  • Page 33 General instructions Checking and modifying parameters using the keypad ekor.ccp Alarms The status of all of the alarms in the installation is displayed on this screen. Active alarms are displayed rst, followed by those currently inactive. The alarms can be reset on this screen by pressing the Reset Alarms button and overriding the alarm buzzer by pressing the Sound O button.
  • Page 34 Checking and modifying parameters using the keypad General instructions ekor.ccp History log The history log screen is accessed from the general information screen by pressing the History Logs button. This screen displays all of the events that have occurred in the substation (to a maximum of 1792), sorted in chronological The date and time when the event occurred are displayed order starting with the latest event.

  • Page 35: Screens In Menu Mode

    General instructions Checking and modifying parameters using the keypad ekor.ccp 6.2. Screens in menu mode The menu mode screen is accessed from the general The graphic interface is replaced by a menu screen in information screen in graphic mode by pressing the this mode.
  • Page 36 Checking and modifying parameters using the keypad General instructions ekor.ccp L1 S WITCH CONTROLS----------------- L2 S WITCH L3 S WITCH TIMES ---------------- HANGE ETURN TO ORMAL O FAULT DETEC TIME SWITCH OPERATIONS OPERATIONS- PARAMETERS------------- SWITCH OPERATIONS SWITCH OPERATIONS TIME S L1 S WITCH ERROR L2 S...

  • Page 37: Db B Configuration Program: Ekor.gen

    General instructions DB B configuration program: ekor.gen ekor.ccp DB B configuration program: ekor.gen The ekor.gen Software is used to design and generate the databases loaded in the ekor.ccp unit of remote-controlled Transformer Substations. To design the con guration, the types of cubicle forming the substation and the communications protocol variables are assigned to each of the signals to be remotely controlled.

  • Page 38: Single-Wire Substation Configuration

    To insert a cubicle, select Insert → Cubicle → Ormazabal on the toolbar and select the cubicle required from the drop-down list. You can also click on the “Insert cubicle” icon for a screen containing all of the cubicles to be displayed.

  • Page 39: Technical Characteristics

    Max. speed: 115 200 bauds Insulation: 5 kV No. of ports: 3 RJ45 Max. speed: 100 Mbps Insulation: 1.5 kV CcpCom (Property of Ormazabal) Protocols Industrial protocols (MODBUS, IEC-870-5-104, DNP.3…) Utility-owned protocols (PID1, Sap20...) Max. no. of messages: 100 Text messages Text messages Max.

  • Page 40: Insulation Tests

    Technical characteristics General instructions ekor.ccp 8.4. Insulation tests IEC 60255-5 Dielectric strength 2 kV , 1 minute 1 kV , 1 minute Insulation resistance 500 V Insulation with voltage impulses 5 kV in common mode (2 kV for Ethernet ports) 1 kV di erential mode Table 8.4.

  • Page 41: Mechanical Tests

    General instructions Technical characteristics ekor.ccp 8.7. Mechanical tests EN 60068-2-64:2008, Fh Response to vibrations (random) RMS acceleration: 7.82 m/s Range of frequencies and acceleration spectral density levels: 5 - 20 Hz_ 1 (m/s ) 2/Hz. 20 - 200 Hz_ - 3dB/eighth ETSI-EN 300 019-2-2 (2013-04) Duration on each axis: 30 minutes Table 8.7.
  • Page 42 Notes General instructions ekor.ccp Notes IG-156-EN version 04; 25/01/19...
  • Page 44 Ormazabal Subject to change Protection & without prior notice. Automation For further information, IGORRE contact Ormazabal. Spain www.ormazabal.com...
