Summary of Contents for Capri Tools CP32500

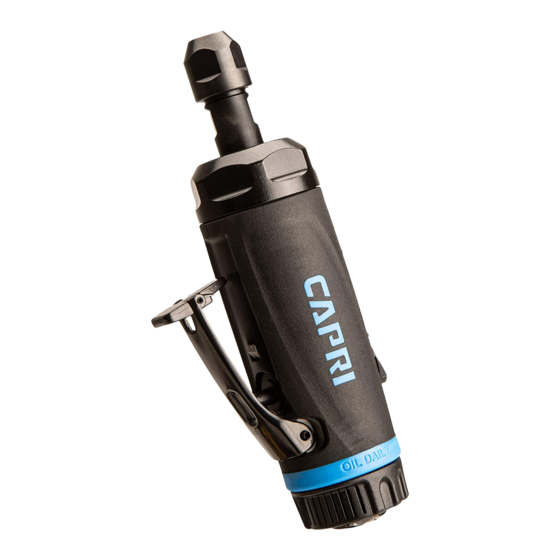

- Page 1 People. Passion. Quality. User Manual & Safety Instructions DIE GRINDER Model: CP32500 / CP32505...
- Page 2 People. Passion. Quality. DiE grinder SPecifications CP32500 CP32505 L: 7.00 in. L: 7.00 in. H: 2.95 in. H: 3.35 in. W: 1.80 in. W: 1.80 in. Collet Size Collet Size 1/4” 1/4” Horsepower Horsepower Free Speed Free Speed 23,000 RPM...
- Page 3 A. Collet E. Ergonomic Grip B. Spindle F. Speed Control Dial C. Safety Lever G. 360° Swivel Exhuast D. Trigger H. 1/4” NPT Inlet www.capritools.com...
-
Page 4: Safety Information
People. Passion. Quality. Safety Information Read and understand this manual and safety instructions in its entirety before using this tool. Failure to follow these operating and safety instructions can result in serious injury and property damage. Always wear safety goggles. Always use hearing protection. - Page 5 DO NOT DISCARD THIS MANUAL air hose to the tool. The vibrations from operating It can result in explosion. the tool will damage the coupler. Use a leader • Do not put hands and body near moving parts. hose to connect the air hose to the tool. The leader hose reduces vibration to couplers and enhances • Do not use the tool near live electricity. The tool is flexibility and safety. not electrically insulated. •...
-
Page 6: Usage Instructions
People. Passion. Quality. usage instructions air supply system installation lubrication • The recommended air supply system setup is in • Lubricate the tool before first use. the diagram below. • Lubricate the tool daily as well as before and • Do not exceed 90 PSI air pressure. Exceeding the after each use. - Page 7 usage Before you begin: Operation: • The die grinder is designed for grinding and • Use the speed control dial to select desired deburning. grinder speed. • Use the tool only for intended purposes. • To start the tool, disengage the safety lever, depress the trigger to use the tool, and release •...
-
Page 8: Year Limited Warranty
2 year limited warranty Capri Tools will repair, without charge, any defects Capri Tools makes other warranties, due to defective materials or workmanship expressed or implied, concerning the product of for two (2) years from the date of purchase, the merchantability for fitness thereof for any applicable to the original purchaser only and purpose. In no event shall Capri Tools be liable for...
