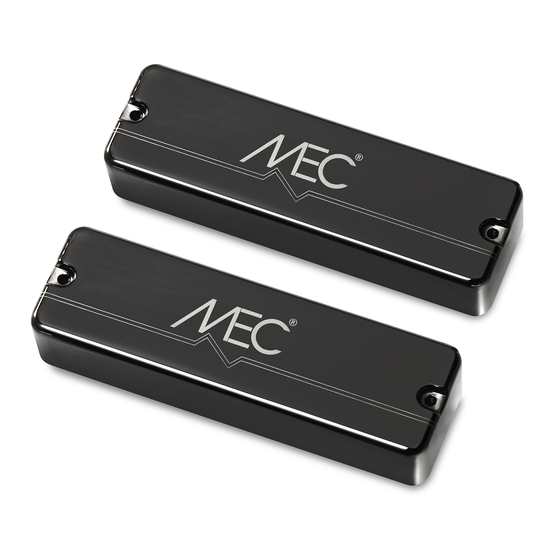

Summary of Contents for Mec M 60115 SET CMB

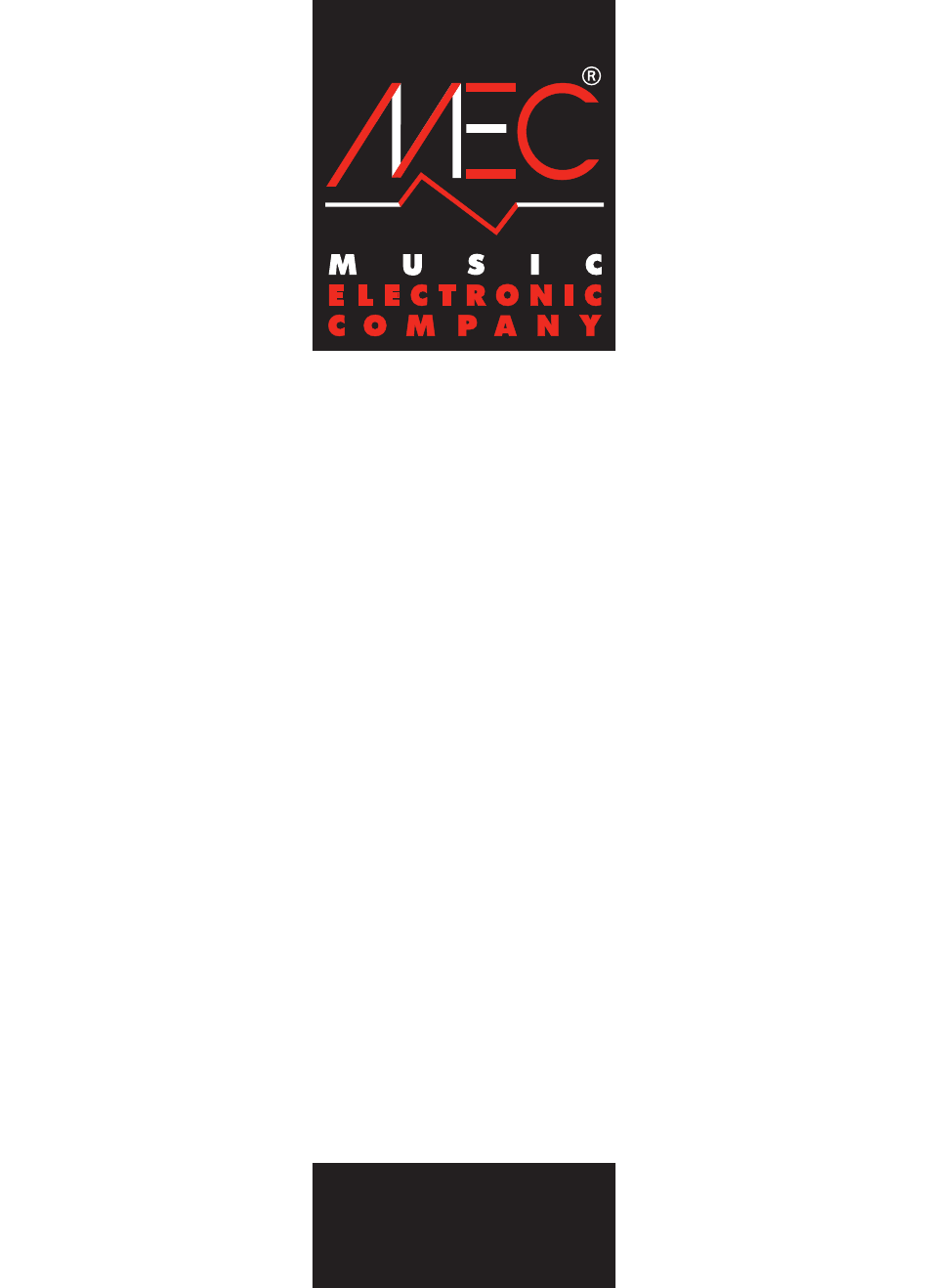

- Page 1 MORE THAN A REPLACEMENT MANUAL ENGLISH...
- Page 2 Thank you for purchasing your MEC pickup. If you don‘t have experience with wiring or soldering or if you are unsure how to proceed with the installation, we strongly recommend that you have the pickup installation performed by a specialist.
- Page 3 CONNECTOR CABLES Active Pickups Red: +9V White: Hot (+) Bare: Shield (-) MM-Style / Soapbar (passive) Green: Neck (-) & Bare: Shield Red: Neck Hot (+) & White: Bridge (-) Black: Bridge Hot (+) Twin Jazz (active) Red: +9V 2x White: Hot (+) 2x Bare: Shield (-) Passive Pickups White: Hot (+)
- Page 4 We recommendthat any modifications to the body only be performed by trained professionals. MEC music electronic company GmbH - Landwüster Str. 16 - 08258 Markneukirchen, OT Wernitzgrün - Germany www.mec-pickups.de | info@mec-pickups.de...
