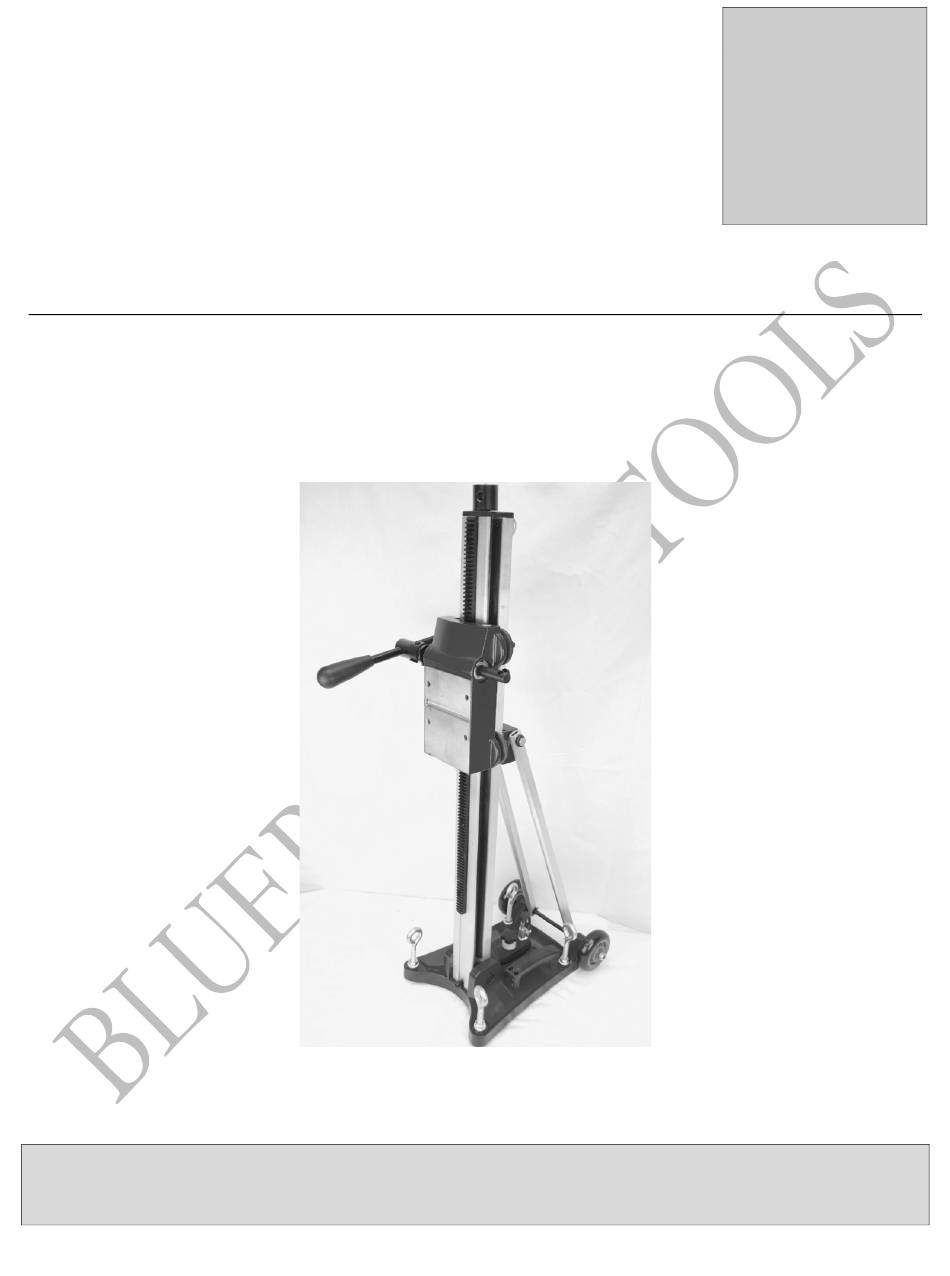

- Page 1 Volume OPERATIONAL MANUAL MODEL: Z1T/S CORE DRILL STAND - W/TILTING STAND / ROLLING BASE / VACUUM BASE by BLUEROCK ® Tools...
- Page 2 Z 1 T S C O R E D R I L L S T A N D UNPACKING THE ITEM CAUTION: This machine is packed together with items that may be sharp, oily and overly heavy objects. Remove the machine from the packaging in a safe manner. Check to ensure all accessories are included with the item while unpacking.
-
Page 3: Table Of Contents
Z 1 T / S C O R E D R I L L S T A N D Table of Contents SAFETY PRE-OPERATIONAL SAFETY CHECKS IN CORE DRILLING OPERATIONAL SAFETY CHECKS IN CORE DRILLING HEALTH WARNINGS IN CORE DRILLING SPECIFICATIONS INCLUDED ACCESSORIES ADDITIONAL AVAILABLE ACCESSORIES... - Page 4 Z 1 T / S C O R E D R I L L S T A N D BREAKDOWN VIEW...
-
Page 5: Safety
Chapter Z 1 T / S C O R E D R I L L S T A N D Safety DO NOT USE THIS MACHINE UNLESS YOU HAVE READ THE OPERATING INSTRUCTIONS! Safety glasses must be worn at all Long and loose hair must be times in work areas. -
Page 6: Health Warnings In Core Drilling
Z 1 T / S C O R E D R I L L S T A N D Ø DO allow machine to reach operating speed before starting a hole. Ø DO unplug machine while changing or adjusting cutting bits so as not to accidentally turn machine on. Ø... -
Page 7: Specifications
S T A N D Chapter Specifications MECHANICAL DATA Compatible with the following 4”Z1 & 4”Z1 W/S BLUEROCK Tools Core drills 8”Z1 10”Z1 & 10”Z1 RB 12”Z1T/S and 12”Z1 LRBTS Tilting Base Vacuum Base Compatible Yes (Center vacuum cap can be removed for traditional bolt anchoring). -
Page 8: Additional Available Accessories
Z 1 T / S C O R E D R I L L S T A N D Note UPON RECEIPT, CHECK CAREFULLY TO ENSURE THAT THE ITEM IS IN GOOD CONDITION AND HAS ALL ACCESSORIES LISTED ABOVE. Additional Available Accessories Additional accessories for this item can be found in BLUEROCK ®... -
Page 9: Operations
Z 1 T / S C O R E D R I L L S T A N D Chapter Operations Note THOROUGHLY READ THROUGH THE ENTIRE MANUAL BEFORE OPERATING THIS ITEM! PURPOSE Ø The purpose of the Z1T/S Core Drill Stand is to mount to the BLUEROCK 4”Z1, 8”Z1, 10”Z1, 10”Z1 RB, 12”Z1 T/S and 12”Z1 LRBTS core drill motors Ø... -
Page 10: Mouting The Drill Motor To The Stand
Z 1 T / S C O R E D R I L L S T A N D 1) Top Bolt for Binding in Ceilings 2) Stand Mast 3) Feed Handle 4) Carriage Adjusting Bolt 5) Carriage Adjusting Bolt 6) Angle Adjusting Bolt 7) Drill Carriage 8) Vacuum Base Valve... - Page 11 Z 1 T / S C O R E D R I L L S T A N D § B) Lightly tap the plate/spacer into the stand carriage. § § C) Line up holes. Use 25mm bolts (1” length) with flat washers to tighten plate/spacer to stand carriage.
-
Page 12: Using The Stand
Z 1 T / S C O R E D R I L L S T A N D § Ø Instruction for 8”Z1 Motors 1) Affix 8”Z1 motor to stand carriage. § A) Use 2 thin keyways. Place 1 keyway into the stand carriage and gently tap into place. Place other keyway into drill motor and gently tap into place. - Page 13 Z 1 T / S C O R E D R I L L S T A N D Ø After placing the machine in work area, connect a safety chain or strap if necessary. A safety chain should attach to the machine (preferably through the carrying handle or O bolt) as well as attached to the work area in such a manner that prevents the machine from detaching or falling from the work area.
-
Page 14: General Maintenance
Z 1 T / S C O R E D R I L L S T A N D Chapter General Maintenance Ø Keep stand clean and free of debris. Ø Check for misalignment, binding and breakage of all moving parts. If damaged, repair tool before use. Occasional Maintenance Ø... -
Page 15: Parts List
Z 1 T / S C O R E D R I L L S T A N D Parts List... - Page 16 Z 1 T / S C O R E D R I L L S T A N D Breakdown View...
