Summary of Contents for EXCURSION PXA P6

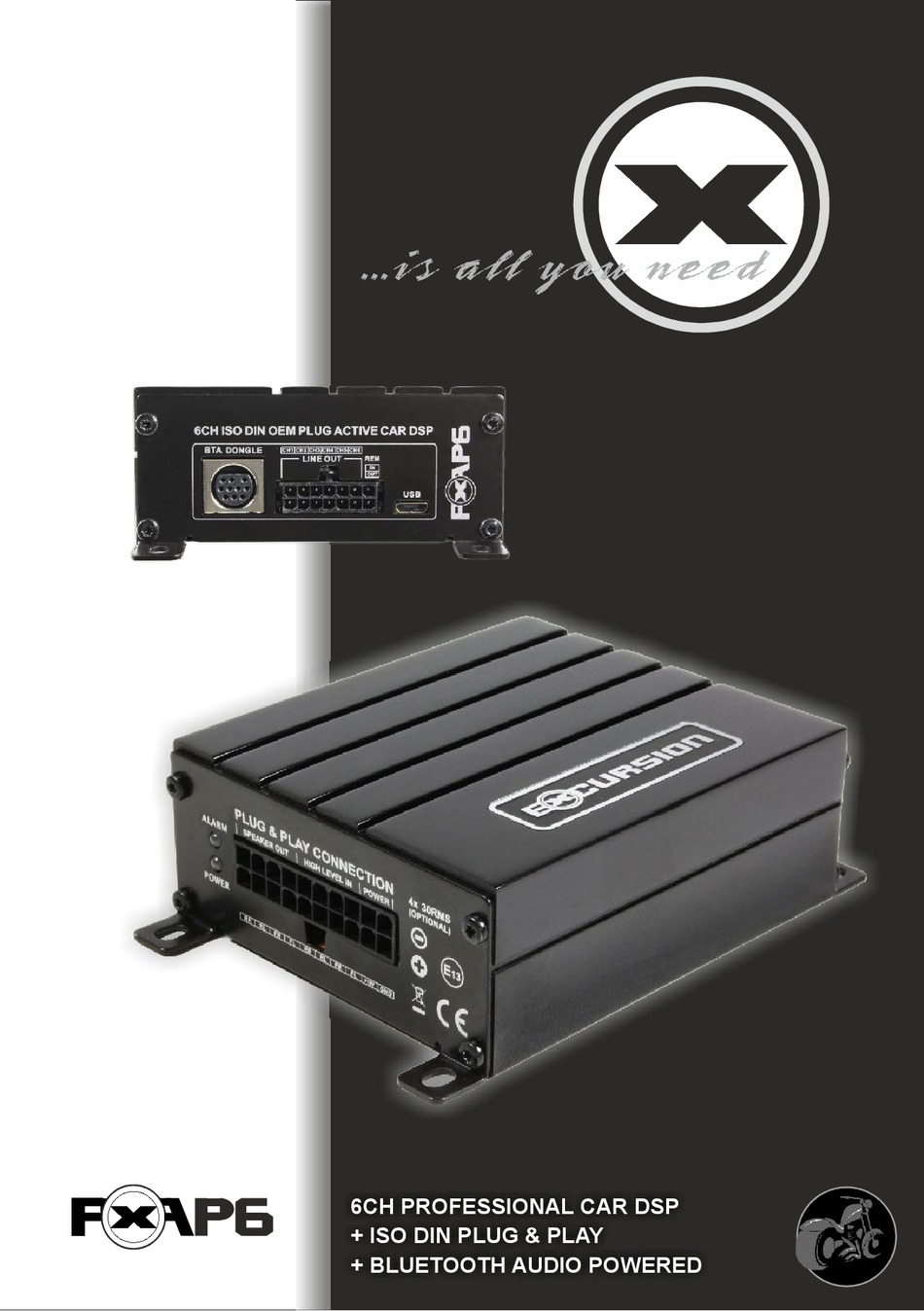

- Page 1 ...is all you need 6CH PROFESSIONAL CAR DSP + ISO DIN PLUG & PLAY + BLUETOOTH AUDIO POWERED...
- Page 2 170dB. Please observe all local sound ordinances while listening to your EXCURSION System. EXCURSION Intl. acceptss no liability for hearing loss, bodily injury, or property damage due to the result of use or missuse of this product.
- Page 3 ISO DIN Plug to 20 POL wire harness ensure fast and easy OEM Plug installa on of PXA P6. ISO DIN is the industrial standard in the OEM. A standard to meet most car Plug adap on or via another car specific to ISO Adapter.
- Page 4 EXCURSION PXA P6 Power supply DC8.5 -16V Working voltage: 0.32A Idling current: < 2.5mA Standby current: 9-16V Remote IN voltage: DC12.8V(380mA) Remote OUTvoltage: Signal Processor Distor on - THD @ 1 kHz, 1 VRMS Output: 0.02％ Bandwidth@ -3 dB: 20 ÷ 19.5K Hz...
-
Page 5: Front Panel Layout
Is provided with 6CH RCA Low Level signal Output. REM OUT to turn ON/OFF external amplifier. REM IN to turn ON/OFF PXA P6 if used as Head Unit device. 5. USB Use USB cable from accessory to connect PC to PXA P6 to adjust 6CH DSP se ngs. - Page 6 2 Female jack is insterted into ISO Plugs for Speaker & Power of the car. Former inserted to Headunit. 3 The 20Pol plug of PXI 6 or PXI 15 harness is inserted into the corresponding jack of the PXA P6...
- Page 7 As shown : 2. Precau ons for so ware installa on: Please download & install PXA DSP So ware first before connect PXA P6 to PC. So ware works on Windows Opera on System PC with following configura on: : Windows XP / Windows VISTA / Windows 7 / Windows 8 / Windows 10 CPU : 1.6 GHZ minimum...
- Page 8 EXCURSION 3. Introduc on PXA DSP So ware main interface: PXA DSP tuning so ware has 2 main tuning control interfaces: A) X-over and Equalizer Setup (default access a er start so ware) B) Time Delay and Level Setup...
- Page 9 EXCURSION Intl. offers limited warranty on EXCURSION products under normal use on the following terms: EXCURSION DSP & Amplifier are to be free of defects in material & workmanship for a period of one year This warranty applies only to EXCURSION products sold to consumers by Authorizied EXCURSION Dealers in Germany.
- Page 10 ...is all you need EXCURSION - A Division of CHPW All Rights reserved - Intl. Trademark No: 010 640 597 Friedrich-Ebert-Str. 42 - D-92637 Weiden / Germany Tel: (+49) 961-416 04 20 - Fax: (+49) 961-46 04 41 EASCA UROPEAN...
