1275 Grand Oaks Drive • Howell, MI 48843
517.548.0600 • Fax 517.548.0602
1275 Grand Oaks Dr.
Howell, Mi. 48843
(517)548-0600 - (517)548-0602 fax

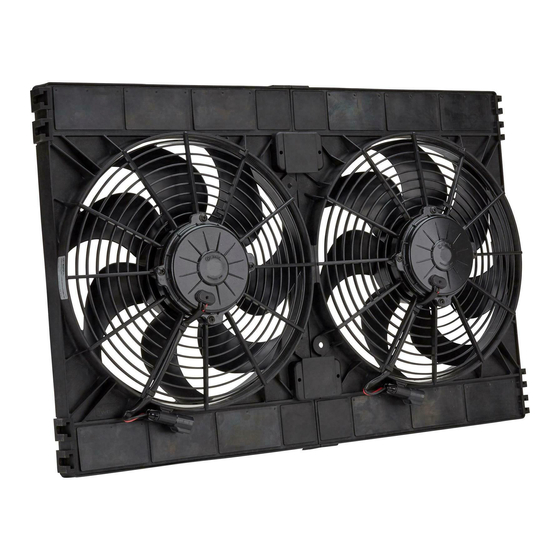

SP460 Dual Fan Kit
Instructions
SP460 Dual Fan Kit Instructions:
Thank you for purchasing our #SP460 Dual 11" Spal Fan Kit. The kit
should include the following parts:
-1ea. #SP846 Dual Spal Fan
-1ea. #SP195FH Fan Harness with 195 temp switch
-1ea. #SPFRH Fan Harness
-2 ea.#SP002 dual fan brackets
-1ea. mounting hardware kit
Advertisement
Table of Contents
Summary of Contents for DeWitts SP460
- Page 1 SP460 Dual Fan Kit Instructions SP460 Dual Fan Kit Instructions: Thank you for purchasing our #SP460 Dual 11” Spal Fan Kit. The kit should include the following parts: -1ea. #SP846 Dual Spal Fan -1ea. #SP195FH Fan Harness with 195 temp switch -1ea.
- Page 2 Step 1 Step 1 Mount the bracket to the fans with the ¼”-20 bolts, washers, and flange nuts provided in the hardware kit. With the bolt and washer on the top side of the fans and the nut to the bottom side of aluminum bracket, finger tighten all six bolts.
- Page 3 Step 3 Step 3 With the fan assembly positioned on the radiator, center the fans so they will fit on the radiator core and not run into the A arm assemblies or any other motor or clearance issues. In some cases the fans are not positioned exactly in the middle of the radiator core.
- Page 4 Last Step Wiring Last step Wiring Please follow the wiring instructions that came with the Spal wiring harnesses. Again, thank you for purchasing our SP460 Dual Fan upgrade. If you have any questions, please feel free to call.
