Installation and Maintenance Instructions
Model Saf-T Liner
Stainless Steel Chimney Liner
LISTED
! WARNING
Failure to follow the installation instructions
could cause FIRE, CARBON MONOXIDE
POISONING, OR DEATH. If you are unsure of
installation requirements, call the phone
number
listed
on
1.800.433.6341 or visit www.selkirkcorp.com.
IMPORTANT: A major cause of vent related fires is failure to
maintain required clearances (air spaces) to combustible
materials. It is of the utmost importance this Saf-T Liner be
installed only in accordance with these instructions.
Do not install this product until you have read and fully
Saf-T Liner has been tested and listed using all the supports,
sections, etc., described herein. Deletion or modification of any
of the required parts or materials may seriously impair the safety
of your installation, and void the conditions of certification and
Keep these instructions in a safe place for future reference.
the
instructions,
For Installation into an existing Masonry Chimney.
Saf-T Liner is designed for an installation by a qualified
person in accordance with local building codes.
4", 5", 6", 7" and 8" diameters - 9", 10", 12" and 14"
understand these installation instructions.
or the manufacturers warranty.
•
Stainless Steel 304 or 316
•
Continuous Laser Welded Seams
•
Straight Male and Female Ends
•
Tested & Listed to UL 1777
available upon request.
5030 Corporate Exchange Blvd
Grand Rapids, MI 49512
Call 800-433-6341
www.heatfab.com
1
Advertisement
Table of Contents
Related Manuals for HeatFab Saf-T Liner
Summary of Contents for HeatFab Saf-T Liner
- Page 1 IMPORTANT: A major cause of vent related fires is failure to maintain required clearances (air spaces) to combustible materials. It is of the utmost importance this Saf-T Liner be installed only in accordance with these instructions. Do not install this product until you have read and fully understand these installation instructions.
-
Page 2: Product Information
These heating appliances may not exceed the maximum continuous flue-gas outlet temperatures of 1000°F or cause condensation of corrosive acids on the liner, or create positive pressures in the chimney system. Saf-T Liner is not intended for Category II, III or IV burning appliances. See Table 1 for Technical Specifications. - Page 3 Saf-T Wrap is available for tee sections and in 24” lengths. Saf-T Wrap must cover the Saf-T Liner from the appliance tee or the top of the smoke chamber area to within 8” but not closer than 3” of the top of the masonry chimney.
- Page 4 DETERMINING THE LINER DIAMETER The Saf-T Liner must be properly sized for your heating appliance. The diameter of the Saf-T Liner for a single appliance shall not be less than the diameter of the appliance flue collar or that specified in the appliance manufacturer’s instructions.
- Page 5 If installing a hearth or fireplace insert stove using an existing masonry Saf-T Liner with fireplace chimney, the length of rigid Saf-T Liner required will be the distance Saf-T Wrap from the chimney top to the top of the smoke chamber. Listed stainless...
- Page 6 A variety of components are available to suit most installations such as Lengths, Adjustable Lengths, Elbows, Tees, Increasers, Reducers, Top Plates, Support Clamp, Cover Plate, Rain Cap and Saf-T Wrap. - Plan the installation of your appliance and Saf-T Liner in such a way that your connector run is as short and straight as possible.
-
Page 7: Top Plate

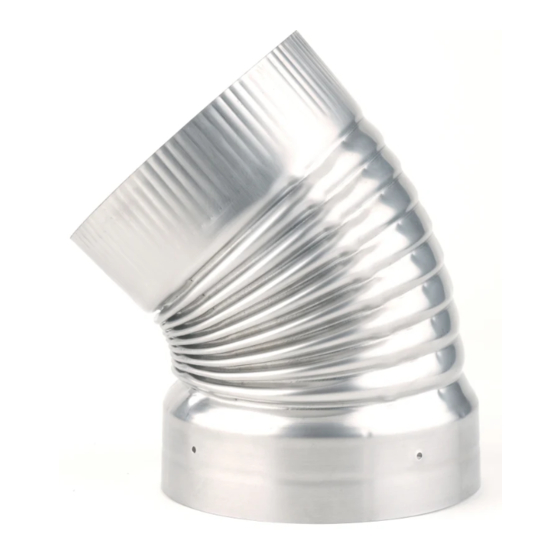

ELBOWS: Saf-T Liner fixed Elbows are available in 15°, 30°, 45° and 90°. An Adjustable 90° Elbow is also available. Elbows allow a change in direction in the system, can be used when an offset is needed or to connect to an insert. See Fig. 11. -
Page 8: Cover Plate
Top Plate. See Figs. 17 and 24. FIG.17 COVER PLATE: Saf-T Liner black Cover Plate provides a decorative finish to the installation of a side wall masonry chimney. See Fig. 18. FIG.18 SAF-T WRAP INSULATION: Saf-T Wrap is available in tee sections and 24”... -
Page 9: Masonry Chimney
These can be safely carried up a ladder to the chimney. However, always check overhead for antennaes, power lines, or other obstacles before erecting your ladder and installing liner. Preassemble the Saf-T Liner on the ground and check the overall length. - Page 10 Section HEARTHSTOVE AND FIREPLACE INSERT STOVE Insulate the first section of Saf-T Liner with a 24” section of Saf-T Wrap by closing the snap-lock seam and crimping with pliers. Slide the Saf-T Wrap down until it abuts the top of the appliance connector.
-
Page 11: Installing The Appliance
After completing the installation of the appliance it is required that the initial firing precautions of the appliance manufacturer’s instructions be strictly followed. Appliance Tee Cover Plate Cleanout Tee Black Saf-T Liner or Saf-T Pipe Cleanout Access Tee Cover 45° Elbows... - Page 12 As a result, creosote residue accumulates on the flue lining. When ignited, this can result in an extremely hot and possibly damaging chimney fire. The chimney connector and Saf-T Liner should be inspected frequently during the heating season and cleaned annually (more often if necessary) by a professional, certified chimney sweep.
-
Page 13: Professional Installation
*Selkirk products covered under this warranty: AFCL, ALT, BV (SD, MD, LD), DFS, DSP, DT, DWC/SWC, E, FC (JSC), GT, GTL, PL, QC, R, RF, RV, SAF-T LINER, SAF-T PIPE, SC (JM), SFCL, SPR, ST, U1, UPP, UT, UTL, VP, WV.
