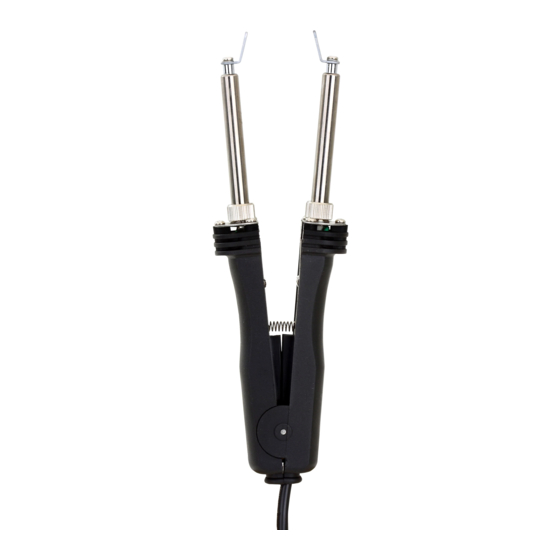

Tweezers soldering iron
Model ZD-409
Features:
Twin-tube heating, direct contact with the components, no impact on the
surrounding components.
• Especially suitable for rework on mounted circuit board.
• Energy-saving, high efficiency, suitable for circuit board components,
intensive soldering and desoldering.
• Working together with soldering station, it can remove flake resistor
and condenser and SOP elements.
• Rapid heating up and heat recovery.
Specifications:
1) When the 24V version tweezers soldering iron work with
our soldering station ZD-937,ZD-931, ZD-929(A/B/C).
The output power is 25W, Temp. range is 160-350'C
2) When the 24V version tweezers soldering iron work with
our soldering station ZD-981, ZD-916. The output power
is 48W.,Temp. range is 160-480'C
Code
Voltage
Power
88-4092 24V
25/48W
88-4093 110-130V
48W
88-4094 220-240V
48W
Advertisement
Table of Contents
Summary of Contents for Reichelt Tweezer ZD-409
- Page 1 Tweezers soldering iron Model ZD-409 Features: Twin-tube heating, direct contact with the components, no impact on the surrounding components. • Especially suitable for rework on mounted circuit board. • Energy-saving, high efficiency, suitable for circuit board components, intensive soldering and desoldering. •...
- Page 2 How to use: Plug in and this item will heat up in three minutes. Connect the two tips on welding spots for soldering and de-soldering performance in three seconds. Caution: 1. This application is not a toy, and must be kept out of children’s hands.
