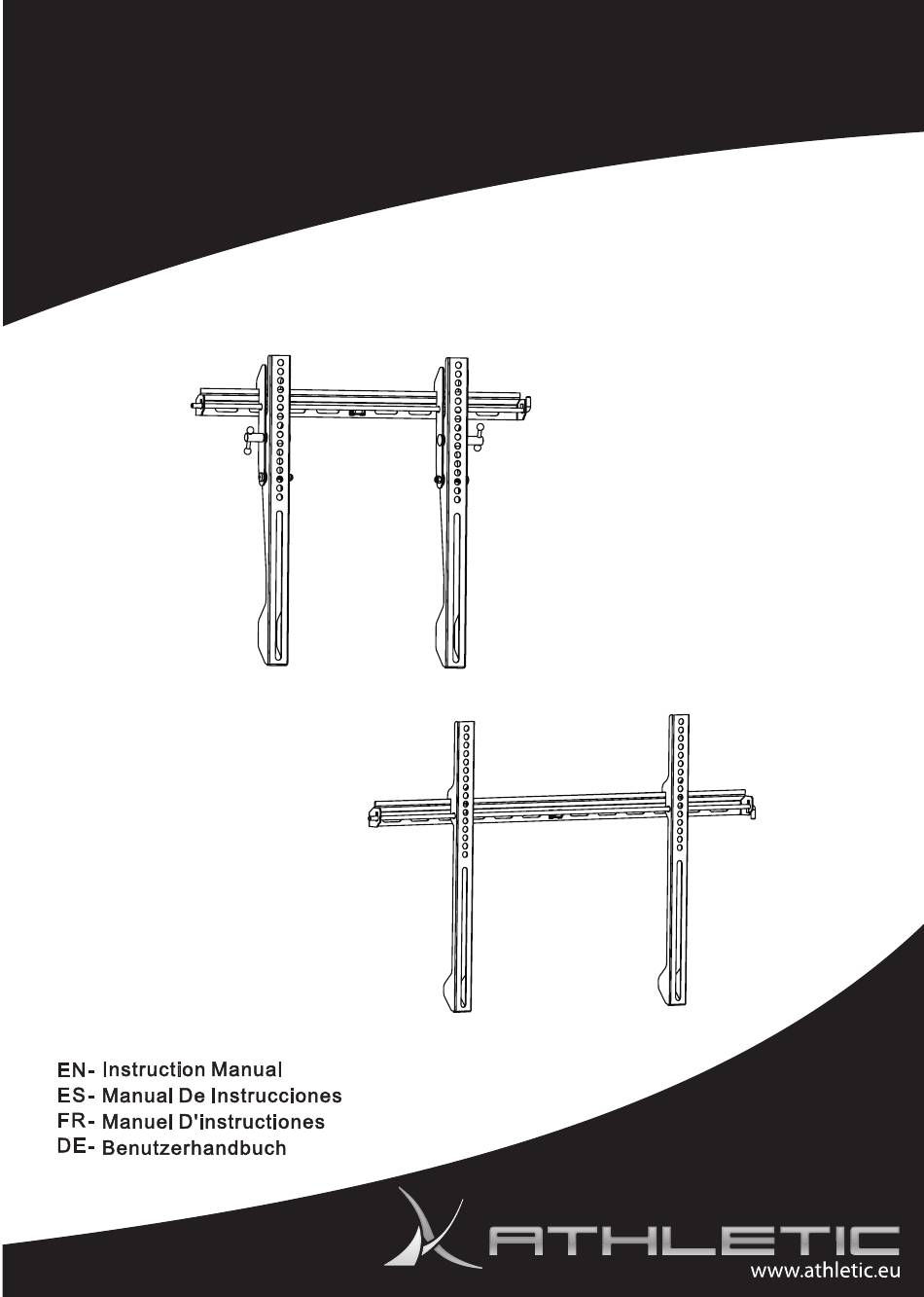

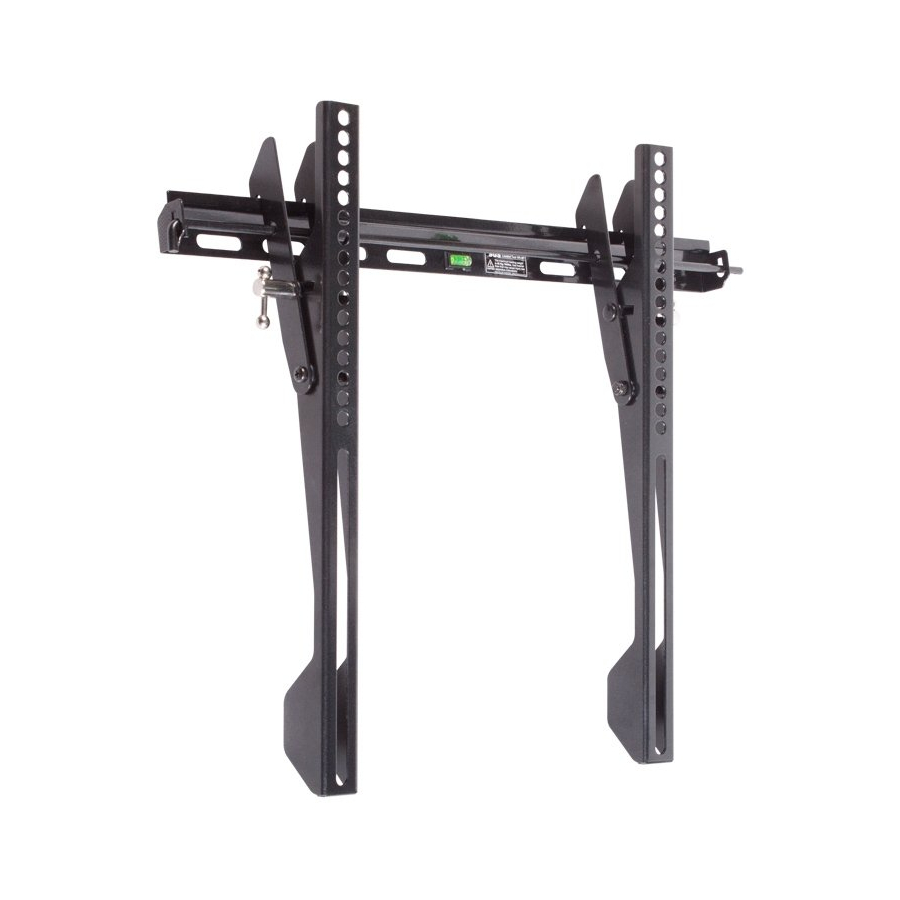

- Page 1 W9 Series Fixed & Tilt Flat Screen Mounts Medium/Large W9-MT/W9-LT W9-MF/W9-LF...
- Page 2 or brick wall. CAUTION:The maximum loading weight is 100lbs /150lbs, Use heavier than that may cause injury see apparatus instructions. Este producto ha sido diseñado para su uso en una pared vertical interpretarse de albañilería (cemento sólido) o vigas de madera o pared de ladrillo. Los postes de madera deben tener un mínimo de 2x4 pulgadas.Para una instalación segura en la pared se va a instalar debe ser compatible con 4 veces el peso de la carga total, si no, la superficie debe ser reforzada para cumplir con esta norma.
- Page 3 Drill Socket Wrench Philips Screwdriver Pencil Hammer Stud Finder W9-MF/W9-LF W9-MT/W9-LT W9-MF/W9-LF/W9-MT/W9-LT Wall Bracket X1 W9-MF/W9-LF/W9-MT/W9-LT Safety Latch Rod X1 Flat Screen Fixed Bracket X2 Flat Screen Tilt Bracket X2 W9-MF/W9-LF W9-MT/W9-LT Wall Anchors Lag Bolts ST6.3x50mm W9-MF / W9-MT W9-LF / W9-LT Round Round...
- Page 4 Wall Bracket Installation Steps for Wood Studs Select desired height. Use Wall Bracket as template to Locate studs with stud finder. Mark stud mark drilling locations with pencil. edge and center location with pencil. Use level to ensure proper alignment. Stud Stud drill pilot holes...
- Page 5 Wall Bracket Installation Steps for Concrete Select desired height. Use Wall Bracket as template Drill pilot holes at marked locations. to mark drilling locations with pencil. Use level to ensure proper alignment. Drill drill pilot holes W9-MF / W9-MT drill pilot holes W9-LF / W9-LT W9-MF / W9-MT mark drilling locations X2 Pilot Hole Size...
- Page 6 Flat Screen Bracket Attachment Steps Align Flat Screen Bracket with VESA hole pattern on back of Flat Screen. Secure with appropriate screw size and washers from Monitor Kit as illustrated. Be sure to carefully align the holes of the brackets with the mounting holes on the flat screen Proper Screws from Monitor Kit Spacers M-I...
- Page 7 Align Safety Latch Rod (C), with holes in Wall Bracket (B) and Flat Screen Brackets (A). Slide rod completely in and turn clockwise to secure bracket into place. Use Tool-Free Adjustment lever to tilt and lock Flat Screen into place. -3 ~10 a.Turn lever counter clockwise to adjust angle.
