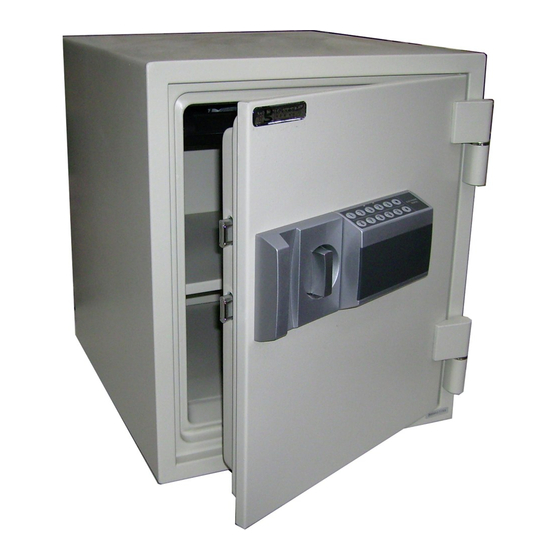

Defiance Safe ESD104-A-HL Instruction Sheet

Defiance Safe 1 Hour Fire Safe Instruction Sheet

How to open your Electronic Digital Lock

1.
Press ENTER (Green lamp lights up)
2.
Press 7 7 7 7 (Factory default code)
3.
Press END button (same as Enter)
You will hear an "OK" melody. Within 4 seconds
turn the knob right and open door

How to set your personal code

User's can hold personal numbers between 2 to 17 digits long.
To Change Pin Method One
1. Open the door using existing code
2. Press the Button on the INSIDE of door
3. Enter your NEW CODE
4. Press the END button (same as enter)
5. You will hear an "OK" Melody
6. Check new number
ENTER -> CODE ->END

Notes on changing personal codes

1. Always check the new code with the DOOR OPEN
2. Old numbers shall be replaced with new one
3. Codes must be between 2 and 17 digits long
4. Long delays between entering numbers may cause problems. After pressing the
button on the inside of door you must enter the code within 5 seconds

Troubleshooting

Problem: When code is entered Red lamp turns on and "ERROR" Melody played
Cause: Incorrect opening sequence was used (safe has detected incorrect code)
Solution: Check code and try again
Problem: Safe won't work or Safe won't open after setting code
Cause: Incorrect opening or setting sequence was used 3 times in a row and the safe has
detected incorrect code. This triggers a time delay before re-entering the code
Solution: Allow safe "Time Out" for 10 min.
Problem: All key buttons do not work except STORE key
Cause: The button on the inside of door was held in and not pressed.
Solution: This places the safe in protective mode. To remove this mode, enter the code as per
normal except substitute the "Store" button for "Enter". EG STORE -> Personal Code -> End.
Then open the safe as per normal ENTER -> Personal Code -> End
Defiance Safe Model ESD104-A-HL
Issue 5 1-08
To Change Pin Method Two
1. Press the STORE button
2. Enter the existing code
3. Press the Enter button
4. Enter your NEW CODE
5. Press END button (same as Enter)
6. You will hear an "OK" Melody.
Check new number
7. ENTER -> CODE ->END
