Summary of Contents for JTECH EX-HDBT-219

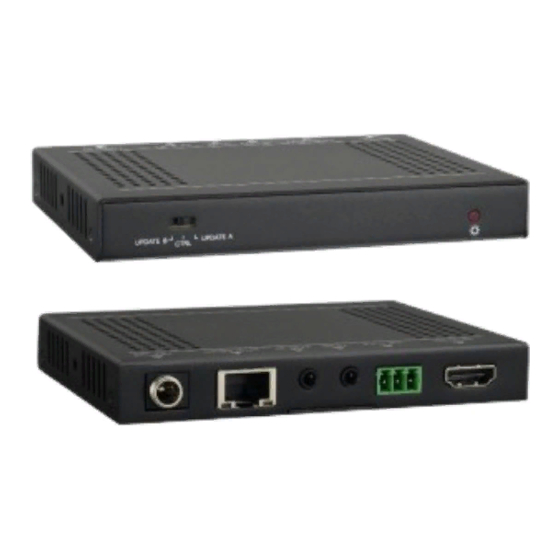

- Page 1 User Manual JTECH-EX-HDBT-219 HDMI2.0 HDbaseT Extender 131ft/40m 4K/60Hz (4:4:4) All Rights Reserved Version: JTECH-EX-HDBT-219_2017V1.0...
- Page 2 1 x User Manual Introduction The JTECH-EX-HDBT-219 is an ultra-thin HDMI2.0 extender that uses the latest HDbaseT standards. It extends 1080p/4K HDMI signal up to 70m/40m (respectively), over CAT5e/CAT6a cable. Transmit IR and RS232 pass-through to control source or display device remotely. It also utilizes a visually lossless video compression technology (VLC) to ensure a HD lossless transmission of HDR and 4K@60Hz/4:4:4 over CAT5e/CAT6a cable.
- Page 3 JTECH-EX-HDBT-219 Features ▪ Supports 4K/UHD/60Hz/4:4:4. ▪ Supports HDMI2.0 & HDCP2.2, and is backward compatible with HDCP 1.4. ▪ Maximum transmission distance is up to 131ft (40m) for 4Kx2K, and 229ft (70m) for 1080p. ▪ Supports CEC, IR and RS232 pass-through for long-distance control.
- Page 4 JTECH-EX-HDBT-219 Specification Model Transmitter Receiver Spec Input HDMI IN HDBT IN Output HDBT OUT HDMI OUT Control Ports IR IN, IR OUT, RS232 IR IN, IR OUT, RS232 General HDBaseT; 1080p ≤ 229ft (70m); 4K×2K ≤ 131ft (40m) Transmission Mode & Distance Resolution Up to 4K×2K@60Hz 4:4:4...
