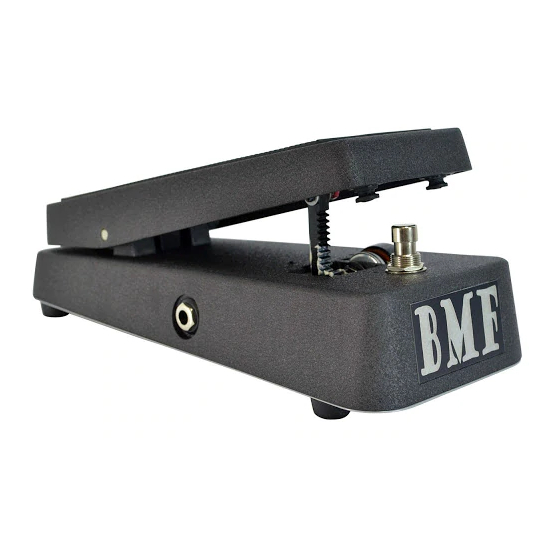

BMF Effects BMF Wah Quick Start Manual

Thank you for purchasing the BMF Wah pedal from BMF Effects. Operation is as follows...

INPUT

– Signal input from the guitar.

OUTPUT

– Signal output to the amp.
PLEASE REMOVE THE PROTECTIVE FILM FROM THE FRONT BADGE PLATE
Internal Controls –
4 Position DIP Switch – Turns the buffer on and off.
Trim Knob – Adjusts the volume of the buffer when the pedal is engaged.
The BMF Wah can be powered by either a 9v battery or with a negative tip 9v power supply such as the Boss PSA-
120 or the Voodoo Labs Pedal Power 2 Plus.
The BMF Wah has a built-in buffer that can be switched on and off via the internal DIP switches. This diagram shows
the correct positions for the on and off settings.
NOTE – THE PEDAL WILL ONLY WORK CORRECTLY WITH THESE SETTINGS!
All BMF Effects pedals come with a transferable five (5) year warranty except for the foot switch which carries a three
(3) year limited warranty from the date of purchase. The following items are not covered by this warranty.
1) Damage due to acts of nature or deities.
2) Damage due to abuse or neglect including use of an improper or incorrect power supply.
3) Damage due to unauthorized modification or repair.
There are no user serviceable parts in BMF Effects pedals. Unauthorized modifications or repairs void the warranty.
All repairs are handled directly through BMF Effects and must be accompanied by a repair authorization number;
please contact sales@bmfeffects.com should you need one. Should you ever have any questions regarding proper
usage of a BMF Effects product or this warranty, please do not hesitate to contact me.
Thanks again for choosing BMF Effects.
Scott Kiraly
www.bmfeffects.com
sales@bmfeffects.com
BMF Effects
Great tone made simple.

Using the Built-In Buffer

Warranty
