Agnetix A3 1200 Product Manual

Agnetix

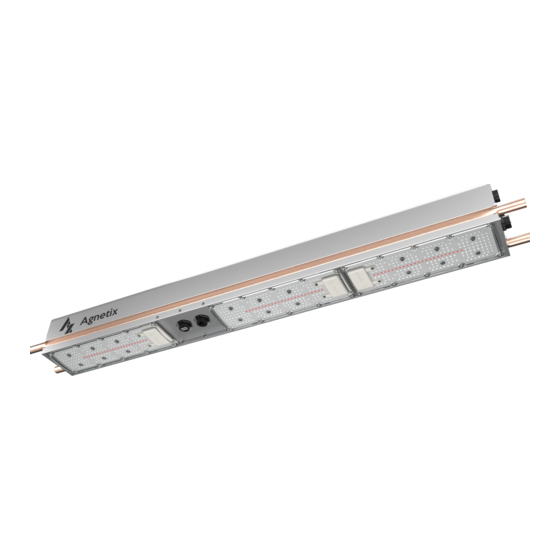

Agnetix A3 1200
The Agnetix Liquid-Cooled Intelligent LED Horticulture System
is designed for greater operational efficiency and improved
yields. By leveraging our innovative platform, customers can
positively impact their bottom line with higher output, lower
costs and better quality.
Please read and understand these installation instructions.

PRODUCT SPECIFICATIONS

PHYSICAL
POWER
OPTICAL
© 2019 Agnetix Inc. All Rights Reserved. Specifications subject to change
AgnetixÊA3-1200-001Ê0717
180V-250VÊ5AÊMaxÊorÊ277VÊ1265WÊMax ¨
Suitable for Wet Locations
Convient Aux Emplacements Mouilles
Power
Efficacy
Spectrum
Beam Angle
Cooling
Housing
Dimensions
Tube Length
Weight
Mounting
Lens
Voltage
Current
Power
PF
Frequency
Connector
Modules
LEDs
Efficacy
Beam Angle
Product Guide – Specifications & Installation

Key Features

• Highly-Efficient, Liquid Cooled System
• Simple Installation
• Low Maintenance
• High Powered
• Suitable for Wet Locations
• ETL Listed
1200W
2.23 µmol/J (A3 - Standard Density)
2.45 µmol/J (A3 - DD Double Density)
White (5000K) + 660nm Red (others by request)
120º
Twin 1/2" Copper Tubes (1-3gpm/tube)
Aluminum Extrusion
36" x 4" x 5"
40"
15 Lbs
Through bolts on Light Spine (Bolts not included)
Injection molded plastic
180-300 VAC
5 Amps max
1200W (Wattage reduced under 240V)
>0.95
50/60 Hz (Generator compatible)
Male 3-pin industrial type, UL2237
3
5000K + 660nm
2.23 µmol/J (A3 - Standard Density)
2.45 µmol/J (A3 - DD Double Density)
120º
7965 Dunbrook Road - Suite I - San Diego, CA 92126
Agnetix A3 1200
agnetix.com 1
