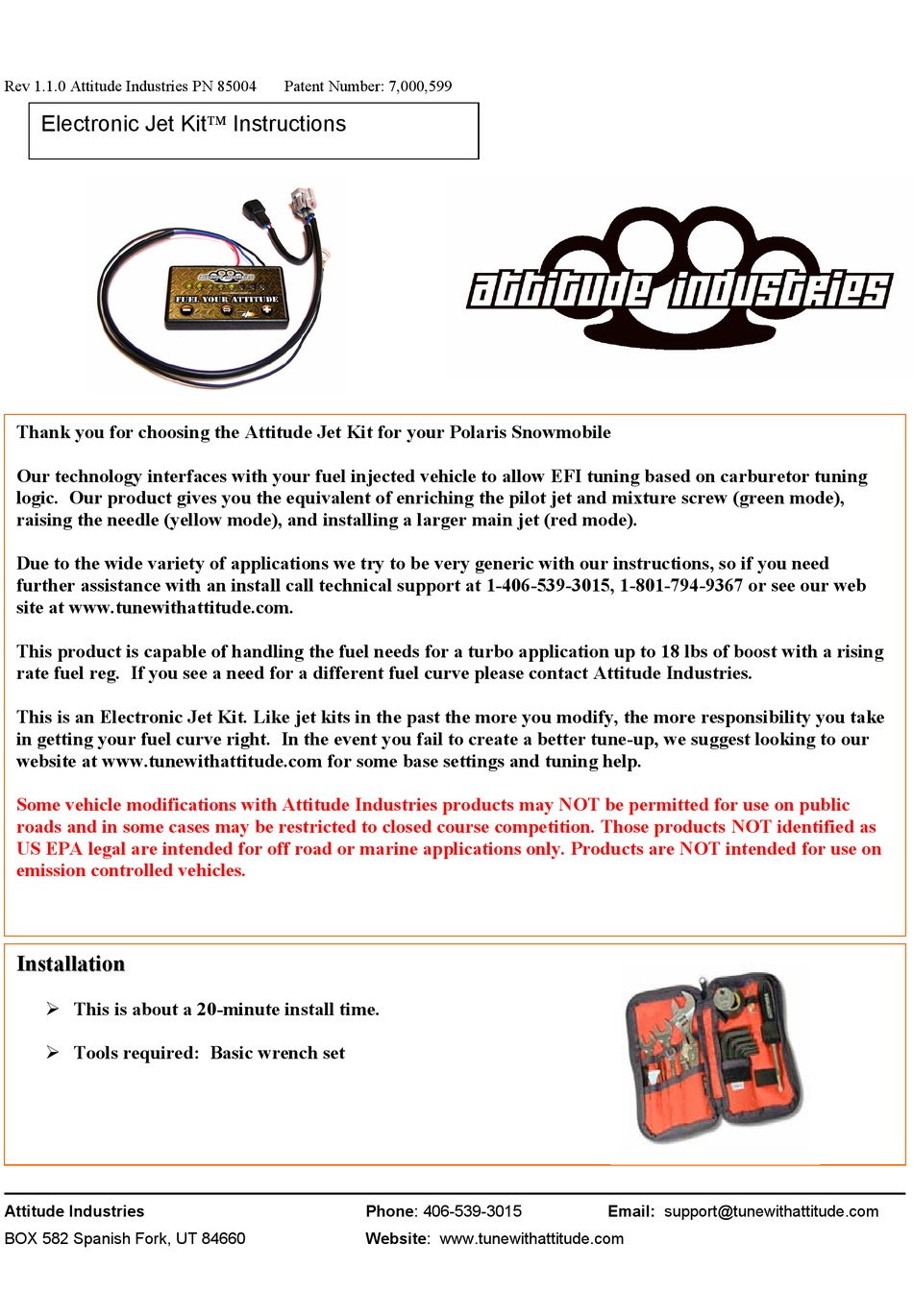

Rev 1.1.0 Attitude Industries PN 85004
Electronic Jet Kit Instructions
Thank you for choosing the Attitude Jet Kit for your Polaris Snowmobile
Our technology interfaces with your fuel injected vehicle to allow EFI tuning based on carburetor tuning
logic. Our product gives you the equivalent of enriching the pilot jet and mixture screw (green mode),
raising the needle (yellow mode), and installing a larger main jet (red mode).
Due to the wide variety of applications we try to be very generic with our instructions, so if you need
further assistance with an install call technical support at 1-406-539-3015, 1-801-794-9367 or see our web
site at www.tunewithattitude.com.
This product is capable of handling the fuel needs for a turbo application up to 18 lbs of boost with a rising
rate fuel reg. If you see a need for a different fuel curve please contact Attitude Industries.
This is an Electronic Jet Kit. Like jet kits in the past the more you modify, the more responsibility you take
in getting your fuel curve right. In the event you fail to create a better tune-up, we suggest looking to our
website at www.tunewithattitude.com for some base settings and tuning help.
Some vehicle modifications with Attitude Industries products may NOT be permitted for use on public
roads and in some cases may be restricted to closed course competition. Those products NOT identified as
US EPA legal are intended for off road or marine applications only. Products are NOT intended for use on
emission controlled vehicles.
I
n
s
t
a
l
l
a
t
i
o
n
I
n
s
t
a
l
l
a
t
i
o
n
This is about a 20-minute install time.
Tools required: Basic wrench set
Attitude Industries
BOX 582 Spanish Fork, UT 84660
Patent Number: 7,000,599
Phone: 406-539-3015
Website: www.tunewithattitude.com
Email: support@tunewithattitude.com
Advertisement
Summary of Contents for attitude industries Electronic Jet Kit
- Page 1 If you see a need for a different fuel curve please contact Attitude Industries. This is an Electronic Jet Kit. Like jet kits in the past the more you modify, the more responsibility you take in getting your fuel curve right. In the event you fail to create a better tune-up, we suggest looking to our website at www.tunewithattitude.com for some base settings and tuning help.
-
Page 2: Installation
Electronic Jet Kit Instructions Installation 1. Remove LH side panel and black cover over the clutch guard to gain access to the ECU. (see figure 1) 2. Then remove the ECU plug that is located closer the engine or center of sled (see figure 2) 3. - Page 3 Electronic Jet Kit Instructions Polaris Figure 1 Figure 2 Attitude Industries Phone: 406-539-3015 Email: support@tunewithattitude.com Figure 3 BOX 582 Spanish Fork, UT 84660 Website: www.tunewithattitude.com...
- Page 4 Electronic Jet Kit Instructions Figure 5 Figure 6 Figure 4 Attitude Industries Phone: 406-539-3015 Email: support@tunewithattitude.com BOX 582 Spanish Fork, UT 84660 Website: www.tunewithattitude.com...
- Page 5 Electronic Jet Kit Instructions Start the vehicle. If installed correctly the unit will begin its startup sequence where the LED’s display a single green light scrolling back and forth for a couple of seconds. After the startup sequence a single green light should be displayed on the very left LED. With an improper installation the light display will consist of a flashing green light to the left and a flashing red light to the right.
- Page 6 Electronic Jet Kit Instructions Start-Up Light Sequence General Layout Mode 1 – Green Mode 3 – Red Mode 2 – Yellow Mode 4 – Green / Blue Mode 6 – Red / Blue Mode 5 – Yellow / Blue Attitude Industries Phone: 406-539-3015 Email: support@tunewithattitude.com...
- Page 7 Electronic Jet Kit Instructions Tuning Tips 1. Use the Green to adjust your cruise circuit. If you see a rich idle you need to adjust your fuel pressure. Please contact the vendor of your turbo kit for their base fuel pressure setting they recommend or contact attitude industries for what we recommend.
- Page 8 Electronic Jet Kit Instructions Attitude Industries Phone: 406-539-3015 Email: support@tunewithattitude.com BOX 582 Spanish Fork, UT 84660 Website: www.tunewithattitude.com...
- Page 9 Electronic Jet Kit Instructions Attitude Industries Phone: 406-539-3015 Email: support@tunewithattitude.com BOX 582 Spanish Fork, UT 84660 Website: www.tunewithattitude.com...
