RV-10 Rear Seat Headrest Installation Guide

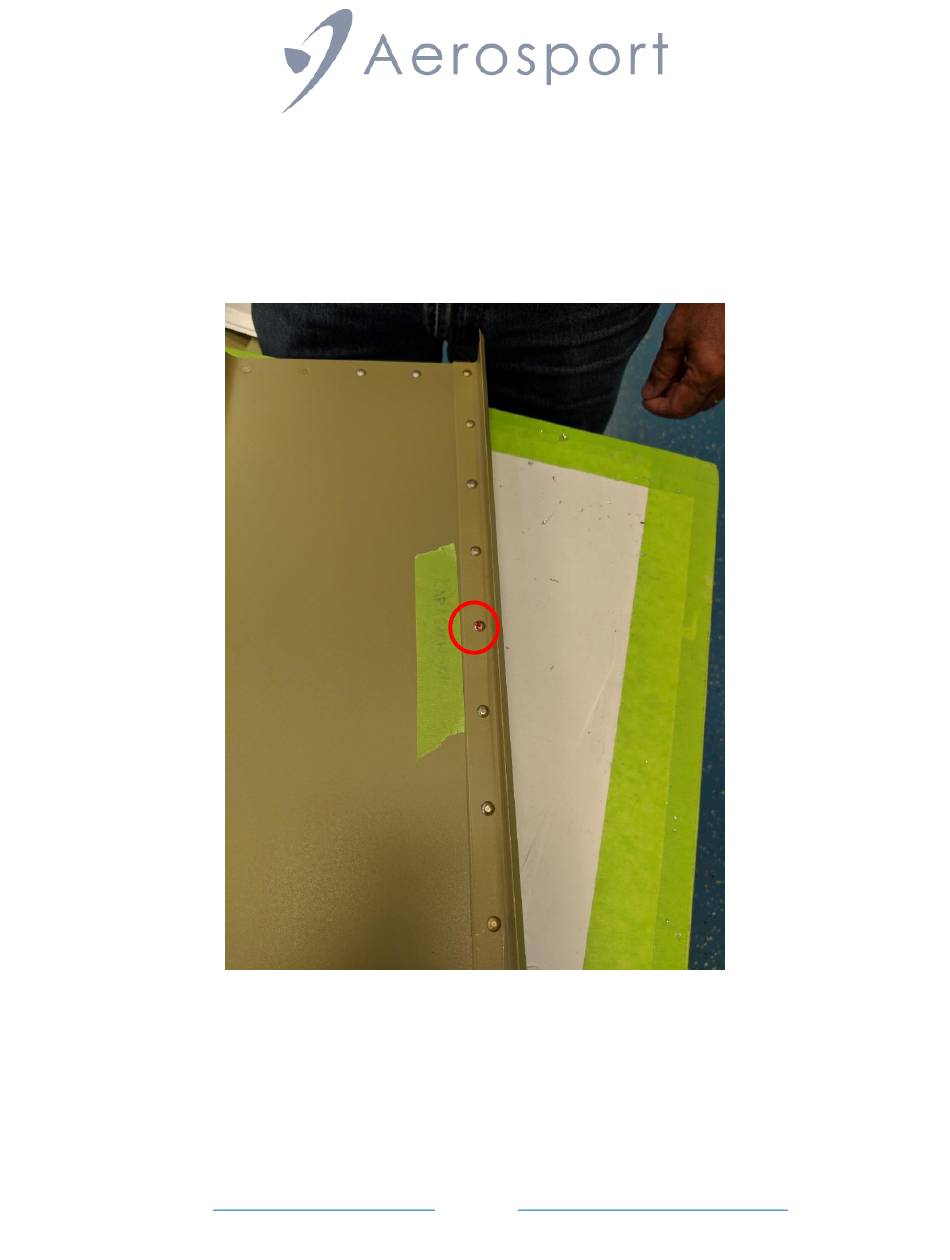

1. On the back side of the seat, mark the center rivet with a marker/pen.
This rivet will be drilled out.
1
Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110
Tel: 614.834.8659 | Fax: 614.834.5230
E-mail
info@aerosportproducts.com
| Website
http://www.aerosportproducts.com
Advertisement
Summary of Contents for Aerosport RV-10
- Page 1 RV-10 Rear Seat Headrest Installation Guide 1. On the back side of the seat, mark the center rivet with a marker/pen. This rivet will be drilled out. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com...
- Page 2 2. Using a #20 drill bit, drill out the center rivet. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com | Website http://www.aerosportproducts.com...
- Page 3 3. This should be your result. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com | Website http://www.aerosportproducts.com...
- Page 4 4. Using a ruler, measure from the outside edges of the L brackets to find your center line. The center rivet you drilled out should be directly in the center. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com...
- Page 5 5. Mark the center line. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com | Website http://www.aerosportproducts.com...
- Page 6 6. Using your center line, place the center hole of the head rest bracket directly over your center line/center rivet location. The bracket channels will be facing down. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com...
- Page 7 Place an 8-32 pan head screw in each location as you move around all four holes to ensure that the bracket does not shift. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com...
- Page 8 #2 Phillips head screwdriver on the screw side, tighten all four nuts down. DO NOT OVER TIGHTEN! Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com...
- Page 9 9. After all screws are tightened and in place move to what would be the top of the head rest bracket and drill out the lower two holes using a #43 drill bit. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com...
- Page 10 10. After drilling out the holes you will need to tap the bracket as well as the metal behind it. Use a 4-40 tap. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com...
- Page 11 11. Screw in the supplied threaded ball detent with the head rest bar in place. Tighten until there is less than 1/16" of play. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com...
- Page 12 The detent will sit almost flush with the mating surface. Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com | Website http://www.aerosportproducts.com...
- Page 13 Thank you for purchasing the Aerosport Rear Seat Head Rest Kit. You are now ready to enjoy a whole new level of comfort! Aerosport Products | 8090 Howe Industrial Parkway | Canal Winchester, 43110 Tel: 614.834.8659 | Fax: 614.834.5230 E-mail info@aerosportproducts.com...
