Summary of Contents for ZERNET Z3001

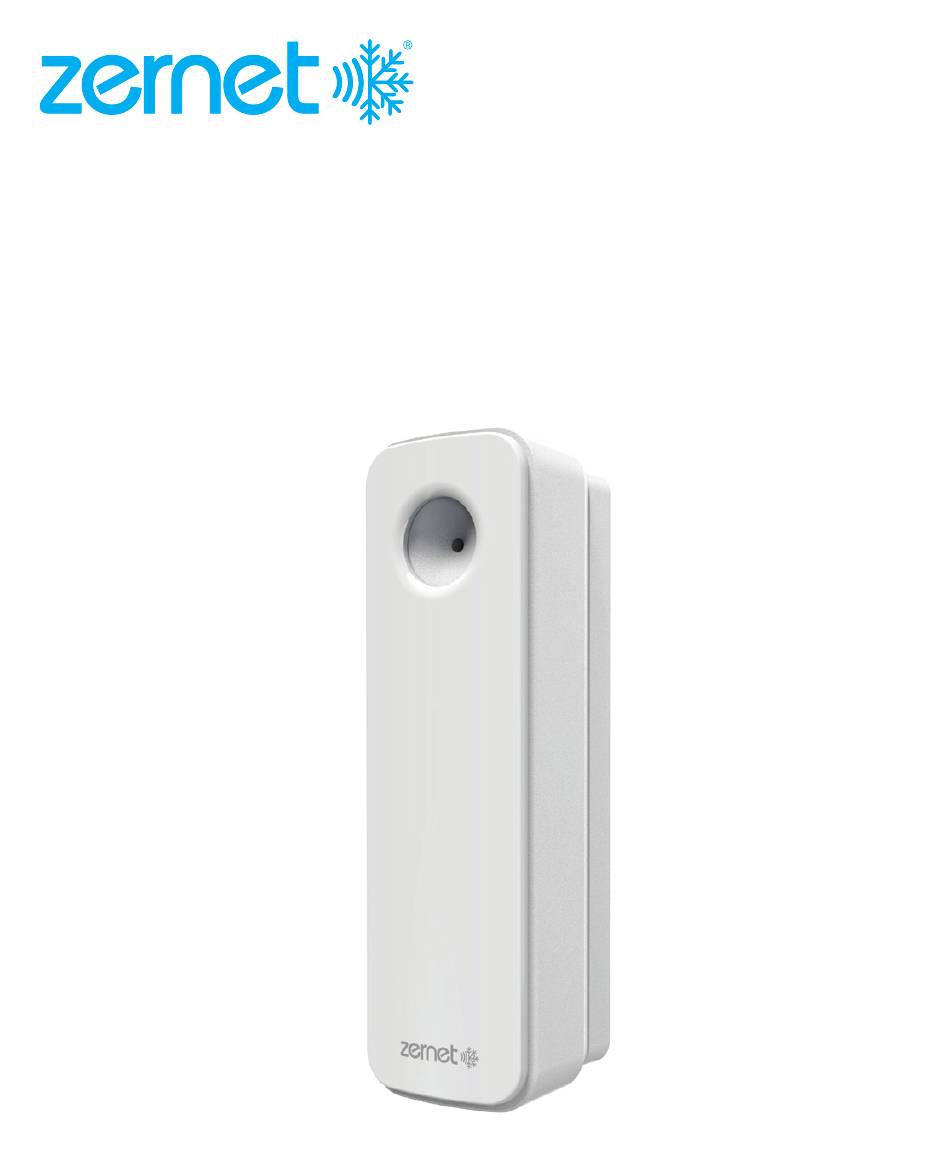

- Page 1 Temperature and Humidity Sensor Installation Guide Z3001 www.zernet.com...
- Page 2 Product compatibility The Zernet Temperature and Humidity Sensor works exclusively with a Zernet Controller. Items included in box Mounting screws and PVC wall plug (2pcs each) T e m p e r a tu a n d H u m id...
- Page 3 Installation Steps (For wired DC power application) Step 1 Hold the wall mount bracket flat against the wall where it is going to be installed. Ensure that the bracket position is level (horizontal) using a level ruler. Step 2 Mark the mounting screw holes positions on the wall using a pencil.
- Page 4 Step 4 Insert the PVC wall plugs into the holes on the wall. Step 5 Carefully route the DC wires at the back of the wall mount bracket. Step 6 Align the screw holes of the wall bracket to the holes on the wall.
- Page 5 Step 7 Unfasten the terminal screws at the bottom of the Temperature and Humidity Sensor, then insert the DC wires into the correct wire terminals. Fasten the screws and pull gently to ensure the wires are properly connected. Note: Red LED will light up if the DC wires are not wired to the correct terminals.
- Page 6 Carefully slot in the Temperature and Humidity Sensor into the wall mount bracket. Refer to the Zernet User Manual to pair the installed Temperature and Humidity Sensor to your Zernet Controller. For warranty information please go to www.zernet.com/warranty Copyright © Zernet Ltd 2020. All rights reserved.
