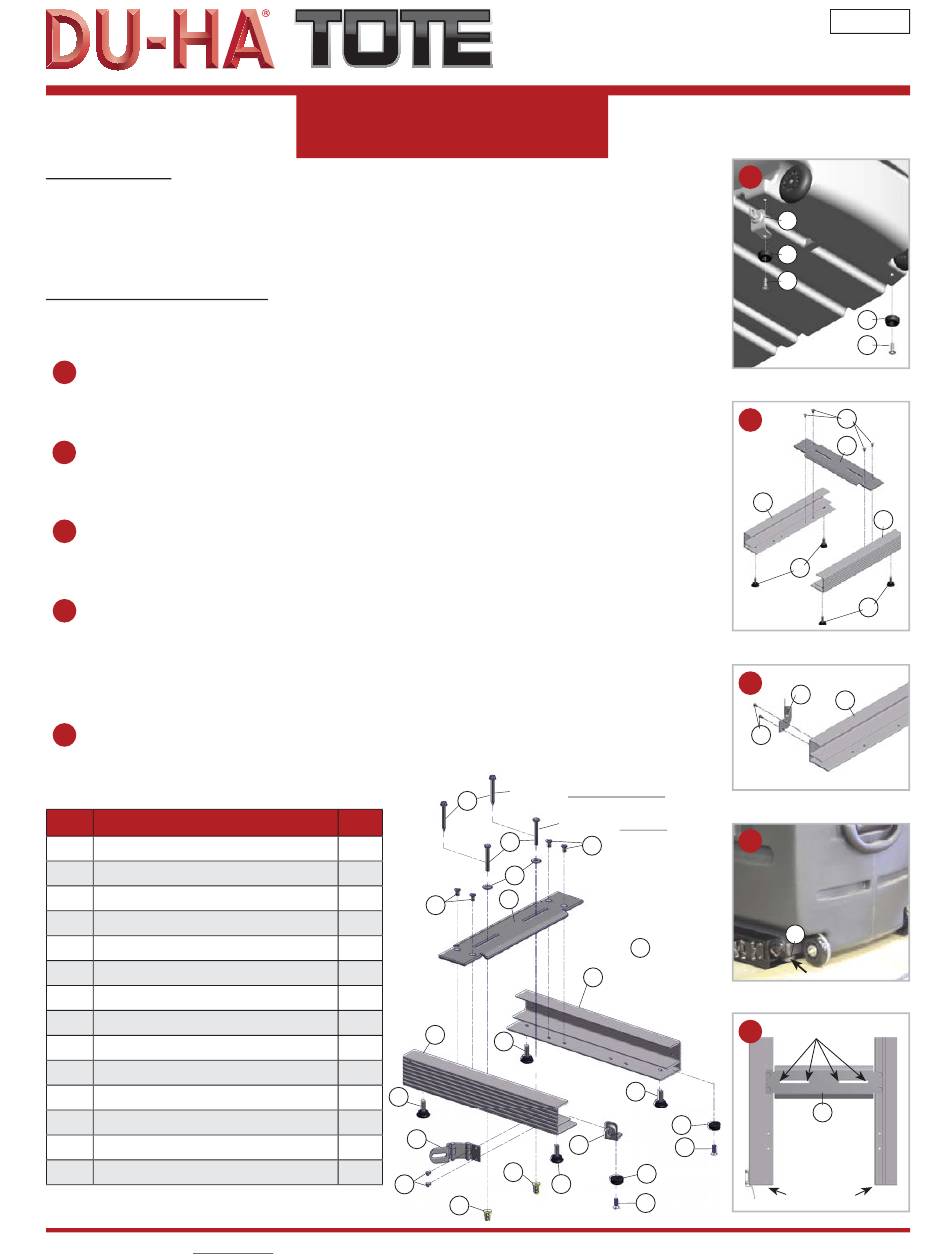

DU-HA Tote 70104 Installation Instruction

Tote Slide Bracket
Tools Needed:
// Allen Wrench – 5/32"
// Socket – 7/16"
// Socket – 3/8"
// Phillips Screwdriver – #3
Installation Instructions:
The Tote may be placed on either side of the truck bed. It is recommended that the lid open towards the
middle of the truck bed for ease of access inside the Tote.
On the end of the Tote that will face the rear of the vehicle, attach one Stopper (I) to the Tote
1
in each corner with one Bolt – 1/4" x 3/4" (J) and attach the Lock Swivel (M) in desired corner, as
pictured.
Attach the Base Plate (A) to each Channel (B) with two Screws – Flat Head 1/4" x 1/2" (C)
2
using an Allen Wrench – 5/32". Insert the four Adjustable Feet (N) into the pre-drilled holes in
the bottom of each Channel (B).
Attach the Lock Latch (K) in the pre-drilled holes on the side of the Channel (B) with two Screws –
3
#8 x 5/16" (L) using the Phillips Screwdriver. (Note: Make sure the location of the Lock Latch (K)
corresponds with the Lock Swivel (M) you attached to the Tote in Step 1.)
Place the Tote and Base Plate (A) with Channels (B) into the vehicle in desired location.
4
Slide the Tote into the Base Plate (A) with Channels (B) until the Stoppers (I) contact the Channels.
Note: Make sure the Lock Latch (K) and the Lock Swivel (M) are aligned and function properly.
Make sure the Tote is positioned properly and the tailgate of the vehicle closes without contacting
the Tote. It is recommended to have at least 1" clearance in between the Tote and the tailgate.
Make marks at the location of the Base Plate (A), as pictured, using a marker or pencil. Hold the
5
bracket fi rmly in place and remove the Tote.
Continued on Page 2...
Part Description
A Base Plate
B Channel
C Screws – Flat Head 1/4" x 1/2"
D Jack-Nut – 1/4"
E Nut – 1/4" (used in SUV install only)
F Self Tapping Screws – 1/4" x 2-1/2"
G Bolt – Hex Head 1/4" x 2-1/2"
H Washers – Flat 1/4"
I Stoppers
J Bolt – 1/4" x 3/4"
K Lock Latch
L Screws – #8 x 5/16"
M Lock Swivel
N Adjustable Feet
DU-HA, Inc. // website: www.du-ha.com
PICKUP TRUCK
// Drill
// 7/16" Drill Bit
// Marker or Pencil
// Jack-Nut Friction Wrench (supplied)
Qty
1
2
4
2
2
2
2
4
(2 used in SUV install)
2
2
1
N
2
1
4
L
// phone: 1.866.306.DUHA (3842)
// Pliers
Option I — Self Tapping Screws
F
Option 2 —
G
C
H
A
C
B
B
N
K
M
D
N
D
// fax: 1.218.998.4013 //
Installation Instruction
Fits DU-HA Tote Part Number: 70103
1
M
I
J
2
B
3
L
Jack-Nuts
4
E
Not pictured.
5
N
I
J
I
J
306 Saint Andrews Street South, Fergus Falls, MN 56537
70104
I
J
C
A
B
N
N
K
B
I
Mark Locations
A
Rear of Vehicle
