All Weather Electronic Ignition System Upgrade
Installation and Operation Guide
ATTENTION:
Electronic Ignition System (AWEIS). Failure to adhere to these instructions may result in
a possible fire hazard, explosion, property damage, serious injury or loss of life. Do not
discard this installation guide, it must remain with fire feature.
ATTENTION:
service agency or gas supplier. Your installer must follow these instructions carefully.
Architectural Pottery and their affiliates are not responsible for the actions of the installer
or misuse of products.
California Residents Prop 65 Warning: Operating, servicing and maintaining this appliance can expose you to chemicals including carbon
monoxide and brass which are known to the State of California to cause cancer, birth defects or other reproductive harm.
APF Burner System With
Please carefully read this instructions prior to installing your All Weather
Installation and service must be performed by a qualified gas installer,
Table Of
2
3
4
5
7
9
10
11
12
For more information go to www.Prop65Warnings.ca.gov
Contents
Gas and Electrical Requirements
Parts List
Burner Assembly
Product Installation
Troubleshooting
Product Maintenance
Product Operation
Automated Pool Controller Wiring
Warranty
Advertisement
Summary of Contents for ARCHPOT AWEIS
- Page 1 ATTENTION: Please carefully read this instructions prior to installing your All Weather Electronic Ignition System (AWEIS). Failure to adhere to these instructions may result in a possible fire hazard, explosion, property damage, serious injury or loss of life. Do not discard this installation guide, it must remain with fire feature.
- Page 2 Recommended Wire Size: 12-gauge wire for all installations Daisey Chain Wiring of Multiple AWEIS The AWEIS have a Yellow and a Blue wire protruding from them. These are the power wires. When daisy chaining multiple AWEIS the polarity between them must be the same.

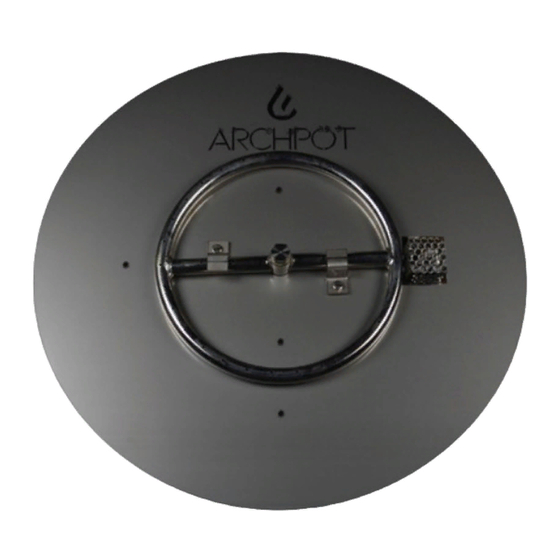

- Page 3 ALL WEATHER ELECTRONIC IGNITION SYSTEM UPGRADE INCLUDES: • AWEIS Control Box • Thermal Sensing Pilot Burner • 24V AC or 30V DC Transformer • LC Certification • 304 Stainless Steel Burner • 304 Stainless Steel Support Plate • Key Valve Assembly • Flex Line x2 • Mounting Bracket (for select models)
- Page 4 • An approved gas valve or keyed valve shall be installed in the decorative bowl or upstream of the unit and located in an accessible area that is within 5ft from the AWEIS System. Note: All AWEIS Systems includes pre-installed key valve, unless otherwise specified.
- Page 5 • An approved gas valve or keyed valve shall be installed in the decorative bowl or upstream of the unit and located in an accessible area that is within 5ft from the AWEIS System. Note: All AWEIS Systems includes pre-installed key valve, unless otherwise specified.
- Page 6 6. Take the Completed Burner Assembly and attach the Yellow and Blue wires from the AWEIS Control Module to the low voltage A/C power source previously installed. 7. Using thread sealer, attach the flex line to the bottom of the AWEIS Control Module.
- Page 7 TRANSFORMER (SHOWN MOUNTED IN SWITCH ELECTRICAL BOX) PILOT ASSEMBLY BURNER RING SUPPORT PLATE KEY VALVE ASSEMBLY AWEIS SUPPORT PLATE LEDGE FLEX LINES MOUNTING BRACKET OPTIONAL SETUP: TIMER SWITCH LOW VOLTAGE POWER EMERGENCY SHUTOFF, REMOTE NATURAL GAS SOURCE LINE CONTROL, POOL OPERATING...
- Page 8 Trouble Shooting (continued from previous page) Here is how our system works; after you turn it on the glow plug will come on first followed by the Pilot Gas Valve opening 4 seconds later. For the next 180 seconds (3 minutes) the glow plug will cycle on and off every 30 seconds while the Pilot Gas Valve will remain on the entire time.
- Page 9 Product Maintenance CAUTION! Use only approved decorative media to cover the burner assembly. Architectural Pottery Tumbled Lava Rock and Fire Glass are accepted media. Use caution when in the immediate area, as pieces may pop or explode when exposed to heat or moisture.
- Page 10 • If you experience problems with this unit, call Architectural Pottery or a licensed heating professional. • All work on this unit must be performed by a licensed heating professional. CAUTION! Before you turn on the AWEIS System, make sure that features are clear of people, animals, or any objects that are combustible. Operating Instructions •...
- Page 12 5. All sales are final. No refunds. Exchanges for equal value or higher with prior approval. A restocking charge will apply. 6. All sales are made pursuant to these conditions and orders are received with the understanding that they are placed under these conditions. (714) 895-3359 • archpot.com...
