- Page 1 General User/Safety Guide HARVEST 3 PUMP www.harvesthealthcare.co.uk E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
- Page 2 T +44 (0)1709 377172 F +44 (0)1709 377173...
-
Page 3: Table Of Contents
CONTENTS WARNINGS & CAUTIONS WARNINGS & CAUTIONS GENERAL INFORMATION GENERAL INFORMATION 6-10 DEFINITION OF THE GROUPS MENTIONED DEFINITION OF THE GROUPS MENTIONED NON-COMPLIANT USE NON-COMPLIANT USE SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS SAFETY INFORMATION FOR THE OPERATOR SAFETY INFORMATION FOR THE OPERATOR SAFETY INFORMATION FOR THE USER SAFETY INFORMATION FOR THE USER... -
Page 4: Warnings & Cautions
Do not place pump on or near a heat source or cover with bedding. • Harvest Healthcare advise against smoking whilst the system is in use to prevent the accidental ignition of associated items which may be flammable, such as bed linen. - Page 5 WARNINGS & CAUTIONS • Do not expose the pump to liquids. • Wireless equipment such as mobile phones should be kept at least 10ft/3m away from the system. • The mattress/cushion and pump should be cleaned between patient uses. • Do not use bleach, chlorine releasing agents in concentrations over 1000 ppm, solvents or alcohol-based cleansers, e.g.
-
Page 6: General Information
- 10, 15, 20 and 25 minutes. Harvest Healthcare supply a pump and mattress but it is the user’s responsibility to ensure each system meets the guidelines set out in the pump and mattress guide (shown below). -
Page 7: Definition Of The Groups Mentioned
Instruction Manual must be read conscientiously and in detail by the user/care personnel. Programming of the system should be carried out by competent trained personnel. Use only spares and accessories supplied or approved by Harvest Healthcare. Only suitably trained personnel are allowed to operate the system. E sales@harvesthealthcare.co.uk... -
Page 8: Safety Information For The Operator
GENERAL INFORMATION The mains cable must be free and not be allowed to be caught up in the bed’s moving mechanisms. The mains cable may be damaged or it may be pulled out of its socket and electric leads exposed as a result. If the mains cable or the mains plug are damaged, the relevant part must be replaced. -
Page 9: Symbols Used
GENERAL INFORMATION SYMBOLS USED This symbol indicates general hazards. There is a danger to life and health. Conformity mark in accordance with the Medical Device Directive (93/42 EEC). The symbol for Protection Class II device, double insulated. The symbol for type B device according to EN 60601-1. Handle with care. -
Page 10: Cleaning & Disinfection
Any defects, damage or signs of wear must be rectified without delay. Only original spare parts from Harvest Healthcare may be used, otherwise all guarantees or warranties will be invalidated. See pages 16-17 for ‘Routine Maintenance’ and ‘Routine Servicing’. -
Page 11: Technical Specification
TECHNICAL SPECIFICATION HARVEST 3 TECHNICAL SPECIFICATION Pump Model No. HPU3 Operating Cycle 10 / 15 / 20 / 25 minutes Dimensions 340 x 125 x 244mm Weight 3.5 kg Air Flow Output 12 lpm Pressure Setting Manual PUMP POWER REQUIREMENTS Power Rating Voltage AC 230V / 50Hz... -
Page 12: Overview

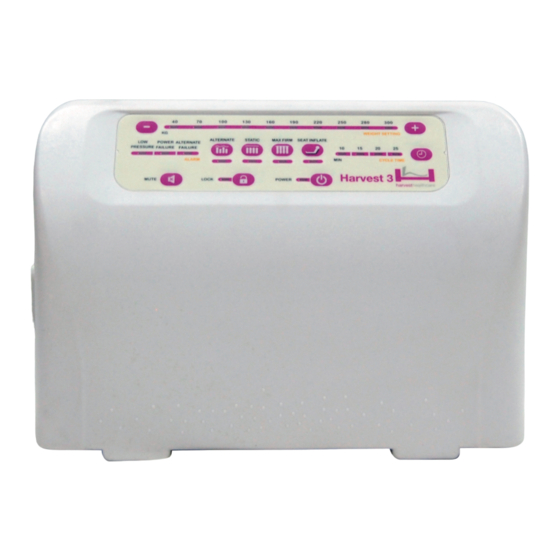

OVERVIEW PUMP OVERVIEW Feed Tube Connection Alternating Mode Power Switch Static Mode Cycle/Alternating Time Maxi-Firm Mode Pressure Range/Comfort Setting Seat Inflate Mode Alarm Mute Lock Button Maxi-Firm. This must be manually switched off after use. Feed Tube Connector Pipes from the mattress connect here. The pump must be able to be disconnected in an emergency for CPR to be administered. - Page 13 OVERVIEW Cycle/Alternating Time The cycle time can be selected by pressing the button on the control panel. The cycle time options are 10, 15, 20 or 25 minutes. Consult a medical professional for cycle times above ten minutes. Pressure Range / Comfort Setting The pump has a scale printed on the front panel in kilograms.
-
Page 14: Operation
OPERATION INFLATING THE MATTRESS/CUSHION Plug in at the mains supply, press the ON button on the side of the pump and then on the control panel. The control panel will light up to indicate that there is a power supply. The pump is in start up mode. -
Page 15: Cleaning & Care
CLEANING & CARE PUMPS For general cleaning wipe with a soft cloth dampened with a mild detergent and water solution. This may be followed by either wiping with a sodium hypochlorite solution to a dilution of 1000ppm (parts per million) or by using alcohol wipes. DO NOT USE HYPERCARBONATE, PHENOL-BASED CLEANING SOLUTIONS, ABRASIVE COMPOUNDS OR CLEANING PADS. -
Page 16: Routine Maintenance & Servicing
Check the pump casing for cracks or other damage that could be dangerous. Check the power cord (ensure there are no bare wires). If any faults are detected remove the equipment from use and contact the Harvest Healthcare Service Department or your distributor. - Page 17 ROUTINE SERVICING SERVICING YOUR SYSTEM The Harvest 3 pump should be serviced every 12 months by Harvest Healthcare approved personnel using genuine Harvest Healthcare spare parts. Failure to follow the service schedule may invalidate future warranty claims (‘Guarantees & Warranties’ can be found on page 23).
-
Page 18: Troubleshooting
T +44 (0)1709 377172 F +44 (0)1709 377173... - Page 19 E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
- Page 20 T +44 (0)1709 377172 F +44 (0)1709 377173...
- Page 21 E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
-
Page 22: Parts List
PARTS LIST APPLIED PARTS HPU3 Harvest 3 Pump (only) REPLACEMENT PARTS Compressor PU101 PU102 Bellows PU300 Connector PU301 PCB Board PU302 Front Panel Sticker PU303 Case PU304 Bed Hooks UN012 Filter PU305 Timer Motor T +44 (0)1709 377172 F +44 (0)1709 377173... -
Page 23: Guarantees & Warranties
12 months in line with the service schedule. GUARANTEE Harvest Healthcare Ltd guarantees to repair or replace all goods supplied to its customers which are found to be defective whilst still in their applicable warranty period. All warranties are subject to the following conditions: Warranty/guarantee is subject to all guidelines being adhered to. -
Page 24: Declaration Of Conformity
The following compliance evaluation process was applied: Annex VII EU legislation for this type of product covers all safety, health and environmental requirements. Modifying this product without consultation with Harvest Healthcare Ltd will invalidate this declaration of conformity. This declaration of conformity is issued under the sole responsibility of Harvest Healthcare. - Page 25 NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................ E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
- Page 26 NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................ T +44 (0)1709 377172 F +44 (0)1709 377173...
- Page 27 NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................ E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
- Page 28 Harvest Healthcare Limited. Company No: 07210261 Our Full Terms & Conditions are available by request or can be found on our website. Harvest Healthcare reserves the right to alter or amend this document without notice. T +44 (0)1709 377172 F +44 (0)1709 377173...
