D1 Swing Gate Control Board Manual
Control Panel – Model D1
The EasyGate D1 control panel is specially design to match 12Vdc Arm Gate
Motor(s).
The electronic panel requires no maintenance as long as the gate operates in proper
order and is kept dry and insect free. Mount the Control box as close to the motor(s)
(maximum 10m cable) as possible connected with minimum 1.5mm 2-core electrical
cable to reduce any voltage drop which will affect the performance of the system.
2.5mm to 4mm house cable is commonly used.
1. Make sure all wiring works are correct and in good condition before supplying
the mains power to the control panel.
2. Turn OFF the power when doing any maintenance.
3. Ensure the control panel box free from water leakage to avoid short circuiting.
4. Do not supply mains power directly to the motor.

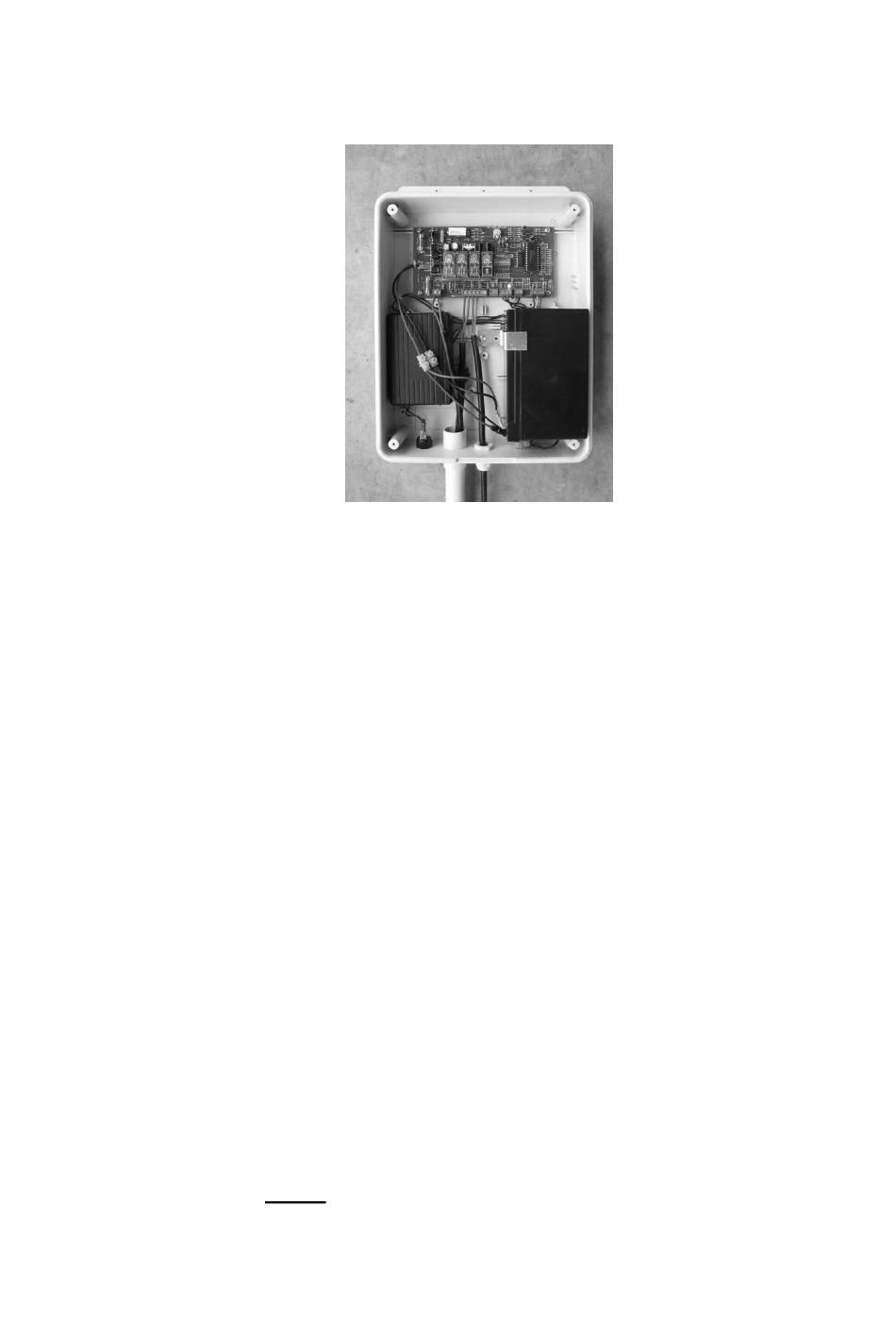

Battery: Your system is supplied with a 12V Lead Acid Maintenance Free Battery
and a Z-Shape steel mounting bracket with screw. With the battery terminals at the
bottom facing the center, position battery in the right bottom of your control board.
There are 2 plastic locating pegs molded into the control board box. You MUST
mount battery upside down so as the steel mounting bracket, when installed does
not contact between the battery power terminals.
230Vac-12/16Vac Transformer: Transformer can be relocated to around 150m
from control box using a transformer kit (in a protective electrical box with mains lead
and plug) or positioned inside the control box if mains power is available at the gate.
In either option you MUST install transformer via a RCD to avoid injury from shock
as per local government electrical requirements. Always switch OFF mains power
when any works is being carried out on or around gate installation. We recommend
E8 D1 Manual (Chip Software Version 1.3.0)
1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the D1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EasyGate D1

  • Page 1 D1 Swing Gate Control Board Manual Control Panel – Model D1 The EasyGate D1 control panel is specially design to match 12Vdc Arm Gate Motor(s). The electronic panel requires no maintenance as long as the gate operates in proper order and is kept dry and insect free. Mount the Control box as close to the motor(s) (maximum 10m cable) as possible connected with minimum 1.5mm 2-core electrical...
  • Page 2 Arm Condensation Drain Hole: Always mount arms with condensation drain holes facing down or water will enter motors and damage the electrics voiding the warranty. This is indicated on your arm with the red “THIS SIDE DOWN” marking. E8 D1 Manual (Chip Software Version 1.3.0) 2 of 9...
  • Page 3 4. Press your remote once and observe GREEN “MT A” and “MT B” Led indicating opening cycle on the D1 board. Gate is running on Slow Speed. Note: If it is RED “MT A or B then switch OFF power and reverse the motor wire polarity to change the direction of the motor.
  • Page 4 4. Press your remote once and observe GREEN “MT A” Led indicating opening cycle on the D1 board. Gate is running on Slow Speed. If it is RED “MT A” then switch OFF power and reverse the motor wire polarity to change the direction of the motor.
  • Page 5 If double setup and you want only 1 gate to open (pedestrian access) connect signal to terminal 3. For exit buttons it does not matter which way you connect the wires at block 7 terminal 1 and 2. E8 D1 Manual (Chip Software Version 1.3.0) 5 of 9...
  • Page 6 30 sec Auto Close only. Auto Close Switch (30sec and 15sec). Your D1 control board comes with a pre wired 30 sec Auto Close Switch installed at the bottom of the Control Box. 1. To use this Auto Close switch, keep DIP #7 and DIP #8 on the control panel in the OFF position.
  • Page 7 Function and / or Auto-Close function is used. External Light connection: D1 Arm gate Board has a 12Vdc output on the Lamp Relay Terminal. Left terminal is negative and right is positive. This output is to energize an EXTERNAL 12Vdc relay which in turn can be used to turn on /off a higher rating electrical item such as a Pillar Light.
  • Page 8 Warning remove the arm from gate and post and care is needed when operating this test. If the arm moves in and out freely then it could be a control board issue. E8 D1 Manual (Chip Software Version 1.3.0) 8 of 9...
  • Page 9 Apartment To Activate to Motor B Function 1 Gate AC 230VAC MAIN SUPPLY to Transformer 1 A FUSE Connect Keypad and Solar Regulator (observe Polarity) BLACK 12V 7Ah Rechargeable Battery E8 D1 Manual (Chip Software Version 1.3.0) 9 of 9...
