Summary of Contents for Goji G6P4WL20

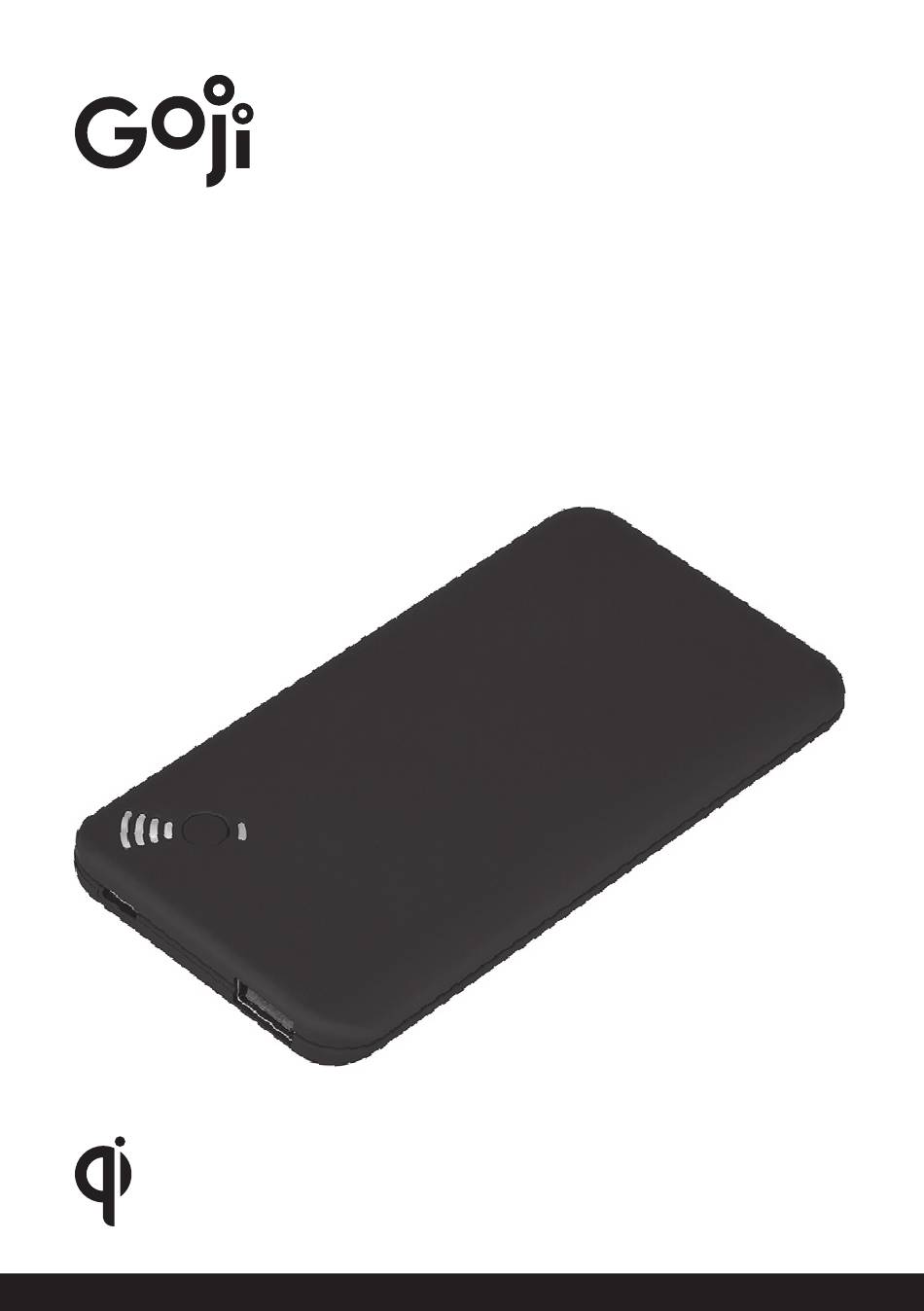

- Page 1 4,000mAh Qi Wireless Power Bank Pro Instruction Manual G6P4WL20...
-

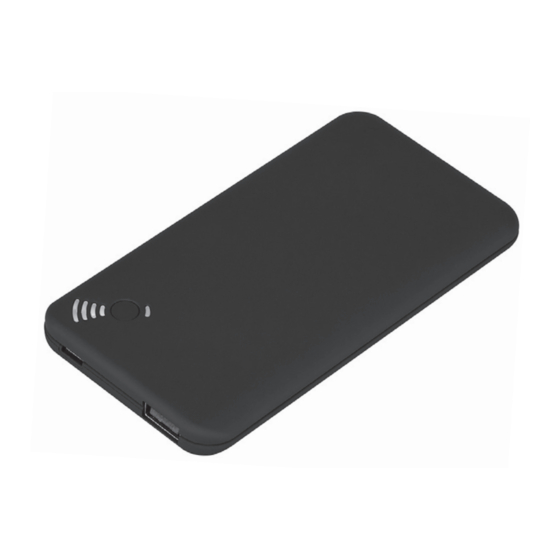

Page 2: Product Overview
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 3: Battery Status
Battery Status Check the power level 100% by pressing the ON/OFF button. Indicators will show the battery level. Charging the Powerbank While charging, the indicators will flash. When fully charged, the indicator will light up steadily. USB power adaptor (sold separately) The USB power adaptor output should matches the rated input of the powerbank. - Page 4 Charging Your Digital Devices Press the ON/OFF button to start charging if it does not start automatically. Wireless Charging Digital Devices 1. Press the ON/OFF button to enable wireless charging. The wireless indicator will light up red. The wireless charging feature will disable if it is not in use more than 60 seconds.
- Page 5 2. Place your mobile Qi sensor device on the top of the powerbank. Both Qi sensors must overlap. The wireless indicator will light up green when succeeded. • If the suction cups are not holding the mobile device firmly, wipe off the dust from their surface with a wet cloth and try again.
-
Page 6: Troubleshooting
Troubleshooting If any functional abnormality is encountered, replace your mobile device on the unit. • Mobile device is not placed in a correct position. • Placing any metal or other item with electric field may cause short circuit, such as credit card, key, memory card, etc. -
Page 7: Specifications
Specifications Battery Type Lithium ion Capacity 4000 mAh Input Output USB A: 5V 2.1A Wireless charging: 5V (max. 5W) You may charge up to 2 devices at the same time, sharing a maximum 10.5W output current (2 x 5V 1A). Frequency Band(s) 108 –... - Page 8 Declaration of Conformity (RED) Hereby, DSG Retail Ltd. declares that the radio equipment type [G6P4WL20] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.teamknowhow.com/ Click on SEARCH and enter the model number.
