Summary of Contents for Devanco MT

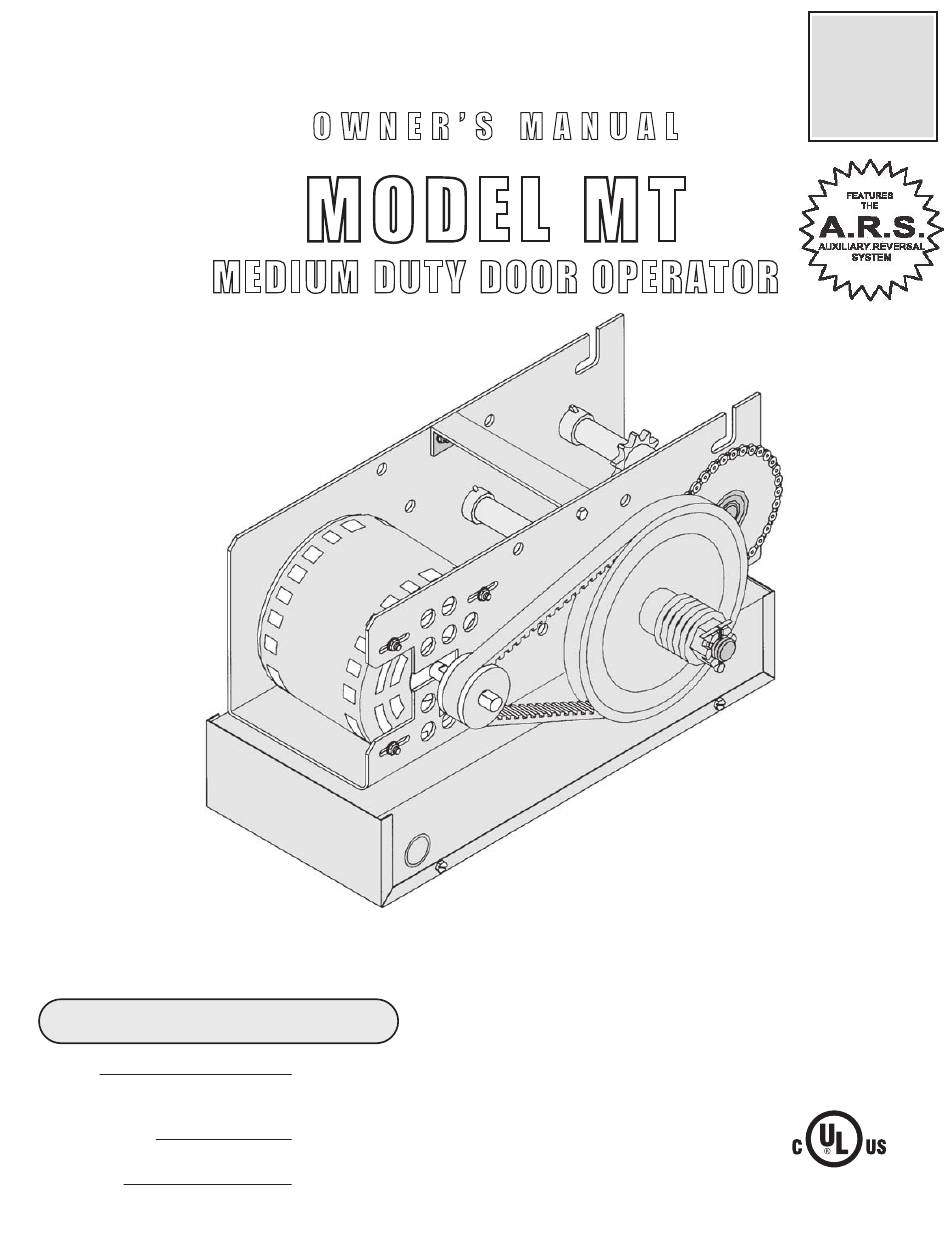

  • Page 1 M O D E L M T F A C T O R Y S E T C2 Wiring F A C T O R Y S E T See page 11 for MEDIUM DUTY DOOR OPERATOR C2 Wiring other wiring configurations O W N E R ’...

  • Page 2: Table Of Contents

    T A B L E O F C O N T E N T S SPECIFICATIONS CONTROL STATION WIRING Operator Dimensions ........3 Determine Wiring Type .

  • Page 3: Operator Dimensions

    O P E R A T O R S P E C I F I C A T I O N S MOTOR ELECTRICAL TYPE: ....... .Intermittent duty TRANSFORMER: .

  • Page 4: Preparation

    WARNING WARNING P R E P A R A T I O N TRACK ASSEMBLY CAUTION WARNING WARNING 1. Using the 3/8"-16 x 3/4" bolts and flange hex nuts provided, assemble the operator track by installing and tightening the To prevent possible SERIOUS INJURY or DEATH: track spacer brackets.

  • Page 5: Installation

    I N S T A L L A T I O N IMPORTANT NOTE: Before the operator is installed, be sure the door has been properly aligned and is working smoothly. Although each installation will vary due to particular building characteristics, refer to the following general procedures to install the operator. MOUNT HEADER BRACKET MOUNT OPERATOR The trolley operator is generally mounted over the center of the...

  • Page 6: Hang The Operator

    I N S T A L L A T I O N HANG THE OPERATOR WARNING WARNING 1. The illustration below shows a typical method of hanging the operator from the ceiling. Each installation may vary, but in all To avoid possible SERIOUS INJURY from a falling operator, cases side braces should be used for additional strength.

  • Page 7: Entrapment Protection Accessories

    I N S T A L L A T I O N ENTRAPMENT PROTECTION ACCESSORIES WARNING WARNING (OPTIONAL) To reduce the risk of SEVERE INJURY or DEATH, ALWAYS SENSING EDGES install reversing sensors when the 3-button control station is CAUTION All types of sensing edges with an isolated normally open (N.O.) out of sight of door or ANY other control (automatic or manual) output are compatible with your operator.

  • Page 8: Emergency Disconnect System

    A D J U S T M E N T EMERGENCY DISCONNECT SYSTEM WARNING WARNING TO DISCONNECT DOOR FROM OPERATOR To prevent possible SERIOUS INJURY or DEATH from a falling The door should be in the fully closed position if possible. Pull door or arm: CAUTION down on the emergency release handle (so that the trololey...

  • Page 9: Brake Adjustment

    A D J U S T M E N T BRAKE ADJUSTMENT A solenoid brake is an optional modification. If provided, the brake is adjusted at the factory and should not need additional Solenoid adjustment for the the life of the friction pad. Replace friction pads when necessary.

  • Page 10: Power Wiring

    WARNING P O W E R W I R I N G WARNING WARNING To reduce the risk of SEVERE INJURY or DEATH: • ALL electrical connections MUST be made by a qualified individual. • ANY maintenance to the operator or in the area near the operator MUST NOT be performed until disconnecting the •...

  • Page 11: Control Station Wiring

    C O N T R O L S T A T I O N W I R I N G DETERMINE WIRING TYPE WARNING WARNING Refer to the wiring diagram located on the inside cover the electrical box to determine the type of control wiring. To prevent possible SERIOUS INJURY or DEATH, install reversing sensors when the 3-button control station is out of CAUTION...

  • Page 12: Radio Controls

    C O N T R O L S T A T I O N W I R I N G RADIO CONTROLS WARNING WARNING On all models with type B2 control wiring, a terminal bracket marked R1 R2 R3 is located on the outside of the electrical To prevent possible SERIOUS INJURY or DEATH, install enclosure.

  • Page 13: Testing And Maintenance

    WARNING WARNING T E S T I N G A N D M A I N T E N A N C E Turn on power. Test all controls and safety devices to make sure CAUTION WARNING WARNING they are working properly. It will be necessary to refer back to page 7 for fine adjustment of the limit switches.

  • Page 14: Schematic Diagram For Mt5011

    S C H E M A T I C D I A G R A M F O R M T 5 0 1 1 • 1 7 5 3 (OPTIONAL) (OPTIONAL) BIMETAL LIGHT RELAY MAX. 100W WIRE NUT CLOSE-B N.O.

  • Page 15: Wiring Diagram For Mt5011

    W I R I N G D I A G R A M F O R M T 5 0 1 1 • 1 7 5 3 TO REVERSE MOTOR DIRECTION, INTERCHANGE RED & YELLOW WIRES. OPEN CLOSE N.C. N.C. N.C.

  • Page 16: Schematic Diagram For Bmt5011

    S C H E M A T I C D I A G R A M F O R B M T 5 0 1 1 • 1 7 5 4 (OPTIONAL) (OPTIONAL) BIMETAL LIGHT RELAY MAX. 100W CLOSE-B N.O. MOTOR * RES.

  • Page 17: Wiring Diagram For Bmt5011

    W I R I N G D I A G R A M F O R B M T 5 0 1 1 • 1 7 5 4 OPEN CLOSE N.C. N.C. AUX.OPEN AUX.CLOSE N.C. N.O. RADIO REC’R TO REVERSE MOTOR DIRECTION, INTERCHANGE RED &...

  • Page 18: Electrical Box

    E L E C T R I C A L B O X...
  • Page 19 21-10340 Transformer, 115V • • 42-110 10 Position Terminal Block 21-5230 Transformer, 230V • • 71-10345 RPM Sensor Board (MT Only) 1 29-10338 Capacitor, 70MFD • • 74-10352 RPM Sensor Board Harness 29-12110 Capacitor, 20MFD • • (See Var. Comp.) Transformer...
  • Page 20 I L L U S T R A T E D P A R T S Brake Componets Model BMT Only Brake Componets - Model BMT Only...

  • Page 21: Repair Parts Kits

    R E P A I R P A R T S K I T S Refer to the parts lists below for replacement kits available for your operator. If optional modifications and/or accessories are included with your operator, certain components may be added or remove from these lists. Individual components of each kit may not be available.

  • Page 22: Operator Notes

    O P E R A T O R N O T E S...
  • Page 23 O P E R A T O R N O T E S...

  • Page 24: Control Connection Diagram

    C O N T R O L C O N N E C T I O N D I A G R A M IMPORTANT NOTES: 1) The 3-Button Control Station provided must be connected for operation. 2) If a STOP button is not used, a jumper must be placed between terminals 3 and 4. 3) Auxiliary control equipment may be any normally open two wire device such as pullswitch, single button, loop detector, card key or such device.
  • Page 25 HOW TO ORDER REPAIR PARTS DEVANCO CANADA 19192 HAY ROAD, UNIT Q SUMMERSTOWN, ON K0C 2E0 TOLL FREE: 855-931-3334 www.devancocanada.com WHEN ORDERING REPAIR PARTS PLEASE SUPPLY THE FOLLOWING INFORMATION: 3 PART NUMBER 3 DESCRIPTION 3 MODEL NUMBER...
