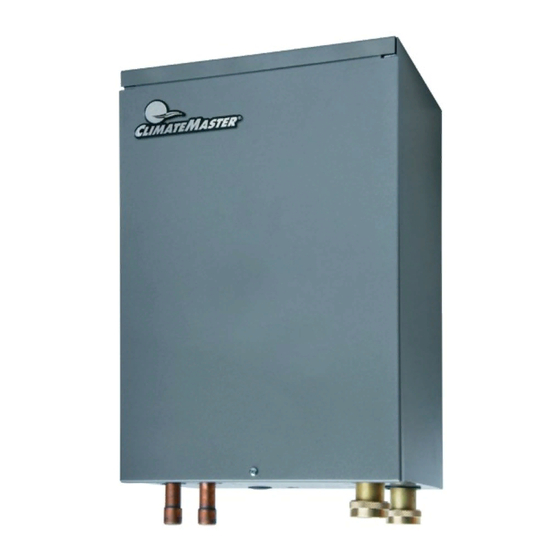

- Page 1 AHWG Remote Mount Hot Water Generator Module for TTP Series Outdoor Split Unit Installation, Operation & Maintenance Instructions 97B0080N01 Rev.: Feburary 10, 2016 Table of Contents Model Nomenclature Example Wiring and Electrical Data 9-10 Description and Installation Examples Warranty Installation and Operating Instructions Revision History...
- Page 2 This page was intentionally left blank.
- Page 3 R e m o t e H W G R e v. : F e b r u r a r y 1 0 , 2 0 1 6 Model Nomenclature: for Remote Hot Water Generator AHWG 1 Accessory Future AHWG = Accessory Remote SS = Standard Hot Water Generator...
- Page 4 R e m o t e H W G R e v. : F e b r u r a r y 1 0 , 2 0 1 6 Hot Water Generator Module For Outdoor Compressor Section General Information potential cost of frequent maintenance may offset or exceed any savings.
- Page 5 R e m o t e H W G R e v. : F e b r u r a r y 1 0 , 2 0 1 6 Hot Water Generator Module Refrigeration Installation For Outdoor Compressor Section Only NOTICE! Make sure the compressor discharge line is Location/Mounting connected to the “Hot Gas In”...
- Page 6 R e m o t e H W G R e v. : F e b r u r a r y 1 0 , 2 0 1 6 Hot Water Generator Module Installation Outdoor Compressor Section Only Figure 3a: Outdoor Compressor Section HWG Installation Figure 3c: HWG Service Valves Refr to HWG...
-
Page 7: Installation
Compressor Discharge sensor fault 2 flashes SYSTEMS THAT EMPLOY AN APPROVED ANTI- High Water Temperature (>160ºF) 3 flashes SCALD VALVE (CLIMATEMASTER PART NUMBER Control Logic Error 4 flashes AVAS4) AT THE HOT WATER STORAGE TANK WITH SUCH VALVE PROPERLY SET TO CONTROL Fault code flashes have a duration of 0.4 seconds with... - Page 8 R e m o t e H W G R e v. : F e b r u r a r y 1 0 , 2 0 1 6 Hot Water Generator Module - Domestic Water Installation adjust the temperature setting on the tank thermostat(s) �...
-
Page 9: Electrical Wiring
R e m o t e H W G R e v. : F e b r u r a r y 1 0 , 2 0 1 6 Electrical - Wiring Figure 5: HWG Module Wiring 230 Volt CONDENSER CONDENSER CONDENSER HWG Module... - Page 10 R e m o t e H W G R e v. : F e b r u r a r y 1 0 , 2 0 1 6 Electrical - Wiring Figure 8: Low Voltage Field Wiring � CAUTION! � �...
-
Page 11: Warranty
R e m o t e H W G R e v. : F e b r u r a r y 1 0 , 2 0 1 6 Warranty c l i m a t e m a s t e r. c o m... -
Page 12: Revision History
97B0080N01 ClimateMaster works continually to improve its products. As a result, the design and specifications of each product at the time for order may be changed without notice and may not be as described herein. Please contact ClimateMaster’s Customer Service Department at 1-405-745-6000 for specific information on the current design and specifications.
