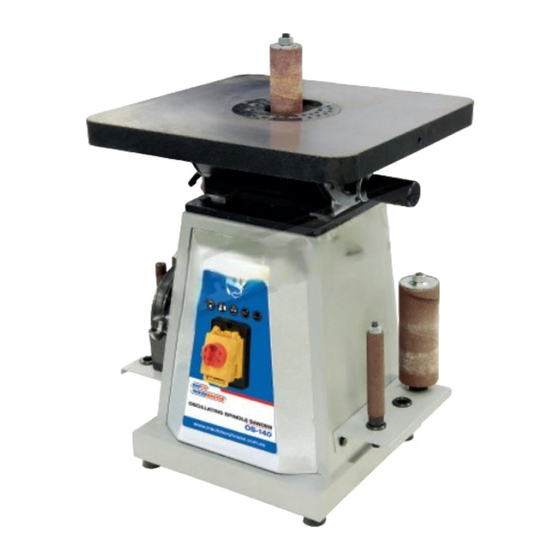

Summary of Contents for Hafco Woodmaster OS-140

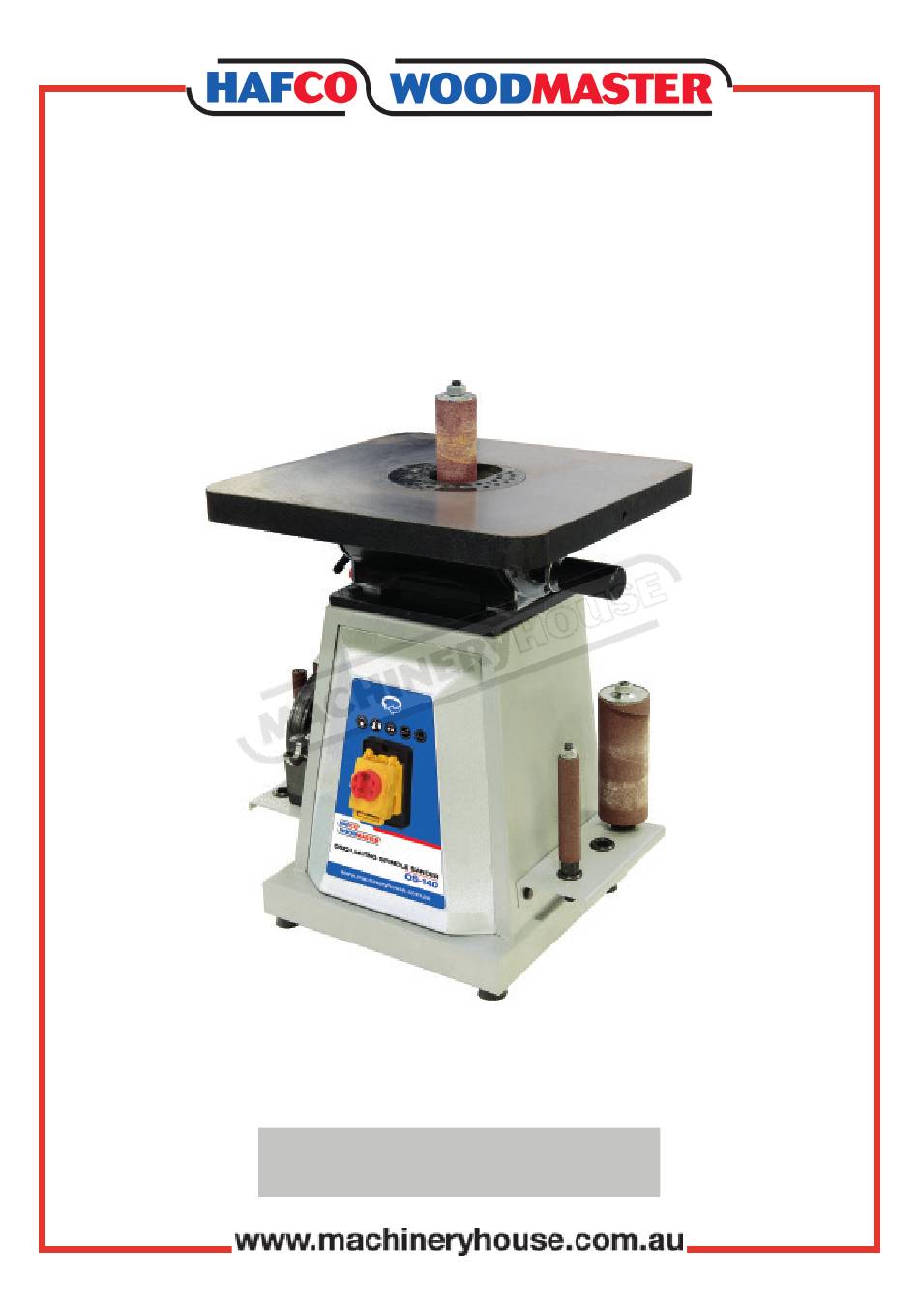

- Page 1 Page 1 Instruction Manual for OS-140 (W792) 20/02/2019 OSCILLATING SPINDLE SANDER OPERATION MANUAL Model OS-140 Edition No : OS-001 Date of Issue : 11/2018...
- Page 2 Page 2 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL MACHINE DETAILS MACHINE OSCILLATING SPINDLE SANDER MODEL NO. OS-140 SERIAL NO. DATE OF MANF. istributeD by www.machineryhouse.co.nz NOTE: This manual is only for your reference. Owing to the continuous improvement of the HAFCO machines, changes may be made at any time without obligation or notice.
-
Page 3: Table Of Contents
Page 3 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL C O N T E N T S: 1. geNerAL MACHiNe iNFOrMAtiON 1.1. s ..................4 peCiFiCAtiONs 1.2 C ..............ONteNts OF pACkAgiNg 1.3 i ..................DeNtiFiCAtiON 2. iMpOrtANt iNFOrMAtiON 2.1 g... -
Page 4: S Pecifications
Page 4 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 1.1 SPECIFICATION Code W792 MODEL OS-140 Motor (kW) 0.37 Voltage 240V Speed (RPM) 1425 Table Size(mm) 370 x 370 Table Tilt (Degrees) 0° - 45° Spindle Length (mm) Spindle Diameters (5 Included) 1/2”, 3/4”, 1”, 1-1/2”, 2”... -
Page 5: Dentification
Page 5 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 1.3 IDENTIFICATION Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual. Spindle with Sanding Sleeve ON / OFF Safety Switch... -
Page 6: Important Information
Page 6 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 2. IMPORTANT INFORMATION 2.1 GENERAL MACHINERY SAFETY DO NOT use this machine unless you have read this manual or have been instructed in the use of this machine in its safe use and operation... - Page 7 Page 7 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 2.1 GENERAL MACHINERY SAFETY Cont. WEARING PROPER APPAREL Do not wear FORCING MACHINERY. Do not force the ma- clothing, apparel or jewelry that can become chine. It will do the job safer and better at the entangled in moving parts.
-
Page 8: Additional Safety For O Scillating S Pindle S Anders
Page 8 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL DO NOT use this machine unless you have read the manual or have been trained and assessed to a competent level in its safe use and operation. Safety glasses must be worn when op-... -
Page 9: Setup
Page 9 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 3. SETUP 3.1 UNPACKING AND CLEAN-UP 1. Carefully remove all contents from the shipping carton. Compare the contents with those listed on Page 4. Make sure that all of the items are accounted for, before discarding any packing material. -
Page 10: Lectrical Requirements
Page 10 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 3.4 ELECTRICAL REQUIREMENTS. Place the machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure there is access to a means of disconnecting the power source. -
Page 11: Nstalling And Removing The Spindle
Page 11 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 3.6 INSTALLING SANDPAPER ONTO THE SPINDLES Cont. 1. To remove a sandpaper sleeve from a spindle, take off the top nut with a wrench, remove the washer, and slide the sanding sleeve off of the rubber spindle. -
Page 12: Nstalling The Table Insert
Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 3.8 INSTALLING THE TABLE INSERT The HAFCO WOODMASTER OS-140 Oscillating Spindle Sander comes with a variety of table Inserts, each with a different center hole diameter to be used with the matching spindle size. (Fig.3.5) NOTE: ALWAYS use a table insert when sanding. -
Page 13: Operation
Page 13 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 5. Using a 90° square placed on the table top, move the square to the spindle. It should measure 90°. (Fig.3.9). If the table is not square to the spindle, an adjustment can be made to the table setting. -
Page 14: On/Off Switch
.4.2 1. Connect the machine to the power 2. Start the machine and wait until the motor has build up to full speed. The OS-140 Oscillating Spindle Sander features a spindle that automatically oscillates (moves up and down) 24mm. This movement ensures that the spindle’s sandpaper gets maximum sanding use along the sleeve, and does not wear in just one area. -
Page 15: U Sing The Sander At Angles 0° - 45
Page 15 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 4.4 USING THE SANDER AT ANGLES 0° - 45° 1. DISCONNECT THE MACHINE FROM THE POWER 2. Take out the round insert and store carefully. Put in the oval insert. Slacken the table securing knobs either side of the machine. -
Page 16: Maintenance
Page 16 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 5 MAINTENANCE Turn the power switch “OFF” and disconnect the plug from the outlet prior to adjusting or maintaining the sander. DO NOT attempt to repair or maintain the electrical com- ponents of the motor. -
Page 17: Optional Accessories
Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL 5.3 OPTIONAL ACCESSORIES HAFCO WOODMASTER has a range of sanding sleeves available for this machine. To arrange your order contact your local dealer with your order or purchase online at www.machineryhouse.com.au www.machineryhouse.co.nz... - Page 18 Page 18 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL SPARE PARTS DIAGRAM A...
- Page 19 Page 19 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL SPARE PARTS LIST DIAGRAM A Description Part No. Description Part No. Machine body P50-300-1A Table insert P50-300-31A Worktable bracket P50-300-2A Tool holder for table inserts P50-300-33A Worktable bracket P50-300-3A Dial indicator...
- Page 20 Page 20 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL SPARE PARTS DIAGRAM B...
- Page 21 Page 21 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL SPARE PARTS LIST DIAGRAM B Description Part No. Description Part No. Motor base P50-300-1B Hex thin nut P50-300-20B Spindle bushing & plastic insert P50-300-2B 5x5x50 P50-300-21B Guide column P50-300-3B E-clip 6mm...
- Page 22 Page 22 Instruction Manual for OS-140 (W792) 20/02/2019 OPERATION MANUAL ELECTRICAL This machine must be grounded. Replacement of the power supply cable should only be done by a qualified electrician. See page 10 for additional electrical information. This HAFCO machine is intended for use on a circuit that has a 240 volt electrical supply.
-
Page 23: Risk Assessment
Page 23 Instruction Manual for OS-140 (W792) 20/02/2019 General Machinery Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Read the entire Manual before starting 14. Use correct amperage extension cords. machinery. Machinery may cause serious injury if Undersized extension cords overheat and lose not correctly used. - Page 24 Page 24 Instruction Manual for OS-140 (W792) 20/02/2019 Bobbin Sander Safety Instructions Hare and Forbes Machinery House requires you to read this entire Manual before using this machine. 1. Maintenance. 11. Workpiece Handling. Make sure the Bobbin Sander is Never hold small workpieces turned off and disconnect from the main power with your fingers during sanding.
- Page 25 Page 25 Instruction Manual for OS-140 (W792) 20/02/2019...
