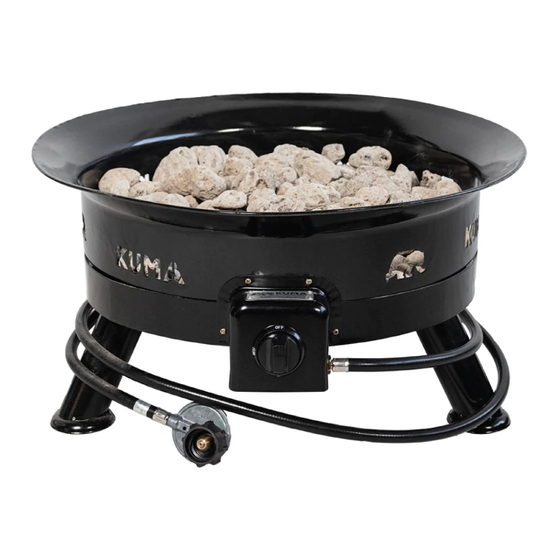

Bear Blaze Fire Bowl - 19"
58,000 BTU Portable Flame Propane Outdoor Fire Pit
Model Number: 449-KM-BBFB-BB
If you smell gas:
1. Shut off gas
2. Extinguish any open flame
3. If odor continues, keep away from the appliance and immediately
call your gas supplier and fire department.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use should never be stored in the vicinity
of this or any other appliance.
Do not smoke around the appliance when connecting or operating.
Do not use in camper, tent, car or home.
This appliance can produce carbon monoxide, which has no odor. Using
indoors will cause death and injuries.
FOR OUTDOOR USE ONLY
DANGER
DANGER
WARNING
CARBON MONOXIDE HARZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
1
Advertisement
Table of Contents
Summary of Contents for KUMA Bear Blaze Fire Bowl 19"
- Page 1 Bear Blaze Fire Bowl - 19” 58,000 BTU Portable Flame Propane Outdoor Fire Pit Model Number: 449-KM-BBFB-BB DANGER If you smell gas: 1. Shut off gas 2. Extinguish any open flame 3. If odor continues, keep away from the appliance and immediately call your gas supplier and fire department.
-
Page 2: Minimum Clearances
WARNING Improper installation, adjustment, alteration, service, and/or maintenance can cause injury or damage to the appliance. Read the instruction thoroughly before installing or servicing this appliance. WARNING If the information in this manual is not followed exactly, a fire and/or explosion may result personal injury, property damage, and/or loss of life. - Page 3 The gas pressure regulator provided with this appliance must be used and must be the same model as supplied with the appliance. The gas cylinder supply system must be arranged for vapor withdrawal. Gas cylinders used with this appliance must have a collar to protect the cylinder valve. An approved LP-cylinder stabilizer, such as the stabilizer ring included, must be utilized when the appliance is in use.
- Page 4 ENCLOSURES FOR SELF-CONTAINED LP GAS SYSTEMS: An enclosure for an LP-gas cylinder shall be ventilated by openings at both the upper and lower levels of the enclosure. This shall be accompanied buy the one of the following: a. One side of the enclosure shall be completely open; or b.
- Page 5 CONNECTION: 1) Be sure the cylinder valve and appliance valves are “off.” 2) Place the LP gas cylinder on the tank stabilizer ring. 3) Center the nipple in the cylinder valve and hold in place. 4) Using the other hand, turn the handle wheel clockwise until there is a positive firm stop. Do not use tools.
-
Page 6: Note To Installer
THE APPLIANCE IS NOT BE USED UNTIL ANY OR ALL LEAK(S) ARE CORRECTED. A gas appliance repairman or LP gas dealer should be called if attempts to stop the leak(s) are unsuccessful and, in such case, the LP gas supply must be removed from the appliance until the leak(s) is corrected. Inspect hose prior to each use of the unit. - Page 7 Owner’s Manual STEP 1 Enclosed are four bags of rocks and one factory installed 10' propane-rated hose with attached regulator. STEP 2 Remove plastic bags containing the rocks. STEP 3 Open the bag containing the smaller rocks labeled conveniently for you “Put Me In First" and arrange in burner area.
- Page 8 STEP 7 Ensure that unit valve dial is in the “OFF” position by pushing and turning clockwise until the dial stops. STEP 8 Securely attach regulator (large end of hose) to your propane cylinder. STEP 9 Extend hose to full length and ensure that the propane tank is as far as safely possible from the fire pit. STEP 10 Slowly turn cylinder valve to the open position.
- Page 9 STEP 11 Using a lighter or match, ignite lighter and hold flame slightly above the burner, then open the valve on the appliance slowly by turning (counter-clockwise) until the unit ignites. Step 12 Set dial to desired flame height. Warning: Ensure that no parts of your body, clothing, or any other combustible material are above the burner before, during and after ignition.
-
Page 10: Maintenance
MAINTENANCE Your fire pit requires periodic maintenance to keep it in good running order. Follow the steps below to ensure your appliance will provide you with the best possible performance: 1. Keep your fire pit out of the rain and store it in a dry place. 2.
