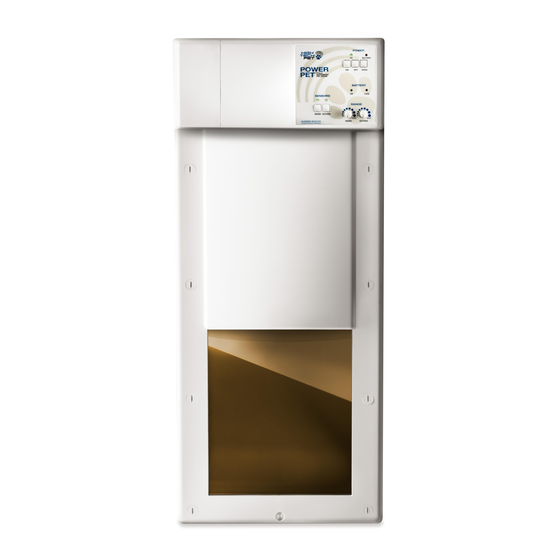

High Tech Pet Products Power Pet Door Installation & Operating Instructions Manual

Advertisement

Quick Links

Power Pet Door
INSTALLATION & OPERATING
INSTRUCTIONS
1. INTRODUCTION:
door. Your new POWER PET door features an attractive, high-strength
door panel that quickly and quietly powers upward disappearing into the
stylish housing. Your pets are empowered to come and go as they please
while their animal friends are politely asked to stay out.
POWER PET doors increase home security with a special automatic,
dead bolt locking feature that guards against would-be intruders. Only the
coded Signal from your pet's collar will open the Power Pet door.
Only Power Pet doors feature an ingenious directional sensing system
that operates a fully automatic, motor driven panel. The signal emitted
from your pet's collar tells the Power Pet door how far away your pet is
and the direction in which your pet is traveling. This allows the Power Pet
to work like magic, opening only when your pet is on a direct approach,
not when it is just wandering by and not when it is sitting or sleeping next
to the door.

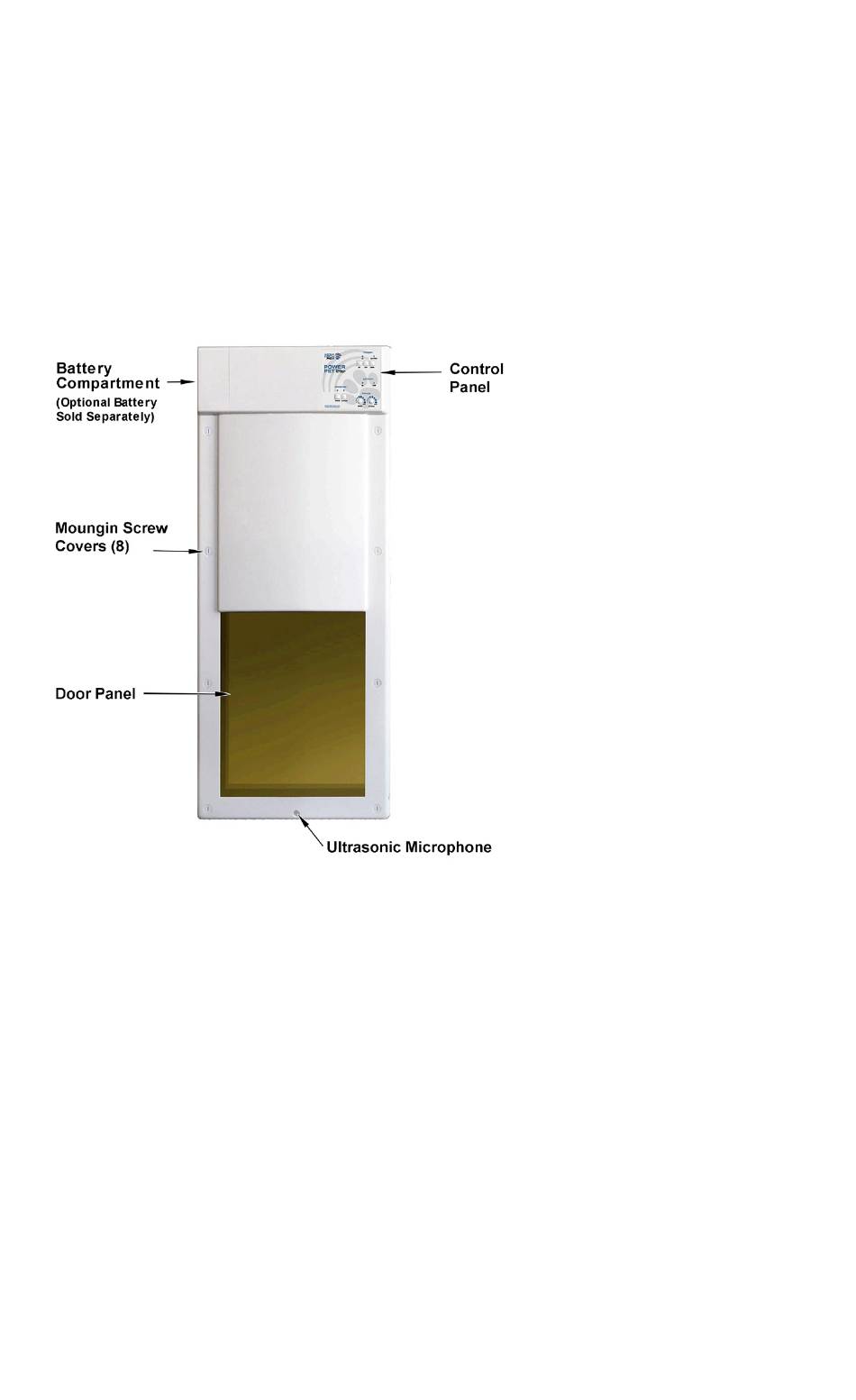

Product Description:
Your new POWER PET
Electronic Pet Door is
like no other pet door
made. Genuine POWER
PET
electronic pet
®
doors are fully automatic,
motor driven and open
completely under their
own power. Activated by
an ultrasonic pet collar,
your new POWER PET
door will keep out stray
animals. It is secure
against wind, rain, cold
and snow and provides
much better insulation
than a conventional flap
®

Advertisement

loading

Summary of Contents for High Tech Pet Products Power Pet Door

  • Page 1 The signal emitted from your pet’s collar tells the Power Pet door how far away your pet is and the direction in which your pet is traveling. This allows the Power Pet...
  • Page 2 • All Required Hardware (Wall Adapter Tunnel, is sold separately.) Your POWER PET door mounts lush to any door or wall. The hardest part of installing the POWER PET door is cutting the hole. If the unit is to be mounted in a door up to 1 ¾“...
  • Page 3: Cutout Dimensions

    advisable to build a frame around the opening or order our convenient WALL ADAPTER TUNNEL. The hole dimensions given below are for the finished opening not including the frame. Dimensions of the frame you build should be added to the opening size to determine the final size of the hole you cut in your wall.
  • Page 4 2. Install Power Pet door will require framing) Door Wall See installation notes OUTSIDE INSIDE 3. Install Outer Frame Wall Installation Tunnel Inner Frame of Power Pet door casing You may purchase our optional WALL ADAPTER TUNNEL Or build your...
  • Page 5: Important Installation Notes

    AUTO DEAD BOLT LOCKING FEATURE As shown in Figure 7, the POWER PET door uses a spring loaded locking pin which automatically snaps into its retaining hole when the movable panel comes to rest in the closed position. The pin can only be released when the motor applies tension to the cable.
  • Page 6: Control Panel

    With the charger kit you get a battery charger and an extra battery. Use one battery in your Power Pet door and keep the other in the charger. When your door battery runs low, just swap.
  • Page 7 (Usually, it’s a good idea to use a short inside distance of a foot or two and a longer 4 to 5 foot distance outside.) Your new Power Pet door gives you full control.
  • Page 8 AC Power Adaptor plugged into the door, use this feature sparingly to keep from discharging the battery in just a few hours AUTOMATIC SAFETY RETRACT: Your Power Pet door is intrinsically safe for all pets and people, including small children. The door panel weighs less than 2 lbs.
  • Page 9 Disabling the Auto Retract Feature: Under unusual conditions, such as a warped wall mounting, the door sometimes may close so slowly that the auto-retract feature triggers the door to re-open unnecessarily. In these cases it may be desirable to defeat the Automatic Safety Retract feature. Do this by first pressing the OFF button to turn off the door controls and all the lights.
  • Page 10 Installing/Replacing the MS-5 Battery NOTE: The B3V1A Battery (pictured right) is the ONLY battery that is compatible with the MS-5 collar. Do not attempt to use any other battery in the MS-5 collar. NOTE: Some collars are shipped with a battery pre- installed.
  • Page 11: Troubleshooting Guide

    5. TROUBLESHOOTING GUIDE: Your Power Pet door comes with a full one-year repair/ replacement warranty. It’s designed and built to last a lifetime. However, should you encounter a failure after your warranty has expired, here are some useful troubleshooting tips.
  • Page 12 Made of heavy gauge aluminum with a super tough industrial powder coat finish. High Tech Pet Products, Inc. 2111 Portola Road, Suite A, Ventura, CA 93003 800.255.1279 • www.HighTechPet.com...
