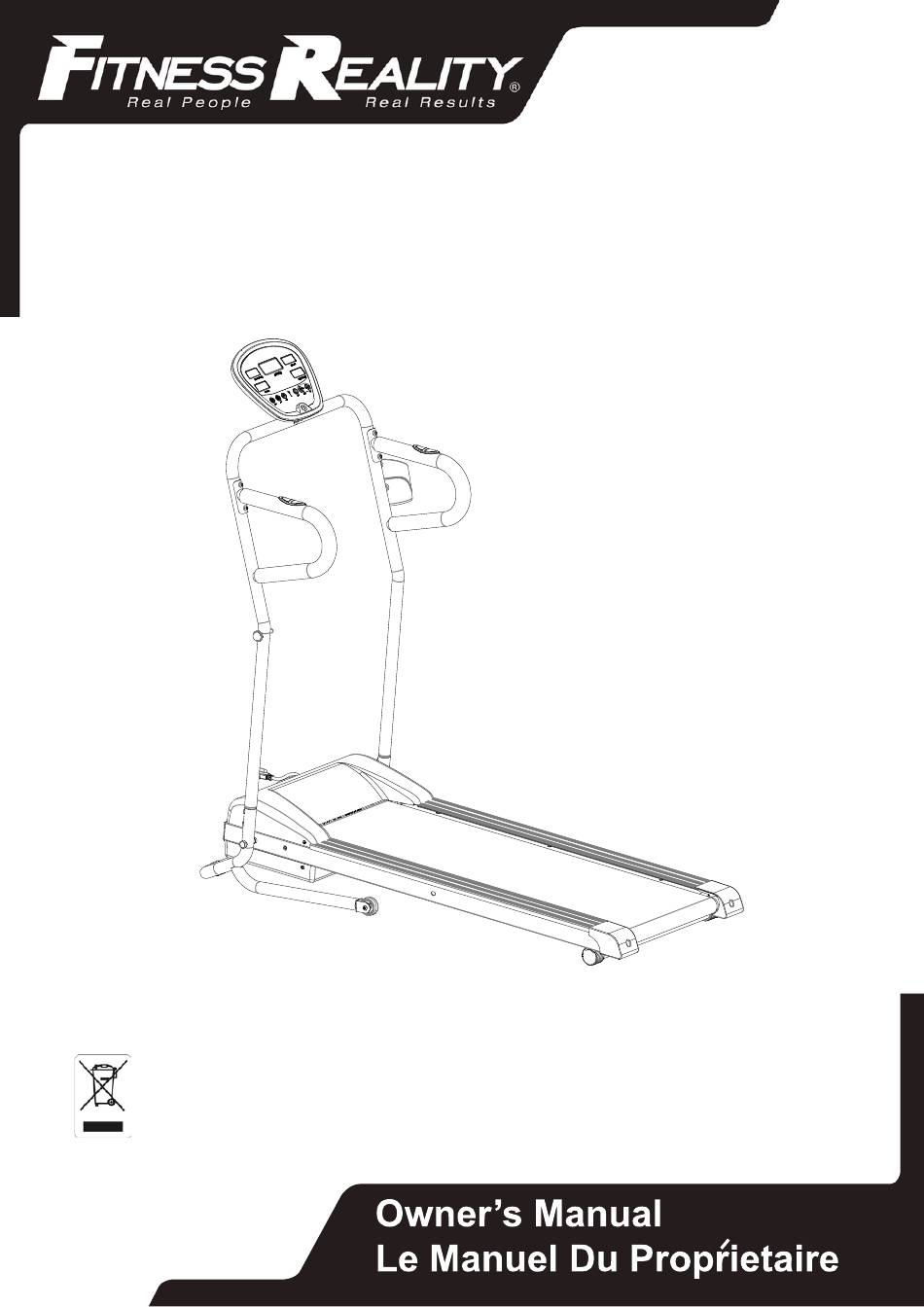

- Page 1 Electric Treadmill with Pulse IMPORTANT: Read all instructions carefully before assembling and/or using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and is subject to change without notice. 2050H.3-020317...
- Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Hours: 8:00 AM to 5:00 PM (PST) Daily Or call us at: 1-844-641-7920...
-
Page 3: Table Of Contents
TABLE OF CONTENT SERVICE ------------------------------------------------------------------------ LABEL PLACEMENT --------------------------------------------------------- IMPORTANT SAFETY GUIDELINES ------------------------------------ OVERVIEW DRAWING ------------------------------------------------------ HARDWARE & TOOLS PACK ----------------------------------------------- PARTS LIST -------------------------------------------------------------------- ASSEMBLY --------------------------------------------------------------------- COMPUTER -------------------------------------------------------------------- STORAGE ----------------------------------------------------------------------- MAINTENANCE & TROUBLE SHOOTING ----------------------------- ADJUSTMENT & LUBRICATION ------------------------------------------ WARRANTY -------------------------------------------------------------------- PARTS REQUEST FORM --------------------------------------------------... -
Page 4: Service
SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:... -
Page 5: Label Placement
LABEL PLACEMENT... -
Page 6: Important Safety Guidelines
IMPORTANT SAFETY GUIDELINES Basic precautions should always be followed, including the following safety instructions when using this treadmill: Read ALL GUIDELINES BEFORE USING THIS TREADMILL. DANGER: To reduce the risk of electric shock, read the following: Always unplug the treadmill from the electrical outlet immediately after usage. Also unplug the treadmill before cleaning, assembling, or servicing. - Page 7 IMPORTANT SAFETY GUIDELINES Keep the electrical cord away from heated surfaces. Never insert any object into any opening. Keep the treadmill on a solid, level surface with a minimum safety area clearance of 6 square feet around the treadmill. Be sure the area around the treadmill remains clear during use and has adequate clearance.
- Page 8 IMPORTANT SAFETY GUIDELINES GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current reducing the risk of electric shock. * This treadmill is equipped with a cord having equipment grounding conductor and a grounding plug.
- Page 9 IMPORTANT SAFETY GUIDELINES WARNING: Before beginning any exercise program consult your physician. This is especially important for the people who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment. We assume no responsibility for personal injury or property damage sustained by or through the use of this product.
-
Page 10: Overview Drawing
OVERVIEW DRAWING... -
Page 11: Hardware & Tools Pack
HARDWARE & TOOLS PACK (7) Hex Bolt (23) Spring Washer (63) Curve Washer 8 PCS 4 PCS 10 PCS (64)Hex Socket Bolt (48) Cross Head (14) Phillips Screw 2 PCS Screw 2 PCS 2 PCS Multi Hex Tool with Phillips Allen Wrench 6mm 1PC Screwdriver 1PC Allen Wrench 5mm 1PC... -
Page 12: Parts List
PARTS LIST Description Qty No. Description Stabilizer 34 Running Deck Cross recessed Pan Head Screw Front Pad 41x32x30 M6x35 Transport Wheel Ø50xT25 36 Flange Nut M6 Hex Socket Head Bolt M8x40 37 Deck Bumper Lock Nut M8 38 Side Rail Hex Socket Head Bolt M12x75 39 EVA cushion Hex Bolt M8x15... -
Page 13: Assembly
ASSEMBLY Tool: Allen Wrench 6mm Step 1 1A. Installing the Upright Frame Connect the Signal Wire II (62) from the Stabilizer (1) to the Signal Wire I (51) from the Upright Frame (46) as you begin inserting the frame into the stabilizer. Secure the Upright Frame (46) into the Stabilizer (1) with the Curve Washers (63), Spring Washers (23) and four Hex Bolts (7). - Page 14 ASSEMBLY Tool: 5mm Allen Wrench 1 PC 6mm Allen Wrench 1 PC Multi Hex Tool with Phillips Step 2 Screwdriver 1PC 2A. Installing the Handlebars Connect the Hand Pulse Sensor Wires II (61) from one of Handlebar (52) to the Hand Pulse Sensor Wires I (60) on the left side of the Upright Frame (46).
- Page 15 ASSEMBLY Step 3 3A. Installing the Computer Connect the Sensor Wire I (51) and the set of Hand Pulse Sensor Wires (60) from the Upright Frame (46) to the wires coming from the back of the Computer (57). Tuck the connected wires into the Upright Frame (46) as seen in figure AA-2.
- Page 16 ASSEMBLY Tool: Multi Hex Tool with Phillips Step 4 Screwdriver 1PC 4A. Installing the Rear End Caps. Attach the Right Rear End Cap (42) on to the Main Frame (8), secure it using one Phillips Screw (14). Tighten the screw using the Multi Hex Tool with Phillips Screwdriver provided. Repeat this step to install the Left Rear End Cap (41).
-
Page 17: Computer
COMPUTER Quick Start: Plug the Power Cord (11) into a wall outlet and flip the Power Switch (17) that is located at the front of the treadmill to the ON position. Make sure the Safety Tether key is positioned on the Computer (57) then attach the Safety Clip securely to your clothing. - Page 18 COMPUTER Button Functions: START: To start the treadmill. STOP: To stop the treadmill. MODE: To navigate through the Pre Set goals. FAST: To increase adjustments for pre-set target training time, distance, or calories. Or to Increase speed during training by 0.1 MPH. SLOW: To decrease adjustments for pre-set target training time, distance, or calories.
- Page 19 COMPUTER PRE-SET TARGET GOALS: The computer allows for 3 different Pre-set target features, Time/Distance/Calories. To set a Target, have the computer in stop mode and press the MODE button to select one of the 3 targets. The display will flash, Then press the FAST or SLOW buttons to increase or decrease the Time/Distance/Calorie target.
-
Page 20: Storage
STORAGE LIFTING UP THE TREADMILL For convenience, the treadmill can be folded up and placed in a storage area. To fold the treadmill place one hand on the rear end of the main frame and use your other hand to pull out & hold the Spring Knob (50), then lift the main frame up until the Spring Knob (50) "pops"... -
Page 21: Maintenance & Troubleshooting
MAINTENANCE & TROUBLESHOOTING WARNING: To prevent electrical shock, turn off and unplug the treadmill before cleaning or performing routine maintenance. CLEANING The treadmill can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents. Be careful not get excessive moisture on the display panel as this might cause an electrical hazard or electronics to fail. - Page 22 MAINTENANCE & TROUBLESHOOTING Error Codes Cause and Solutions Fault Code Cause Solution 1. Ensure that the Safety Tether Key is installed on the Computer (57). 2.Restart the power after 1 minute and install the Safety SAFE Safety tether key protection Tether Key 3.
-
Page 23: Adjustment & Lubrication
ADJUSTMENTS & LUBRICATION Belt Adjustment: The belt tension is properly set before shipping. The belt may come loose during transportation and/or from use. After prolonged use of the treadmill, the belt will stretch out. If the belt begins shifting away from the center, turn on the main power switch of the treadmill and let the belt run at a speed of 1-1.5 MPH. -
Page 24: Warranty
WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual. -
Page 25: Parts Request Form
PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)__________________________________________________________________________ (Night)_________________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” * This form can also be faxed in Fax #: 626-810-2166...
