- Page 1 CAN-AM Linux Access Control with AI Thermal detector User Manual Model: Hero-BK-PM...
-
Page 2: Table Of Contents
CONTENTS 1. PRODUCT OVERVIEW ..........................3 1.1 P ..........................3 RODUCT NTRODUCTION 1.2 P ..........................3 RODUCT UNCTIONS 2. WIRING INSTRUCTIONS.......................... 3 2.1 W ..........................4 IRING INSTRUCTIONS 2.2 C PC........................5 ONNECT THE DEVICE TO 2.3 C ) ....................6 ONNECT THE OCK OF DOOR 2.4 W... -
Page 3: Product Overview

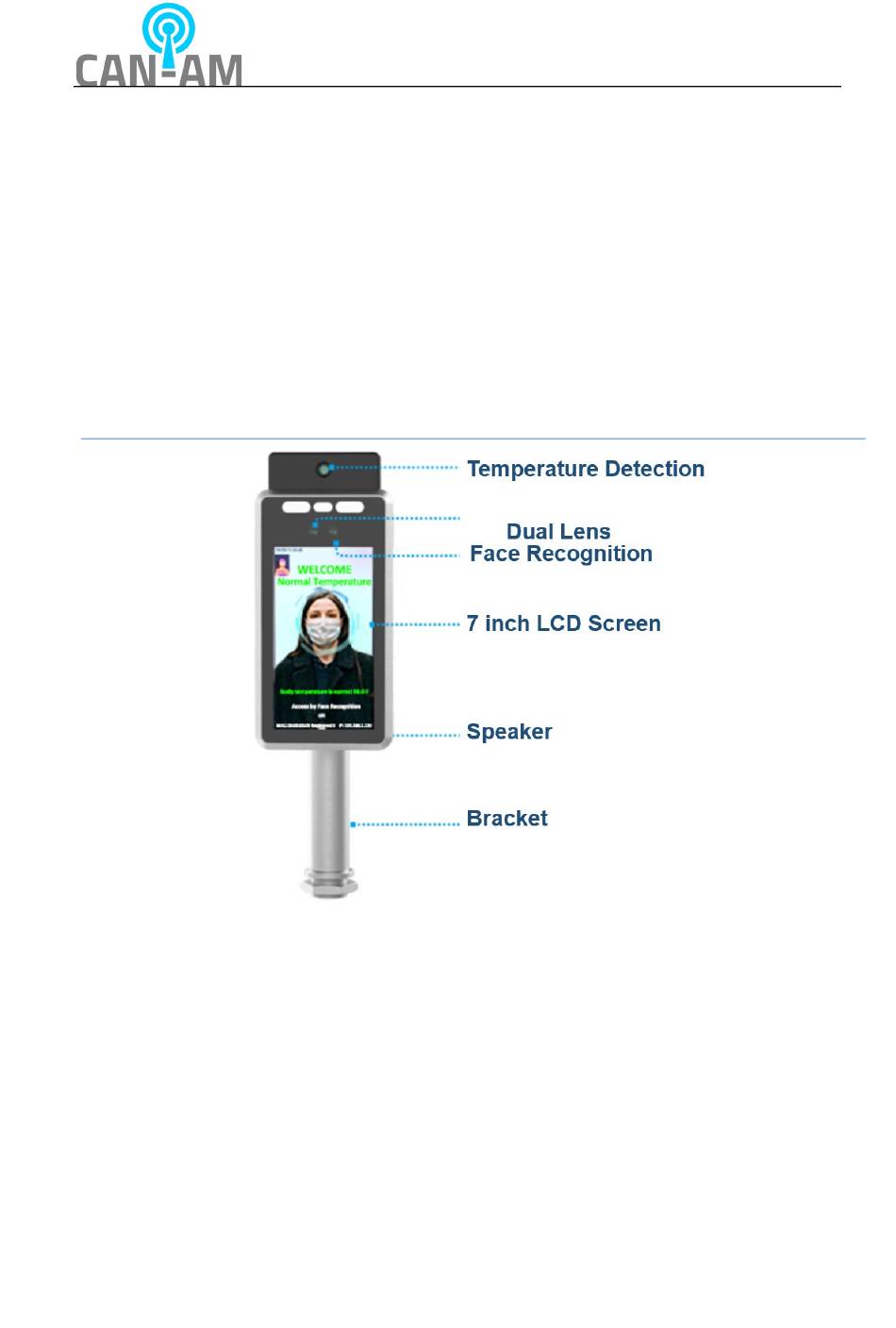

Product Overview 1.1 Product Introduction CAN-AM Access Control with AI thermal detector Hero-BK-PM adopts the new AI chip-set, large thermal sensor array, and latest algorithm, providing the cutting-edge face recognition and body temperature detection, with ability to detect wearing the mask. Hero-BK-PM can identify human forehead automatically from 0.3meter ~1.2meter to get ±0.3℃... -
Page 4: Iring Instructions
distance from the site construction (switching power to equipment distance) does not exceed 20m. If 1.5mm national standard cable is used, 12V switching power supply is used, and the wiring distance from the site construction (switching power to equipment distance) does not exceed 30m. -
Page 5: Connect The Device To Pc
12V out 12V power output E 2 pin Reserved N/A, don’t connect anything! Precautions： 1). Pin 4 (12V out), current limit output 1A, load beyond power, will cause panel machine hardware damage. 2). Pin 2 (LOCK_NONC_12V), current limit output 800mA, beyond the power of the latch access, will cause panel machine hardware damage. -
Page 6: Connect The Lock Of Door (Push
Turn off firewall of your PC fWindows 10 OS . After you configure it, you can turn the （ ） firewall on again.This is only affect the search IP address of device. If not turn it off, you can add the device by manually. -
Page 7: Client Operations
Anode Lock Software Configuration: In the ARFaceManager tool, go to 3.2.8 Device Access Control Parameters and set the door magnet type to "Normally Closed". Cathode Lock Software Configuration: In the ARFaceManager tool, go to 3.2.8 Device Access Control Parameters and set the door magnet type to "Normally Open". 3. -
Page 8: Device Management
Video Preview: You can get the live streaming info; Device Manage: Search, edit and set the device. Staff Manage: Add/edit/delete the staff personal info, and authorize the door-Lock function. Data Query: Export the attendance of registered staff. 3.1 Device Management... -
Page 9: Login
3.1.1 Login For the first time login, you need set a password (Six characters at least) for admin account. After login on, you can create sub-account, and set the role for the sub-account. Add sub-account, input the user and password. Select the Authority(role) for this account. - Page 10 Delete account. Select it first, then Click “Delete Account”.
-
Page 11: Adding Device
3.1.2 Adding Device 1) On the left side of the control panel, click Device Management -> Search Device 2) Click Device Management -> Add Device Select the camera you want to add, fill in the device name (required) and position (required), and click “Add select”. -
Page 12: Device Settings
3.1.3 Device Settings Device settings includes device parameters, upload settings, algorithm configurations, display configurations, and video settings. 3.1.3.1 Device parameters IP setting DHCP mode No need to set, you can get the IP address directly when you connect the RJ45 cable to router. The IP address will display at the bottom of Screen of device. - Page 13 Configure the NTP server IP address, port number, update cycle and time zone. Check “Enable”. Click “Set Up”. The parameters will be synchronized to the device. Time zone Manual time setting Synchronize with your PC’s time. 3.1.3.2 Upload settings (Need develop or integrate the protocol) Upload settings ...
- Page 14 Supports simultaneous Http and mqtt uploading. 3.1.3.3 Algorithm settings Target image settings: Set the staff faces(picture)’s attribute. Keep the default setting. Background image settings: No need to set. Common settings Temperature Measuring setting: Enable them. Show Infrared Image: The infrared window will appear on the right top of Screen. Turn it on/off. Enable FaceAE: Turn on/off the face recognition under back-lighting environment.
- Page 15 After you set them, click “ Set” to save the settings. Threshold settings --- Algorithm’s threshold setting. Keep the default setting. 3.1.3.4 Display settings Image settings Video settings: You can mirror the preview image. OSD settings Edit it, and check these OSD info (Name, Time &...
- Page 16 Single Warning: Turn off multiple notification for one person per time, it will only announce one time if he stands in front of the camera for a long time. Unlock Condition There are 8 kinds of conditions 1. Temperature: The registered staff who temperature is normal could open the door 2.
-
Page 17: Staff Management
Change the language type, voice type and save it. Volume: Notification volume. 3.1.3.5 Video setting Video settings supports changing Resolution, Bit-rate of video. You can customize the background picture of LCD panel via Upload BG Image （Size： 600*1024 PNG） Customize Picture and Audio Mask scenario: Enable it, and customize the picture or audio when someone is not wearing the mask;... - Page 18 Click “Add”. The staff information display zone becomes available for editing. Name, workId , ID, photo are mandatory fields. The other fields are optional. Click “Add”. The data will be stored in the client software and local database. Picture Requirement： 1.
-
Page 19: Batch-Adding From File
3.2.2 Batch-adding From file Click Staff Manage -> Staff Info on the left side of control panel. Click “Import from file” and select a pre-edited Excel document of user information. You can refer to the example template document HW_staff.xlsx in configuration tool. Click “Open”... -
Page 20: Delete
if any wrong message of Name and work ID, you can delete this user, then add again. For other info, you can change it directly. On the left side of control panel, click Staff Manage -> Staff Sync , then select the list . Click “Modify”. -
Page 21: Staff Sync
Batch Delete Select multiple users by pressing Ctrl key or select all by pressing Ctrl+A of keyboard. Click “Delete” to delete all users. 3.2.5 Staff Sync On the left side of control panel, click Staff Manage -> Staff Sync. 1. - Page 22 2. Click “Show All Differences”, and click “Compare”. Yellow indicates that information is on the local client but not on the device. Grey indicates that information is on the device but not on the local client. 3. Click “Sync to dev”, and click Sync to device to import users from the local client to the device.
-
Page 23: Clearing Device Users
If there are some info only saving in device, Click “Sync to local”, and click “Sync to local” to import data from the device to the local database. 3.2.6 Clearing Device users On the left side of control panel, click Staff Management -> Staff Sync. Click “Clear Faces”... -
Page 24: Blacklist And White-List
3.2.7 Blacklist and White-list On the left side of control panel, click Staff Manage -> Staff Synchronization -> Blacklist Settings. -
Page 25: Device Access Control Parameters
Select devices. Select users to add to the blacklist or white-list. Click “Add Blacklist” or “Add white-list”. Click “Upload List” to upload the blacklist/white-list to devices. You can click “Read List” to get the list those have been saved in device. Notification: White-list user could turn on the lock of door at any time if you have set the door access control system. -
Page 26: Authority Group
normally closed: the door is closed under normal conditions (always closed when the power is on). Time for door locking: the duration of time for device control 1-255 seconds. 1 second by default. over locking (from opening to automatic locking) when the door You can change it. - Page 27 1. Click “Add new Group” 2. Input the Group name, and “confirm” it. 3. Click “Config Group” 4. Make workday plan and Holiday plan. 5. Move the staff to the current group.
- Page 28 6. Move the device IP address to the current group. 7. Save the Configuration. 8. Release the configuration to device.
-
Page 29: Voice Of Notification
3.3 Voice of notification None: Just temperature display. Means this person has not been registered. Welcome: White-list or in the Authority Group’s staff. No passing: Blacklist staff. Check in Successfully：The normal staff who have registered the info. Please Wear mask: People who not wear the mask, no matter has registered or not. Abnormal body temperature: High temperature alert, no matter this person has registered or not Attention: We suggest let the device run10 minutes in advance, then the accuracy will be better. -
Page 30: Export Attendance Record
A. Just get strangers record. B. Just the first and last record of Register staff 1. Tick “Filter Records” 2. Input the working time and date 3. Click “Filter”, then it will just export the first and last attendance record of staff. 4.2 Export Attendance Record... -
Page 31: Clear Record
1. Click “Export Record”. The client will export data into the Excel document. 2. Find the path information on the left bottom of interface. The default path is the installation folder. 4.3 Clear Record The device will save all records and cover old records, you can clear them. 5. - Page 32 7. How to customize ARFaceManger tool’s Logo. Prepare 120*40 PNG Logo picture, replace the one in Res folder.
