SHO-ME 21.7690 Wiring Instructions

IMPORTANT! This product is

TECHNICAL SPECIFICATIONS

INPUT VOLTAGE .................... 10 to 30 Vdc
INPUT CURRENT ................... 8.75A at 12.8V, 4.25A at 25.6V
INPUT POWER ........................ 112 Watts
OUTPUT POWER .................... 90 Watts
OUTPUT ENERGY................... 80 Joules
FLASH RATES
Double Flash: ................ 170 flashes per minute.
Quad Flash: ................... 140 flashes per minute.
Quintuple Flash: ............ 140 flashes per minute.
Mega Flash:................... 140 flashes per minute.

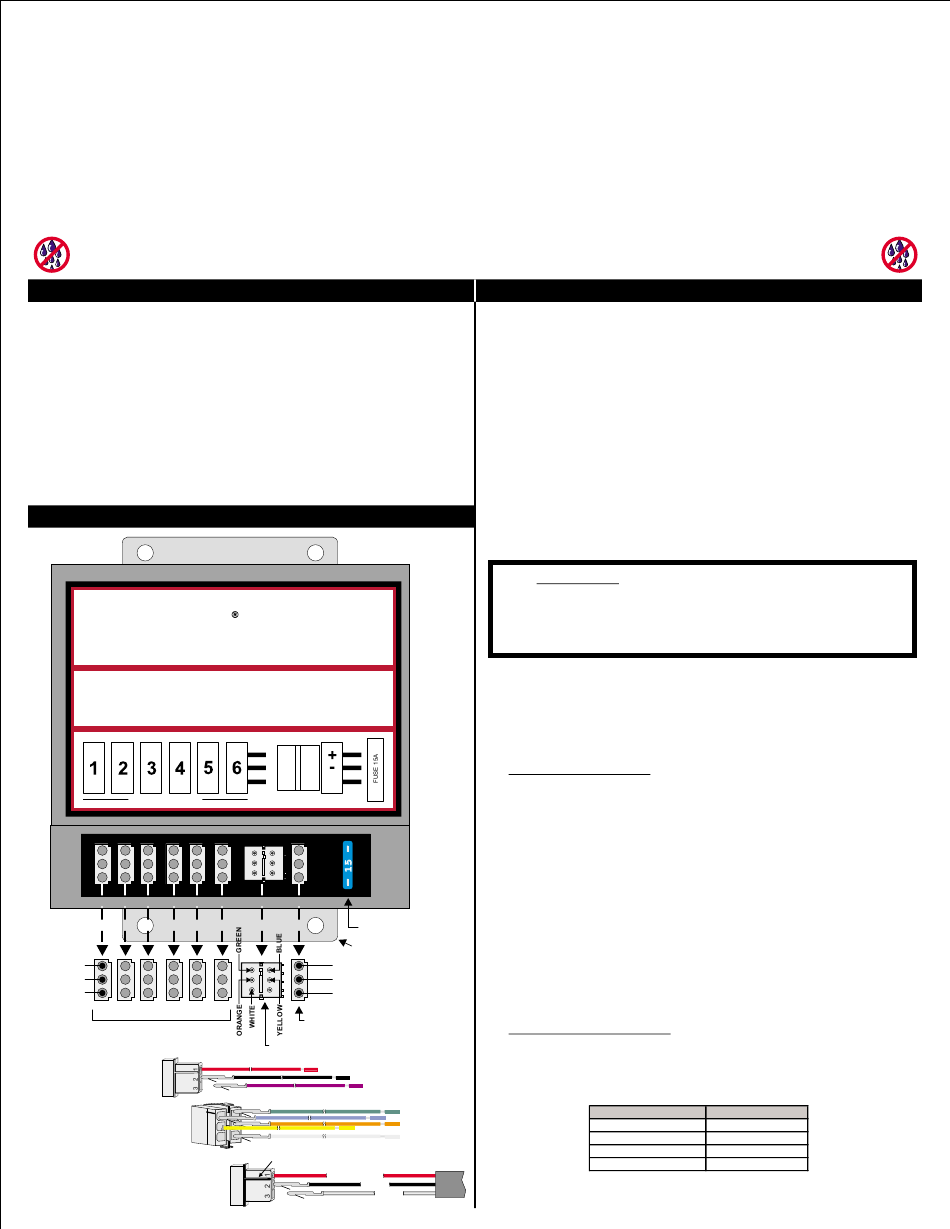

CONNECTION DIAGRAMS
SHO-ME
10 to 30 Vdc
INPUT VOLTAGE: INPUT:
WARNING: High Voltage. Please wait 5 minutes after shutting this
unit off before attempting service. Warranty void if seal is broken.
STROBE OUTLETS
RED or GREEN
BLACK
WHITE
1 2 3 4 5
Strobe Head Outlets
POWER HARNESS
CONTROL HARNESS
STROBE HEAD
EXTENSION CABLE
SHO-ME
MODEL NO. 21.7690
WIRING INSTRUCTIONS
NOT waterproof. It must be mounted to a metal surface in a clean dry area.
MODEL NO. 21.7690
6 OUTLET POWER SUPPLY
MANUFACTURED IN U.S.A.
110 WATTS(8.5A) 90 WATTS
OUTPUT POWER:
RED GREEN BLUE RED
BLACK ORANGE YELLOW BLACK
LOW
WHITE WHITE VIOLET
POWER
CONTROL POWER
FUSE 15 AMP
BASEPLATE
+
RED 10 to 30 Volts
-
BLACK GROUND
VIOLET HIGH/LOW power
Connect to + 10 to 30V for LOW power,
leave disconnected for HIGH power
6
Power Connector
Control Connector
RED
BLACK
VIOLET
BLUE
YELLOW
Ridge indicates pin 1
Heavy duty extension cables have a GREEN wire,
Light duty extension cables have a RED wire.
RED or GREEN
BLACK
WHITE

INSTALLING THE 21.7690

1. Physical Mounting

Mount the power supply in a clean, dry location. Mounting the
unit to a flat metal surface will aid in heat dissipation. Use the
power supply as a template to mark the hole locations. The
mounting holes will accept up to a 1/4" bolt.
supply baseplate must be connected to chassis ground (GND) to
reduce radio interference.

2. Strobe Head installation

Plug the strobe light heads into the outlets. Keep the following in
mind:
• Heads connected to outlets 1, 3, 5 flash at the same time.
• Heads connected to outlets 2, 4, 6 flash at the same time.
• Heads connected to 1, 3, 5 alternate with heads 2, 4, 6.
The output power
installed. Example: 90 Watts into 2 heads = 45 Watts per head.
Consider this before selecting the number and type of strobe
heads to install. Do not exceed the wattage rating of the head.
Note: This supply reduces output power when only 2 outlets are activated.

3. Electrical Hookup

If you have purchased a pre wired switch harness, follow the
included instructions. If you are wiring the system yourself
follow the instructions below and the diagrams on the next page.
POWER HARNESS
• Connect the RED wire to battery positive (+) or a fuse panel
circuit rated for at least 15 AMPS.
• Connect the BLACK wire to battery negative (-) or directly to
vehicle chassis.
Note: Use the correct size wire for power connections.
The length of the wires determines the size needed.
• The VIOLET wire controls HIGH / LOW power. Low power
limits the flash intensity for nighttime use. Connect VIOLET to
+12/24V for LOW, leave VIOLET disconnected for HIGH.
.
CONTROL HARNESS
BLUE : Enables Heads 1 & 2 when connected to +12/24V
GREEN: Enables Heads 3 & 4 when connected to +12/24V
YELLOW: Enables Heads 5 & 6 when connected to +12/24V
WHITE + ORANGE: Selects the Flash Pattern as follows:
GREEN
ORANGE
WHITE
Note: VIOLET, YELLOW, GREEN, BLUE, WHITE, and ORANGE are all
Low Current
®
divides equally between all strobe heads
:
1 to 7 ft. use 18AWG wire.
7 to 14 ft. use 16AWG wire.
14 to 25 ft. use 14AWG wire.
25 to 35 ft. use 12AWG wire.
:
WIRED TO +12/24V FLASH PATTERN
Quad Flash
NONE
Mega Flash
ORANGE
Quintpule Flash
WHITE
Double Flash
WHITE + ORANGE
circuits and can be wired with a minimum of 22AWG wire.
Note: The power
.
