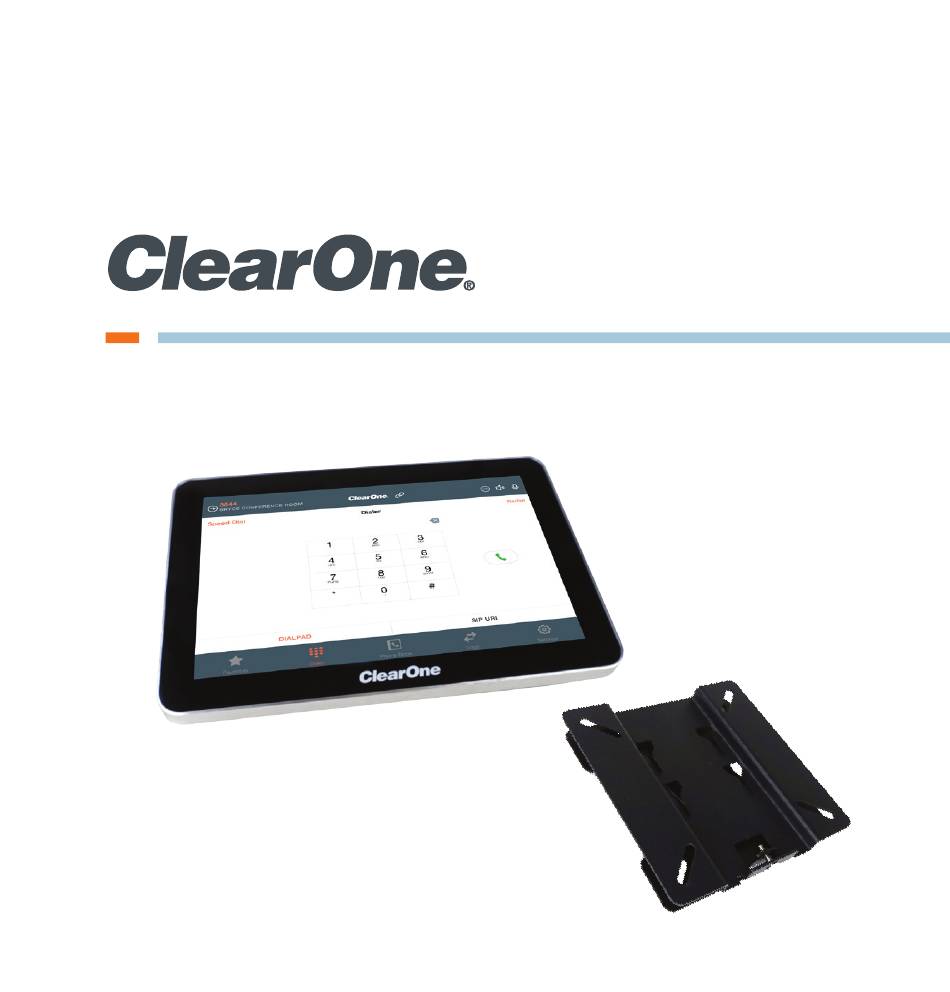

- Page 1 Wall Mount Kit for Touch Panel Controller Installation Guide...
-
Page 2: Table Of Contents
GeTTinG STarTed ............... 1 SKUS USed ................... 2 ConneCTionS ................3 ..........3 owering a ouch anel onTroller ............. 3 ommunicaTion onnecTions Wall MoUnT inSTallaTion ............. 4 ................. 4 arTs eceived ................5 ools equired ............... 6 ounTing rocedure Clearone ConTaCTS.............. 13... -
Page 3: Getting Started
Congratulations on purchasing your CONVERGE Pro 2 (CP2) Touch ® Panel Controller. The ClearOne Touch Panel Controller is a highly intuitive 10-inch, touch-screen device designed for CP2, and allows users to control their audio conference, including managing contacts and placing and controlling calls. -
Page 4: Skus Used
910-3200-501 Touch Panel Controller for CP2 • 910-3200-502 Tabletop Mount Kit • 910-3200-503 Wall Mount Kit • 910-3200-504-50 Serial RS232 DB9 Male to Female cable – 50 ft. • 910-3200-504-100 Serial RS232 DB9 Male to Female cable – 100 ft. -
Page 5: Connections
Wall Mount InstallatIon GuIde Wall MoUnT inSTallaTion GUide ConneCTionS This section explains the connections made in Touch Panel Controller installations. owering a ouch anel onTroller The Touch Panel Controller can be powered by: • included power adapter • standard PoE injector or PoE Ethernet switch •... -
Page 6: Wall Mount Installation
Touch Panel conTroller Wall MoUnT inSTallaTion Parts received The following parts are delivered with the Wall Mount Kit: QTY 4 QTY 4 QTY 4 #8-15 x 1-1/2” wood screw TPEN-10 anchor Flat washer for #8 screw QTY 1 QTY 1 QTY 1 Controller Mount Plate Security Screw... -
Page 7: Tools Required
Verify that you have all the parts required to complete your installation. When you open the shipping package(s) for the first time, please check that all items purchased are included. If any of the items (according to your customer order) are missing or damaged, contact your ClearOne distributor immediately. Tools required The following tools may be required for Wall Mount installation of the Touch Panel Controller. -
Page 8: Wall Mounting Procedure
Touch Panel conTroller Wall Mounting Procedure A wall-mounted Touch Panel Controller must be placed at eye level on a wall facing the intended conference participants. The Wall Mount Plate can be mounted to either a solid or hollow wall. Controller Mounting Plate Wall Mounting Plate To be attached to the Touch Panel Controller To be attached to the wall... - Page 9 Locate and mark for drill holes where the Wall Mounting Plate will attach to the wall. Use the following dimensions for the drill holes: 75mm 100mm...
- Page 10 Touch Panel conTroller noTe: If you are using a third-party mount, you must use a standard VESA 75 mount (mounting holes are 75mm apart). Drill holes to receive the anchors. noTe: Take care while drilling and installing the anchors so the wall material does not tear out and weaken the attachment.
- Page 11 Attach the Controller Mount Plate to back of the Touch Panel Controller with screws already in the Touch Panel Controller. You can adjust the position of the plate to be lower or higher on the controller, but ClearOne recommends installing the Wall Mount Plate on the upper set of threads (red outline).
- Page 12 Touch Panel conTroller Fasten the Controller Mount Plate (installed on the controller) onto the Wall Mount Plate with fastening hooks face down.
- Page 13 Wall Mount InstallatIon GuIde Insert the security screw into the hole securing the mount plates. Tighten the screw with the #1 Phillips screwdriver. Assembled Wall Mount Bottom View...
- Page 14 Touch Panel conTroller Assembled Wall Mount Wall Mount Side Assembled Wall Mount Controller Mount Side...
-
Page 15: Clearone Contacts
Salt Lake City, UT 84116 Fax: 801.303.5711 international Sales Tel: +1.801.975.7200 Tel: 801.975.7200 e-mail: global@clearone.com e-mail: sales@clearone.com TechSupport Tel: 801.974.3760 e-mail: tech.support@clearone.com © 2017 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. DOC-0321-001 Revision 1.0 APRIL 2017...
