Quinton X12+ Quick Reference Card

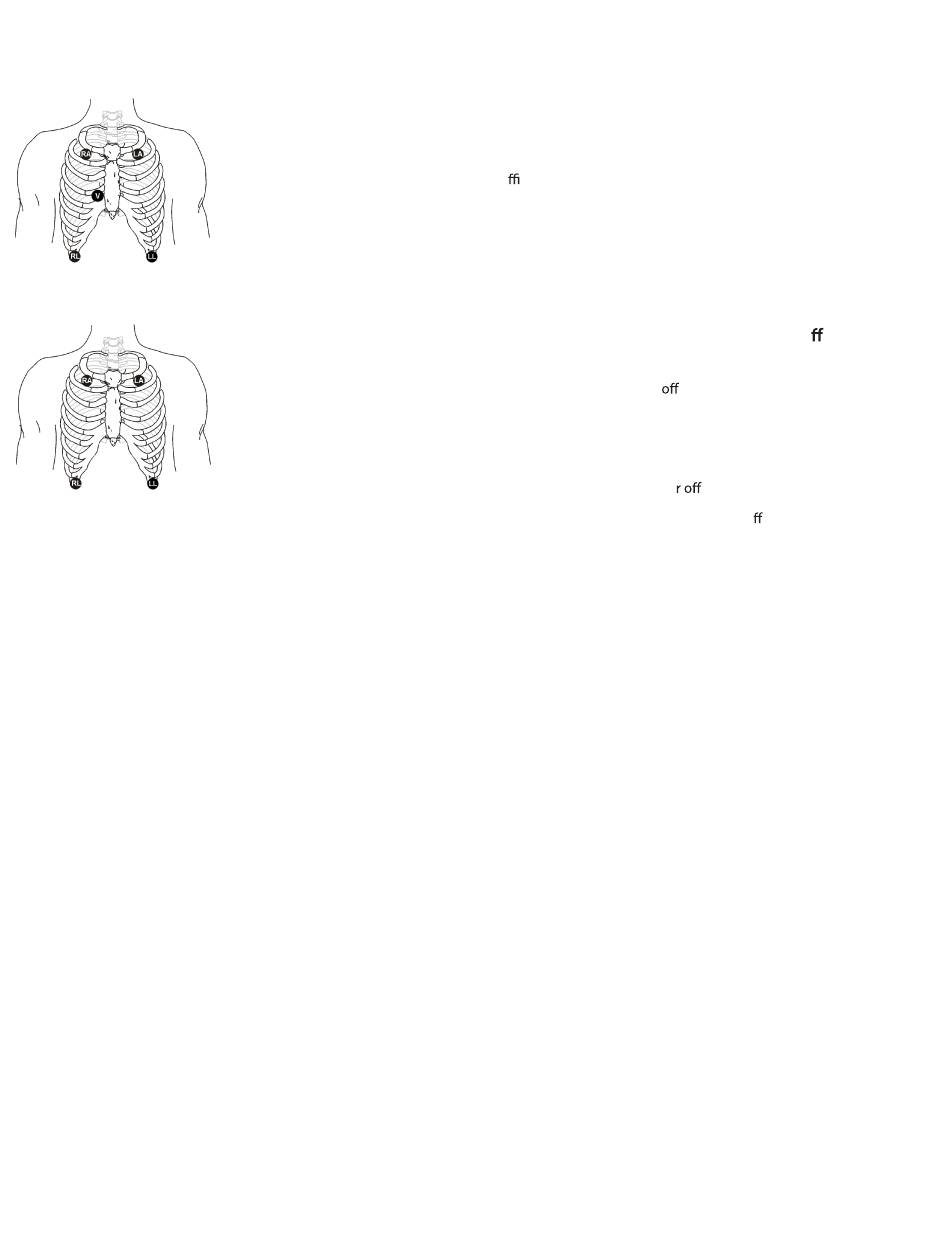

5-Channel Hook-up
4-Channel Hook-up
X12+ Telemetry Transmitter Quick Reference Card
Hookup Instructions
1. Shave all electrode sites.
2. Wipe oil from electrode sites with alcohol prep
pad provided.
3. Remove dead skin layer from electrode sites
with abrasive cleaner provided. Two to three
moderate rubs at each site should be su cient.
4. Snap lead wires onto electrode snaps.
5. Peel single electrode from backing strip and
apply to prepared electrode sites individually.
Apply pressure to outer edge and inner ring to
secure. See diagrams at left for electrode
placement.
6. Run the lead check function to check the
impedance of each lead. See reverse of this
card for directions.
Call Signal
To send a CALL signal, press any one of the three
keypad keys. A CALL indicator will appear on the
LCD display to notify the user that a CALL signal
has been transmitted.
Changing Batteries
1. Position the X12+ Transmitter with its back facing
you.
2. Press down on the battery door arrow symbol and
slide the battery door away from the transmitter.
Remove old battery.
3. Insert one AA alkaline battery into the battery
compartment. Align the positive (+) and negative (-)
indicators of the battery with the designators above
the battery compartment. The X12+ will power on
automatically when the battery is inserted.
4. Replace the battery door by placing it back in the
same position as step 2 and sliding it until it snaps
into place.
Power On/O
The X12+ will power up as soon as an AA battery has
been inserted into the battery compartment. If the X12+
was turned after its last use, the user has two options
to power the X12+ on:
• Remove and re-insert the AA alkaline battery, or
• Press and hold the Up/Right arrow key on the front
of the X12+ transmitter. The X12+ will power up and
display the main LCD menu within three seconds.
You can powe the X12+ Transmitter by removing the
battery or by pressing and holding the Enter key for
three seconds. A "Power O " prompt will appear. Press
the Up/Right or Down key to highlight Yes . Press the
Enter key.
