Page 1

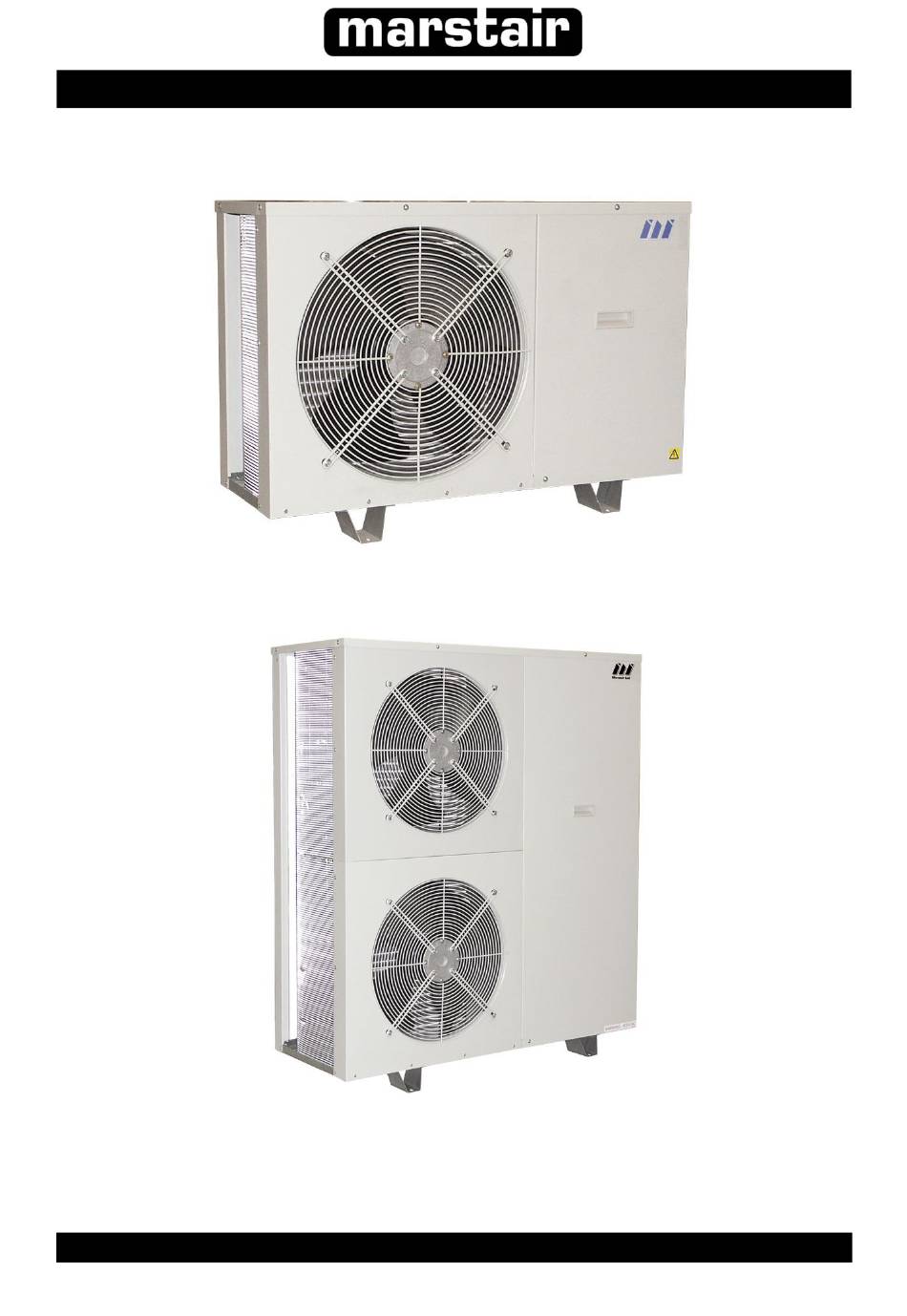

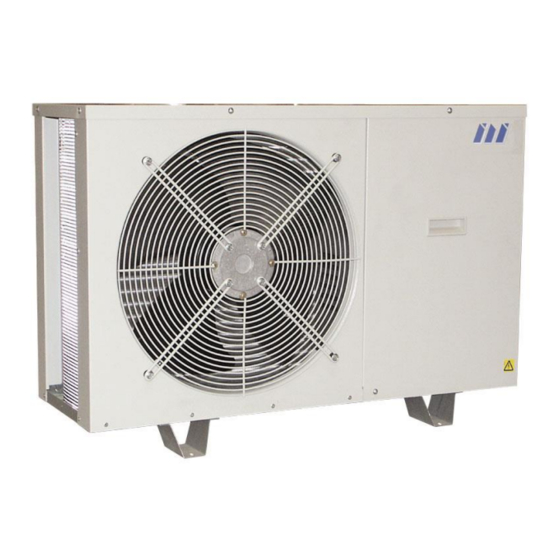

INSTALLATION INSTRUCTION 550 SERIES CONDENSING UNITS AND 551 SERIES HEAT PUMP OUTDOOR UNITS 55008279-16...
Page 2
GENERAL TEV Ltd recommend that personnel working on this equipment be skilled and fully conversant with the appropriate Air Conditioning, Refrigeration and Electrical practices and have sound knowledge of current Industrial Safe Working practices. These units are supplied pre-charged with R407C refrigerant and polyolester oil. Do not open the valves until the system is fully installed.
Page 5
CALCULATING EQUIVALENT LENGTHS The effects of bends and fittings must be taken into account. The table on top of page 5 covers the fittings most likely to be encountered in installation. ACTUAL PIPE LENGTH + TOTAL EQUIVALENT FITTING LENGTHS = TOTAL EQUIVALENT LENGTH FITTING LOSSES in equivalent straight lengths of pipes (m) INSTALLERS TABLE PIPE SIZE (outside diameter in inches)
RESTRICTORS Outdoor units (cool only & heat pumps) are supplied with expansion assemblies and cooling restrictors fitted. MCU+ Restrictor 0.033 0.033 0.040 0.044 0.046 0.050 0.052 0.057 0.063 0.068 0.071 0.080 0.082 HEAT PUMP HEATING All heat pump units have an additional expansion assembly supplied loose inside the unit. This is to be fitted to some indoor units for heating.
Page 7
ELECTRICAL The installer supplies mains, control and interconnecting cables: equipment must be earthed. Wiring must be carried out in accordance with local and national codes. Interconnecting wiring diagrams are in the indoor unit installation instructions. Mains supply cables must be size compatible with the recommended fuse (see indoor unit instructions). An all pole isolator switch should be positioned within easy reach of the indoor unit.
Page 8
REFRIGERANT IF NO ADDITIONAL REFRIGERANT CHARGE IS REQUIRED: Open the valves very slowly using a 5 or 8mm Allen key. On MHPUE units, remove link JP6 on the pcba (identified by a white label), otherwise the fan will always run at maximum speed and the infrared handset will be inoperative.
Page 9
a. With the system switched off, connect a high pressure gauge to the liquid line service valve. b. Switch on the system, indoor fan set to high speed, and run for a few minutes to stabilise. c. The head pressure should be approximately: R407C: 275-280 psig (18.9-19.6barg) to achieve this adjust the screw clockwise to increase pressure or anticlockwise to decrease.
