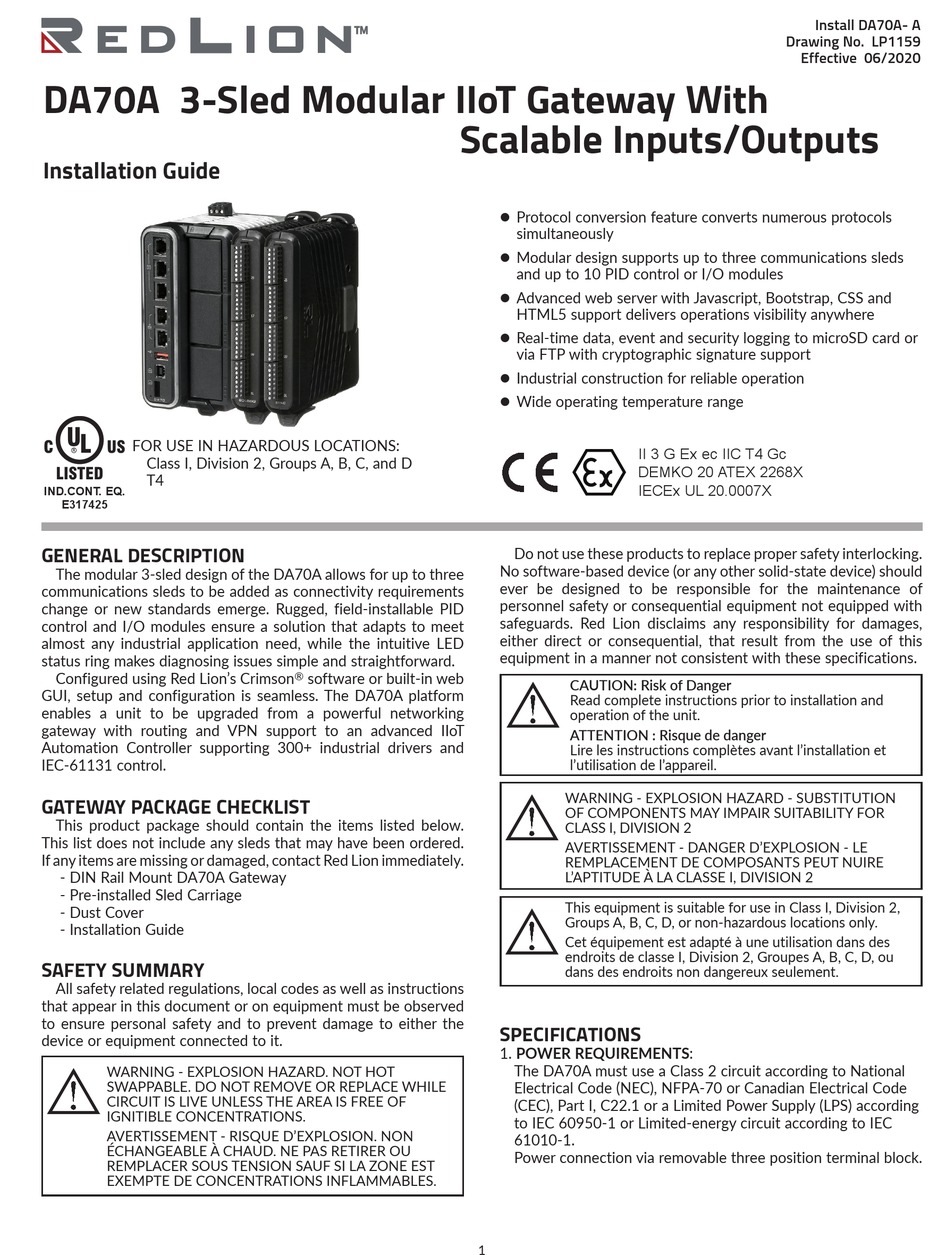

red lion DA70A Installation Manual

DA70A 3-Sled Modular IIoT Gateway With
Installation Guide
U L
FOR USE IN HAZARDOUS LOCATIONS:
C C US US
R
Class I, Division 2, Groups A, B, C, and D
LISTED
T4
IND.CONT. EQ.
E317425
GENERAL DESCRIPTION

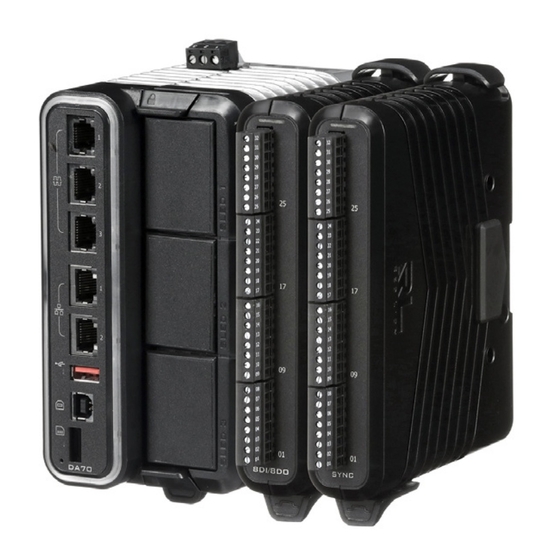

The modular 3-sled design of the DA70A allows for up to three
communications sleds to be added as connectivity requirements
change or new standards emerge. Rugged, field-installable PID
control and I/O modules ensure a solution that adapts to meet
almost any industrial application need, while the intuitive LED
status ring makes diagnosing issues simple and straightforward.
Configured using Red Lion's Crimson
GUI, setup and configuration is seamless. The DA70A platform
enables a unit to be upgraded from a powerful networking
gateway with routing and VPN support to an advanced IIoT
Automation Controller supporting 300+ industrial drivers and
IEC-61131 control.
GATEWAY PACKAGE CHECKLIST
This product package should contain the items listed below.
This list does not include any sleds that may have been ordered.
If any items are missing or damaged, contact Red Lion immediately.
- DIN Rail Mount DA70A Gateway
- Pre-installed Sled Carriage
- Dust Cover
- Installation Guide
SAFETY SUMMARY
All safety related regulations, local codes as well as instructions
that appear in this document or on equipment must be observed
to ensure personal safety and to prevent damage to either the
device or equipment connected to it.
WARNING - EXPLOSION HAZARD. NOT HOT
SWAPPABLE. DO NOT REMOVE OR REPLACE WHILE
CIRCUIT IS LIVE UNLESS THE AREA IS FREE OF
IGNITIBLE CONCENTRATIONS.
AVERTISSEMENT - RISQUE D'EXPLOSION. NON
ÉCHANGEABLE À CHAUD. NE PAS RETIRER OU
REMPLACER SOUS TENSION SAUF SI LA ZONE EST
EXEMPTE DE CONCENTRATIONS INFLAMMABLES.
Scalable Inputs/Outputs
software or built-in web
®
z Protocol conversion feature converts numerous protocols
simultaneously
z Modular design supports up to three communications sleds
and up to 10 PID control or I/O modules
z Advanced web server with Javascript, Bootstrap, CSS and
HTML5 support delivers operations visibility anywhere
z Real-time data, event and security logging to microSD card or
via FTP with cryptographic signature support
z Industrial construction for reliable operation
z Wide operating temperature range
II 3 G Ex ec IIC T4 Gc
DEMKO 20 ATEX 2268X
IECEx UL 20.0007X
Do not use these products to replace proper safety interlocking.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
personnel safety or consequential equipment not equipped with
safeguards. Red Lion disclaims any responsibility for damages,
either direct or consequential, that result from the use of this
equipment in a manner not consistent with these specifications.
CAUTION: Risk of Danger
Read complete instructions prior to installation and
operation of the unit.
ATTENTION : Risque de danger
Lire les instructions complètes avant l'installation et
l'utilisation de l'appareil.
WARNING - EXPLOSION HAZARD - SUBSTITUTION
OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2
AVERTISSEMENT - DANGER D'EXPLOSION - LE
REMPLACEMENT DE COMPOSANTS PEUT NUIRE
L'APTITUDE À LA CLASSE I, DIVISION 2
This equipment is suitable for use in Class I, Division 2,
Groups A, B, C, D, or non-hazardous locations only.
Cet équipement est adapté à une utilisation dans des
endroits de classe I, Division 2, Groupes A, B, C, D, ou
dans des endroits non dangereux seulement.
SPECIFICATIONS
1. POWER REQUIREMENTS:
The DA70A must use a Class 2 circuit according to National
Electrical Code (NEC), NFPA-70 or Canadian Electrical Code
(CEC), Part I, C22.1 or a Limited Power Supply (LPS) according
to IEC 60950-1 or Limited-energy circuit according to IEC
61010-1.
Power connection via removable three position terminal block.
1
Install DA70A- A
Drawing No. LP1159
Effective 06/2020
