Corporate Headquarters:
141 Rodeo Drive
Edgewood, NY 11717
Phone: 631.789.5000
Fax: 631.789.5063
Toll Free: 888.844.4720
sales@tiitech.com
Installation Guide
FDH6 MODULAR SC SERIES
Models:

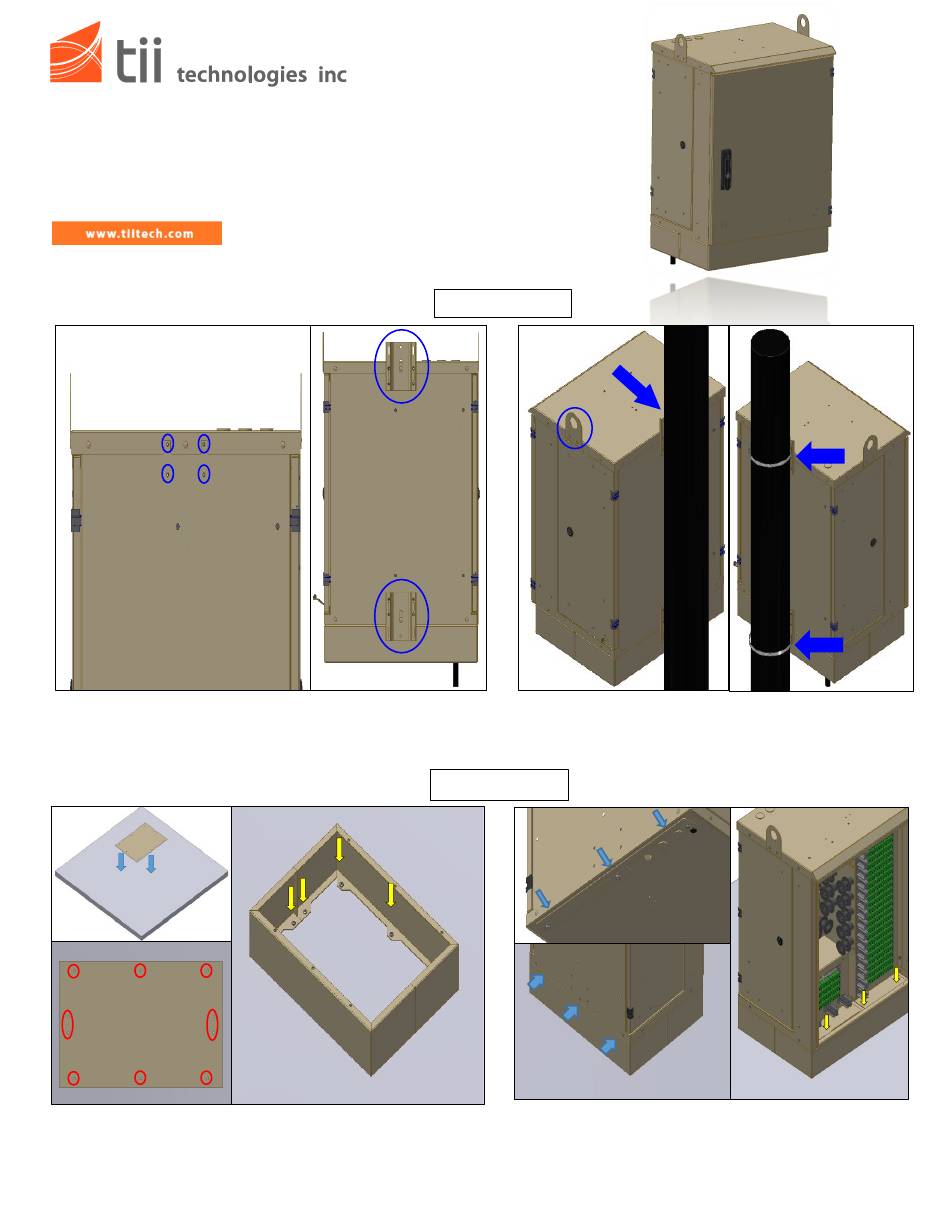

1a. Attach the pole mounting brackets on the indicated
threaded holes.
1b. Use provided template to drill concrete pad and install
anchors in the right locations. Attach cabinet base to
previously installed anchors. Holes on mounting base can
accommodate 3/8" or 5/16" mounting bolts.
P/N 92252003 • Rev 01 • 2/21/19
POLE MOUNTING
2a. Hoist the cabinet from the two lifting brackets.
Secure to pole with steel straps or use bolt thru existing
mounting hole on bracket.
PAD MOUNTING
2b. Slide cabinet over mounting base so the bracket on
the back of the cabinet engages the lip of the base, and
then secure with 3 screws from inside the cabinet as
indicated above.
Advertisement
Summary of Contents for TII network technologies MODULAR SC Series
- Page 1 Phone: 631.789.5000 Fax: 631.789.5063 Toll Free: 888.844.4720 sales@tiitech.com Installation Guide FDH6 MODULAR SC SERIES Models: POLE MOUNTING 2a. Hoist the cabinet from the two lifting brackets. 1a. Attach the pole mounting brackets on the indicated Secure to pole with steel straps or use bolt thru existing threaded holes.
- Page 2 3. Open left side door with 3-16 tool. 4. Bring grounding cable thru the hole provided on the bottom of cabinet, and securely fix to grounding bar. 5. Pull on mounting pin (located on the 6. Insert feeder cable thru small cable port, tighten external nut, secure far side behind the cassette), and remove jacket with hose clamp and fix strength member as indicated.
- Page 3 7. Make all required fusion splices inside feeder cassette. 8. Store feeder cable slack on provided cable management clips. Mount feeder cassette back and secure in place with push 9. Insert distribution cable thru large 10. Lay strength member on back panel and cable port, tighten external nut and clamp with provided bracket.
- Page 4 11. Bring all fiber tubes out thru right side door. 12. Remove distribution cassette towards the back by pulling on the mounting pin (located on the far side behind the cassette). 14. Store distribution cable tubes on provided 13. Make all required fusion splices inside management clips.
- Page 5 15. Open front door with 5/16 tool. 16. Install splitters from right to left slots. Open straps, insert splitter by pushing it against mounting support until it snaps in. Secure with straps and route feeding leg thru indicated clips and connect to appropriate port on feeding cassette. 17.
- Page 6 18. Insert storage foam block from left side and then push right side into metal nest on cabinet 19. Store unused splitter legs using the provided management clips as indicated above.
