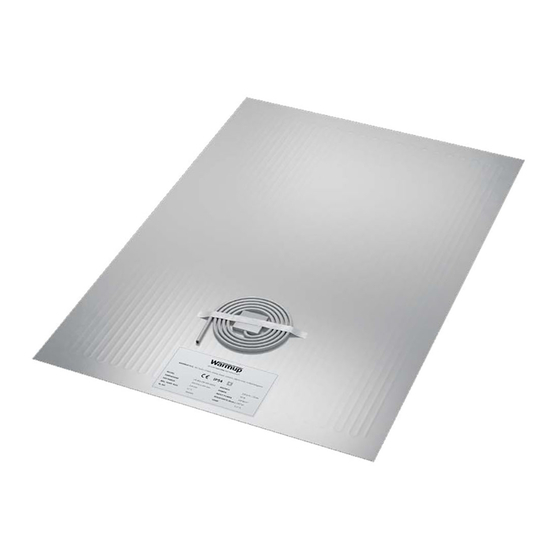

Summary of Contents for Warmup Mirror Demister
- Page 1 Installation Manual Mirror Demister Technical Helpline 0345 345 2288 Bathroom Heating IMPORTANT! Please read this manual before attempting to install your Warmup product. Complete and submit your warranty form online at www.warmup.co.uk...
- Page 2 The world’s best-selling floor heating brand™ Over 2 million installations in more than 60 countries Experience MyHeating ™ Download now for iOS and Android Unique to Warmup: SmartGeo ™ Smarter geo-fencing. Reduce energy usage by up to 25% ™ EasySwitch...
-
Page 3: Table Of Contents
Layout Plan ................17 Technical Specifications ............18 WARNING Your Warmup® Mirror Demister has been designed so that installation is quick and straight forward, but as with all electrical systems, certain procedures must be strictly followed. Warmup plc, accepts no... -
Page 4: Components Required For Installation
Components Required for Installation Components available from Warmup Warmup Mirror Demister Additional components needed as part of your Warmup heating installation: 30 mA Residual Current Device (RCD), required as part of all installations. Digital Multi-meter required for testing the resistance of the mirror demister. -
Page 5: Do's & Don'ts
Do’s & Don’ts Install the Warmup Mirror Demister in line with these instructions. The demister is designed to warm bathroom mirrors only. Ensure that the control card at the back of the manual is completed and fixed at the consumer unit as per the current edition of BS 7671. -
Page 6: Step 1 - Electrical Supply
Zones 0 or 1. This mirror demister has an IP rating of IP54 and is suitable for installation within Zone 2, Zone 3 or outside of any Zones. All electrical connections must conform to the current BS 7671 Wiring Regulations. -
Page 7: Step 2 - Layout Planning
Layout Planning Before you begin • The demister must not be • Determine the location of the mirror demister, marking its cut, shortened, punctured or creased, however the supply intended position of the on the wall. cable may be shortened if required. -
Page 8: Step 3 - Apply Mirror Demister
Page 16. be clean, dry and free from grease, detergents or polish. • Stop installation immediately and contact Warmup if its resistance falls outside the range set out in the Reference Resistance Band table on Page 18. -
Page 9: Step 4 - Make Electrical Connection
Step 4 - Make Electrical Connection The Warmup Mirror Demisters electrical connection must conform to the current BS 7671 Wiring Regulations. Final connections to the main electricity supply MUST be completed by a Part P qualified electrician. • Channel out a recess in the •... - Page 10 RCD or RCBO Max. 5A Fused Isolator Switch Mirror Demister • The Warmup Mirror Demister can be connected into the rooms lighting circuit, enabling the demister when the lights are switched 30 mA RCD or RCBO Max. 5A Fused Isolator Controller...
-
Page 11: Step 5 - Mount The Mirror
NOTE: Alterations or cuts are made to the mirror may cause cracking when installed in conjunction with the Warmup Mirror Demister and are not recommended. Alterations include: • A rectangular hole for a switch, outlet, or other appliance. -
Page 12: Troubleshooting
Measure the Mirror resistance of the Demister mirror demister. Is has been the resistance in line damaged and with the values on may need Page 18. replacing. If you can feel heat... -
Page 13: Performance Troubleshooting
1. Old mirrors may not be suitable for use with Warmup Mirror Demisters. cracked. Before applying a mirror demister to any mirror, its suitability with a demister should be checked with the mirror manufacturer. 2. Check that there is suitable expansion space... -
Page 14: How To Test The Mirror Demister
If you do not get the expected results or at any time you believe there may be a problem, please contact Warmup’s Technical Team for guidance. -
Page 15: Warranty
This guarantee applies: 1. Only if the unit is registered with Warmup within 30 days after purchase. Registration can be completed online at www.warmup.co.uk. In the event of a claim, proof of purchase is required, so keep your invoice and receipt - such invoice and receipt should state the exact model that has been purchased;... -
Page 16: Control Card
Date Signed Company stamp/name This form must be completed as part of the Warmup Guarantee. Ensure that the values are as per the instruction manual. This card along with a plan showing the demister position must be situated close to the consumer unit in a visible place. -
Page 17: Layout Plan
Layout Plan NOTE: Draw a plan showing the location of the demister(s) on the back of the mirror... -
Page 18: Technical Specifications
Technical Specifications TECHNICAL SPECIFICATIONS - Warmup Mirror Demisters OPERATING VOLTAGE 230 V AC : 50 Hz IP RATING IP54 ELECTRICAL CLASS Class II THICKNESS 0.4 mm AVERAGE 25 °C TEMPERATURE RISE INPUT POWER 200 W/m² CONNECTION 1.5 m LONG “COLDTAIL” CONNECTION... - Page 19 Notes ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________...
- Page 20 Web: www.warmup.co.uk Email: uk@warmup.com Tel: 0345 345 2288 Fax: 0345 345 2299 The WARMUP word and associated logos are trade marks. © Warmup Plc. 2019 – Regd. TM Nos. 1257724, 4409934, 4409926, 5265707. E & OE. Bathroom www.warmup.co.uk Heating Warmup - IM - Demister - V1.1 2019-04-10...
