Summary of Contents for dresden elektronik RaspBee Series

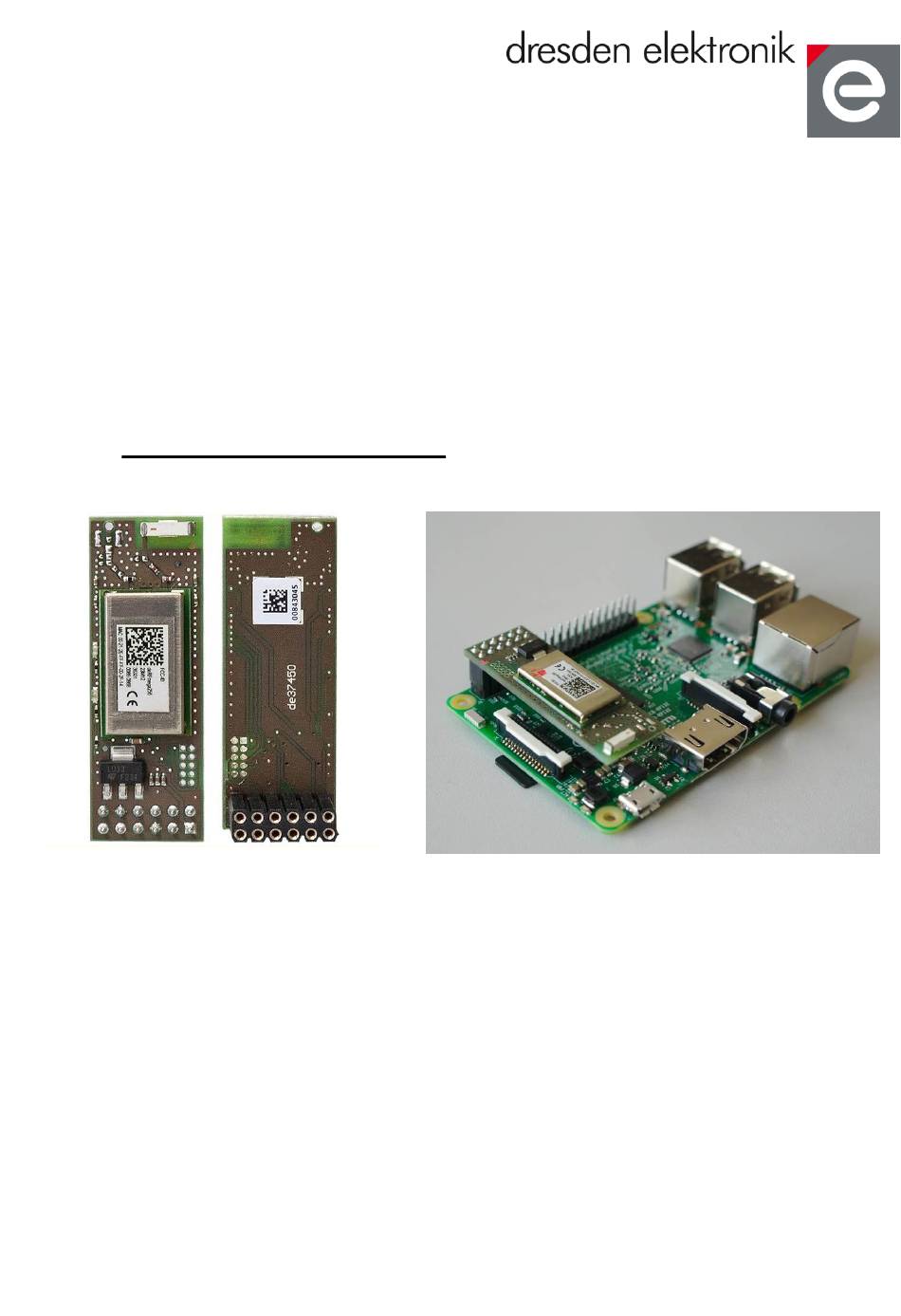

- Page 1 User Manual RaspBee Document Version V1.6 2017-12-10...
-
Page 2: Table Of Contents
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 Table of contents Overview ......................... 6 Applications ........................6 Features .......................... 6 3.1. Short facts ......................6 3.2. How does the RaspBee work? ................7 Quick start ........................8 4.1. Content of delivery....................8 4.2. - Page 3 User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 Technical data ....................... 15 Mechanical size ......................18 9.1. Dimensions ......................18 9.2. Housing ........................ 18 10. Pin assignment ......................19 11. Hardware modifications ....................20 11.1. Assemble the service header ................21 11.2.
- Page 4 User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 Document history Date Version Description 2013-07-22 Initial version 2013-09-09 Update of radio certification section due to successful passed certification Availability of basic variant included 2016-04-04 Including support of RPi2 and RPi3 RaspBee basic is obsolete 2016-04-04 Update Raspbian Jessie UART configuration...
- Page 5 User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 Abbreviations Abbreviation Description IEEE 802.15.4 Communication standard, applicable to low-rate Wireless Personal Area Networks (WPAN) Consumer Electronics ETSI European Telecommunications Standards Institute Federal Communications Commission GPIO Generals Purpose Input Output JTAG Joint Test Action Group, digital interface for debugging of embedded devices, also known as IEEE 1149.1 standard interface...
-
Page 6: Overview
ZigBee network control and monitoring. Basically, the RaspBee is a reference design for the ZigBee radio module deRFmega256- 23M12 by dresden elektronik. 2. Applications Mainly the RaspBee is designed to handle ZigBee 3.0, ZigBee Light Link (ZLL) and ZigBee Home Automation (ZHA) applications in connection with the RaspBee ZigBee firmware and RPi software deCONZ. -
Page 7: How Does The Raspbee Work

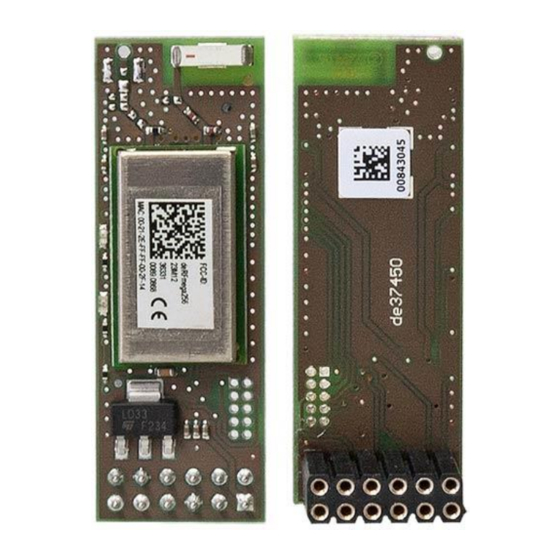

RaspBee is used on other base boards than the RPi. The onboard placed radio module deRFmega256-23M12 by dresden elektronik contains an 8-bit AVR microcontroller with an integrated low-power 2.4 GHz transceiver for ZigBee and IEEE 802.15.4 applications. -
Page 8: Quick Start
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 Communication between RPi and RaspBee is established via UART interface by using a proprietary protocol. The application protocol frames which are used by the deCONZ application to communicate with the microcontroller are encapsulated in the Serial Line Internet Protocol (SLIP). -
Page 9: Requirements
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 1x Instruction leaflet 4.2. Requirements The RaspBee is designed to work on a Raspberry Pi. In general all actual available types of RPi will work with the RaspBee. However we recommend RPi type B, RPi2 and RPi3 with assembled Ethernet components. -
Page 10: Preconfigured Image
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 Figure 3: RPi user header Notes: Double check that the header is NOT shifted inadvertently since this may damage the RaspBee board irreversible. Do not connect the RaspBee if the RPi is powered since this will cause a restart of the host device. -
Page 11: Deconz On Rpi
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 6.1. deCONZ on RPi deCONZ is a powerful program which allows the configuration, operation, monitoring and maintenance of ZigBee networks. 6.1.1. Installation 1. Download deCONZ software package: $ wget http://www.dresden-elektronik.de/rpi/deconz/deconz- latest.deb 2. -
Page 12: Autostart Deconz Headless On Boot
ZigBee firmware settings, NV-section containing i.e. MAC address) unless you are absolutely sure what you are doing. Please also note that dresden elektronik will neither provide firmware images of the bootloader nor support restoring the bootloader or EEPROM once overwritten. -
Page 13: Flash Firmware File
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 $ sudo GCFFlasher The available commands are: force device reset without programming -f <firmware> flash firmware file -d <device> device to use -sn <serial> FTDI device with serial number to use list devices -h -? print this help... -
Page 14: Led User Interface
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 0xCE Fuse low byte 7. LED user interface The LED user interface consists of a red and a green low-active low-current LED. They show the actual status of the RaspBee board (Table 3). Table 3: LED status LED status Application... -
Page 15: Technical Data
8. Technical data The RaspBee contains the 2.4 GHz IEEE 802.15.4 radio module ‘deRFmega256-23M12’ by dresden elektronik. A detailed description of the module’s characteristics and properties can be found in the radio module user manual [4]. Table 4: Mechanical data... - Page 16 User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 Table 7: Electrical characteristics Electrical characteristics Value Descriptor Parameter Max Unit Supply voltage Output voltage Supply current =5.0 V 15.8 in_trxoff =5.0 V, TX_PWR=0x0 213.7 in_txon =5.0 V, TX_PWR=0x6 168.2 =5.0 V, TX_PWR=0xF 55.1 =5.0 V, Max.
- Page 17 User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 Absolute TX power POUT Vin=5.0 V, TX_PWR=0x0 20.9 Vin=5.0 V, TX_PWR=0x6 19.6 Vin=5.0 V, TX_PWR=0xF Receiver sensitivity SENS Data Rate = 250 kBit/s -105 Data Rate = 500 kBit/s -101 Data Rate = 1000 kBit/s Data Rate = 2000 kBit/s Data rate (gross)
-
Page 18: Mechanical Size
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 9. Mechanical size 9.1. Dimensions The RaspBee board (Figure 4) has a length of 48.0 mm, a width of 16.5 mm and a height of 12.0 mm (including socket for RPi). Figure 4: Mechanical size 9.2. -
Page 19: Pin Assignment
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 10. Pin assignment This section lists all available signals and their function on the RaspBee. Note: The signal NC means Not Connected. Table 10: Signal pin description Signal pin description Radio module pin Signal Function... -
Page 20: Hardware Modifications
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 UART RX UART TX GPIO for RaspBee RESET Reset signal for RaspBee Service socket JTAG (not assembled) JTAG 3.3 V generated internally JTAG RESET Reset signal for RaspBee 3.3 V generated internally JTAG 11. -
Page 21: Assemble The Service Header
Modification of the pre-allocated EEPROM memory sections or removal of the pre-installed bootloader will irreversibly preclude restoring, booting or upgrading the shipping firmware at all. dresden elektronik will neither support such modifications (see Section 6.2 for details). 11.2. Using an external antenna External antennas will be often used if an improved radio characteristics performance is needed or the device is put into a metallized enclosure. -
Page 22: Radio Certification
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 Notes: The use of antenna types other than the listed approved antennas will cause in loss of the FCC certification. Regard the notes in Section 12.3 to work with a custom antenna in respect of CE and FCC requirements. The pre-installed ZigBee firmware does not support the 2 antenna port. -
Page 23: Approved Antenna List
+5dBi (peak) 17013.RSMA WiMo Rubber antenna U.FL-to-RP-SMA -0.5dB BN-023769 dresden elektronik pigtail, 15 cm Integrated antenna 2400 to 2483.5 MHz +1.3dBi (peak) 2450AT43B100 Johanson Technology Chip antenna According to KDB 178919 it is allowed to substitute approved antennas through equivalent antennas of the same type: ‘Equivalent antennas must be of the same type (e.g., yagi, dish, etc.), must be of... -
Page 24: Packaging Dimension
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 14. Packaging dimension Default package size: 138 x 90 x 29 mm (LxWxH). One package contains one RaspBee unit. 15. Revision notes Actually no design issues are known. www.dresden-elektronik.de Page 24 of 27... -
Page 25: References
User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 References [1] ZigBee Light Link, URL: http://www.zigbee.org/zigbee-products-2/ [2] User Manual deCONZ; URL: https://www.dresden-elektronik.de/funktechnik/service/downloads/documentation/ [3] Quick Start Guide Wireless Light Control, URL: https://www.dresden- elek- tronik.de/funktechnik/service/download/documentation/?L=1&eID=dam_frontend_push& docID=4621 [4] User Manual deRFmega256 radio modules; URL: http://www.dresden- elektronik.de/funktechnik/service/downloads/documentation/?eID=dam_frontend_push&... - Page 26 This note is provided as-is and is subject to change without notice. Except to the extent prohibited by law, dresden elektronik ingenieurtechnik gmbh makes no express or implied warranty of any kind with regard to this guide, and specifically disclaims the implied warranties and conditions of merchantability and fitness for a particular purpose.
- Page 27 User Manual RaspBee – ZigBee addon board Version 1.6 2017-12-10 than the purchaser’s personal use, without the written permission of dresden elektronik ingenieurtechnik gmbh. Copyright © 2017 dresden elektronik ingenieurtechnik gmbh. All rights reserved. www.dresden-elektronik.de Page 27 of 27...
