Ortega SEA DEVIL User Manual

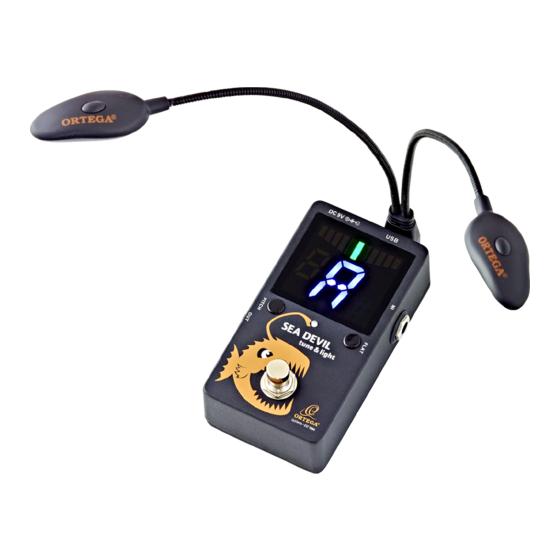

SEA DEVIL | CHROMATIC TUNER
1.To avoid short circuit electric shock or malfunction ：
Do not disassemble for repair.
Do not place in high temperature and humid space such as electric
heater,direct sunlight,bathroom,wet floor etc.
Do not place in excessive vibration.
Do not place in dusty or dirty space.
Do not operate the tuner with wet hands.
2.To avoid breakdown
Do not handle all controls with excessive power.
Do not drop the tuner.
3.Cleaning
Do not use thinner or alcohol for cleaning.
Use only dry and clean cloth.
4.Power supply
Use only 9V ：6F22/DC adapter
*Imorptant notice:
Manufacturers and sellers are not responsible for misuse, damages and negligence in use of this product.
APPEARANCE AND SKETCH
⑥
④
⑧
PITCH
FLAT
Features & Functions
1) FOOT switch
Pressing this switch will turn the tuner on/off.
2) INPUT jack
Connect the output cord of the instrument to the input jack of tuner.When a
battery is uesd ,the input jack also functions as a power switch.When a plug is
inserted into the input jack,the power will be turned on .When the plug is
pulled out ,the power will be turned off.When you are not using the tuner,pull
the plug out of the input jack.
3) DC 9V in jack
If a DV adapter is used,you will be able to play for extended periods without
worrying about battery life.
4) OUTPUT jack
Connect your Amp or another effect unit to this jack.
When the tuner is off,this will output the signal of the instrument connected to
the input jack.
When the tuner is on,no sound will be ouput from this jack so use this jack if
you wish to tune silently.
www.ortegaguitars.com
USER'S MANUAL
Caution
Note accuracy
indication
⑤
②
Note display
⑦
③
①
